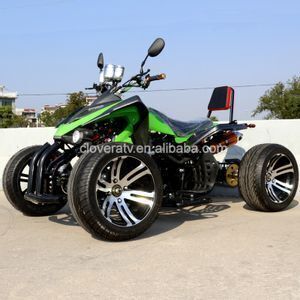

Petrol Powerful Road Legal Kawasaki Racing Quad 350CC ATV with EEC COC

Click here to contact

Product details

Warranty:	24 Month;	Transmission Type:	Manual;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Model Name:	Big Mars;
Dimension:	2,000x1,300x1,000mm;	Clutch:	Manual;
Wheelbase:	1,480mm;	Place of Origin:	Zhejiang China;
Port:	NINGBO/SHANGHAI, CHINA;	Brand Name:	CloverATV;
Ground Clearance:	180mm;	Drive method:	Chain;
Model Number:	CRATV-350;	Supply Ability:	1000 Piece/Pieces per Month;
Transmission System:	Chain Drive;	Displacement:	>300cc;
Seat Height:	700mm;	Packaging Detail:	Plastic film cover + iron frame + cardboard carton;
Delivery Detail:	Shipped in 28 days after payment;	Gearbox:	Five gear with reverse gear (4-3-2-1-N-R);
Engine Type:	4 Stroke;	Certificates:	CE & ISO & EEC & COC;
Fuel:	Gas / Diesel;

Kawasaki 350CC Racing ATV with Zongshen engine

Engine
Engine Type	350cc,single cylinder,4-stroke, water-cooling , EEC/coc certificate
Engine Displacement	350CC
Compressing ratio	9.2:1
Ignition system	CDI
Rated power & rotate speed	13kw/(8500±5%r/min)
Max torque & rotate speed	17N.m/(7500±5%r/min)
Ignition	CDI
Starter	Electric start
Drive Train
Clutch	Manual
Gearbox	Five gear with reverse gear (4-3-2-1-N-R)
Transmission method	Chain
Dimensions and Weight
Length x Width x Height	2,000x1,300x1,000mm
Wheelbase	1,480mm
Ground Clearance	180mm
Seat Height	700mm
Handle bar Width/Height	830mm/1000mm
Fuel Capacity	5.4L, metal tank
Fuel type	90#-97# gasoline
Distance on full tank	300km
Wheels, Suspension and Brakes
Wheels Front	14 inch alloy rim
Wheels Rear	14 inch alloy rim
Tyres Front	270/30-14
Tyres Rear	270/30-14
Suspension Front	air-cell shock absorber
Suspension Rear	air-cell shock absorber
Brakes Front	hydraulic disc brake
Brakes Rear	hydraulic disc brake
Packing and Others
Carton Size	1,800x1,000x900mm
Max speed:	150km/h 250Kgs
Max load capacity	260Kgs
Ride age	>16 year
Seat	1-2Person
Vent-pipe	Double alloy material
Indicator(F/R)	All LED indicators
Dashboard:	LED Three type speedometer (speedometer, fuel indicator, engine speed indicator)
N.W./G.W.	205kg/214kg
Container Load	Qty/20Fcl:18pcs Qty/40HQ:42pcs
