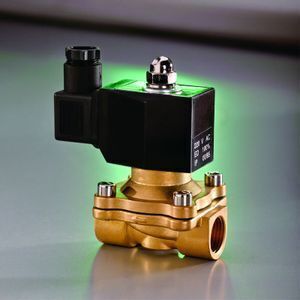

12V AC220V Normal Closed Valves 2W160-15 Direct-acting solenoid valve

Product details
Media:Water;Packaging Detail:A: Plastic Bag B: Carton;
Structure:Control;Temperature of Media:Medium Temperature;
Payment Terms:L/C,T/T,Western Union,PAYPAL;Material:Brass;
Application:General;Action mode:Direct action type;
Pressure:Medium Pressure;Power:Solenoid;
Port:Ningbo or Shanghai;Model Number:solenoid valve 2w160-15;
Supply Ability:100000 Set/Sets per Month 12v solenoid valve;Port Size:1/2";
Place of Origin:Zhejiang China;Standard or Nonstandard:Standard;
Media:Air,water,Oil,Gas;Delivery Detail:Shipped in 7 days after payment;
Brand Name:solenoid valve KLQD;Certification:ISO,CE,ROHS;

Solenoid valve



Model

2W160-15

Working Medium

Air,Water,Oil,Gas

Motion Pattern

Direct Drive Type

Type

Normal Close Type

Aperture of Flow Rate

16

CV Value

4.8

Joint Pipe Bore

G1/2"

Operation Fluid Viscosity

20CST Below

Working-pressure

Air:0~0.7Mpa; Water,Oil:0~0.5Mpa

Max Pressure Resistance

1.0MPa

Operating Temperture

-5~80°C

Voltage Range

-10%~+10%

Material of Body

Brass

Material of Oil Seal

NBR,EPDM or VITON



 Specification



TYPE

2W-025-06

2W-025-08

2W-040-08

2W-040-10

2W-160-10

2W-160-15

2W-200-20

2W-250-25

2W-350-35

2W-400-40

2W-500-50

THEAD G

1/8"  1/4"

1/8"  1/4"

1/4"

3/8"

3/8"

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

Aperture of  flow rate  mm

2.5

2.5

4

4

16

16

20

25

35

40

50

Motion Pattern

direct dirve





















Cv

0.23

0.23

0.6

0.6

4.8

4.8

7.6

12

24

29

48

length mm

40.5

40.5

40.5

52.5

69

69

73

99

115

120

154

height mm

75

75

75

90

117

117

123.5

134.5

154

162

185







+


  auto electronic valve



Orifice Size

5.0MM

Body

Brass

Working Pressure

1.6Mpa,4.0Mpa(Optional)

Ambient Temp

2°C~+55°C

Medium Temp

0~90°C

Insulate grade

H

Protection grade

IP65



Timer



Interval (minute)

0.5-45

Drain time (second)

0.5-10

Manual test button

Microswitch

Voltages

24-240V AC/DC,50-60HZ

Current consumption

≤4mA

Ambient Temp

-40°C~+60°C

Protection grade

IP65

Shell material

Flame Retarding ABS

Electrical connection

DIN43650A

Indicating lamp

LED indicating lamp

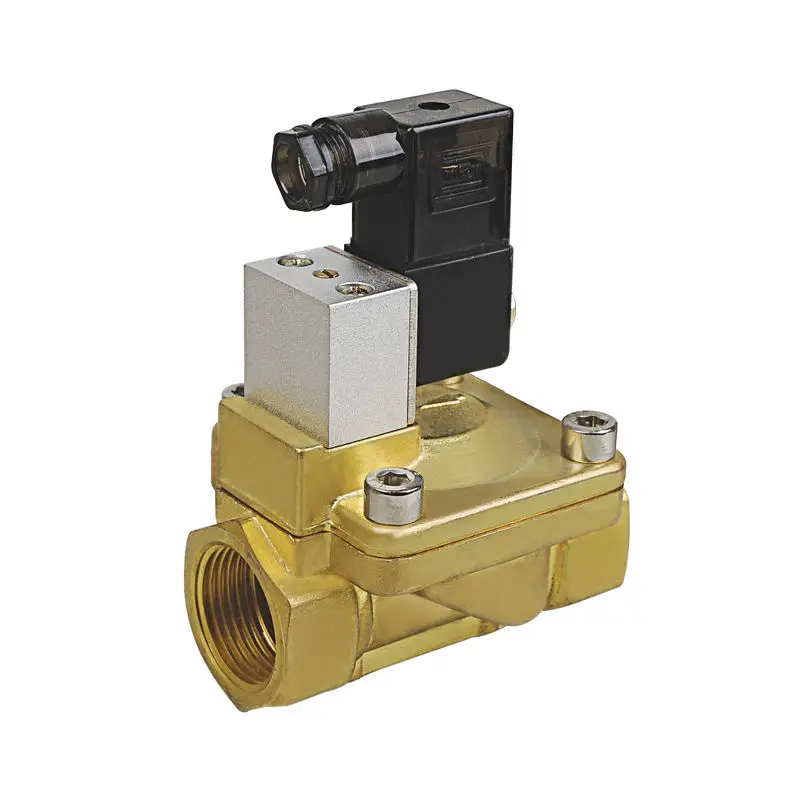

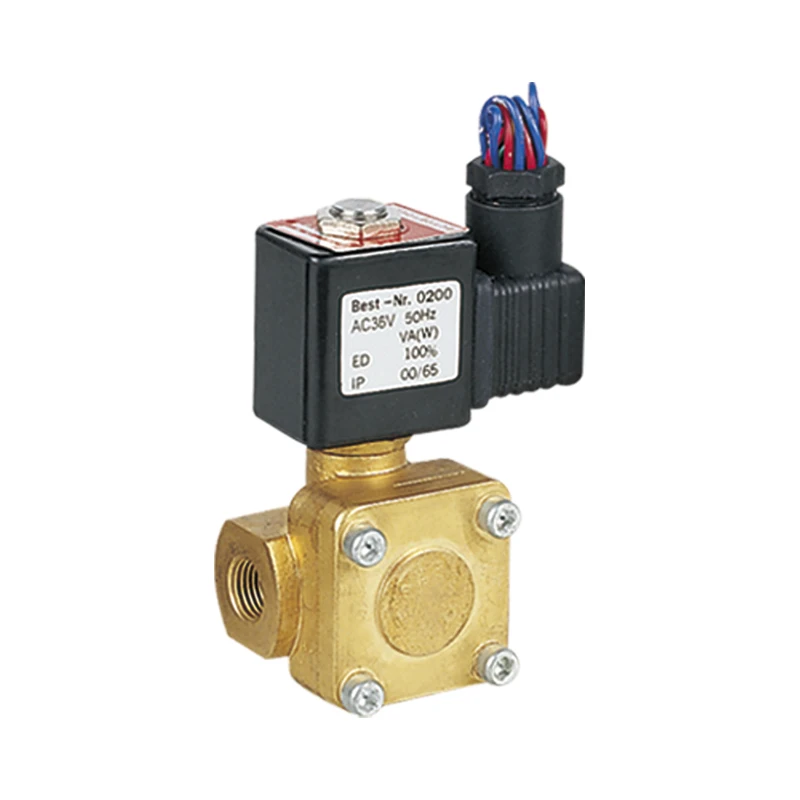

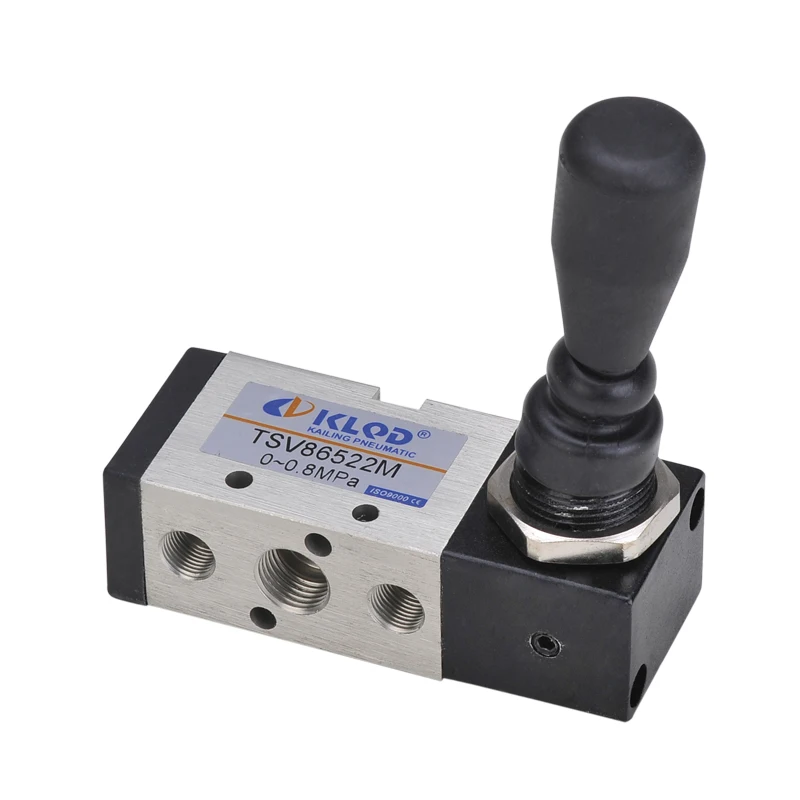

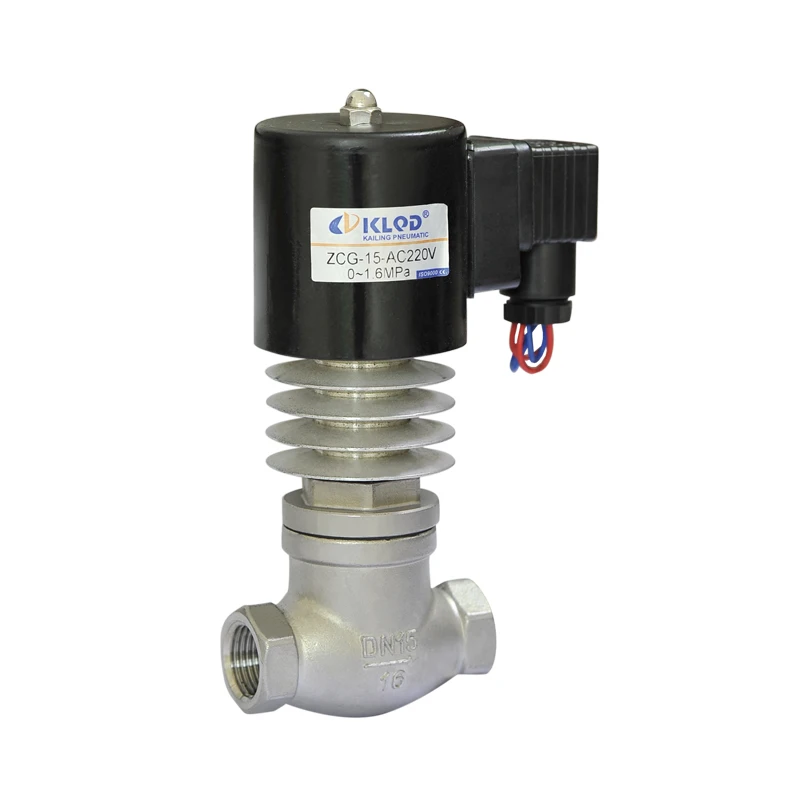

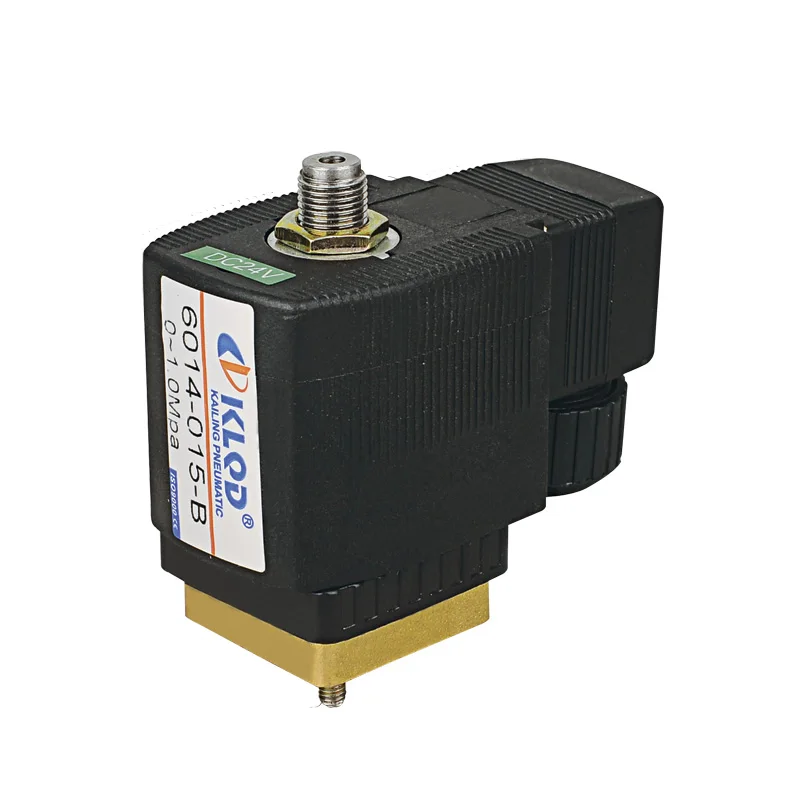

We have many other types of solenoid valves for your selection, below is some pictures





Payment Terms







Pay by T/T, LC







Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse







        paypal fee when you choose it.



Shpping Terms



Loading Port: ShangHai or NingBo, China



Sample Delivery: 7-10days.



Mass Production Delivery: 20 -50days after sample confirmation



Samples are available within 7-10 working days.





    We will give you a reply within 12 hours after receiving your inquiry.









About samples



We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.



For OEM products



We will finish the production within 20 days after payment has been confirmed.



About delivery and shipping



We will choose the delivery way as you required: by sea,by air,by express ect. Save your cost is our mission.



Warranty



Any question or problem will be respond within 24 hours.



One year guarantee:



All the spare parts broken in two years will be provided free by us and delivery to you.



Waiting for your inquiry !!!   MANY THANKS !
