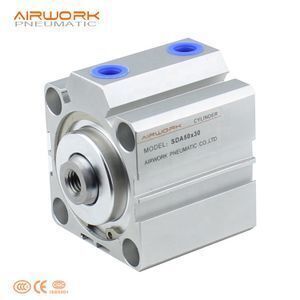

Airtac Type aluminum compact air pneumatic cylinder sda series for sale

Supplier: Zhejiang Jinzhi Pneumatic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Emily Wu
Price: $2.22 /piece
Min. Order: 1 piece

Click here to contact

Product details

Power:	Pneumatic;	Working Media:	Cleaned Air;
Port size:	M5, 1/8", 1/4", 3/8";	Standard or Nonstandard:	Standard;
Single package size:	50X50X50 cm;	After Warranty Service:	Online support;
Buffering Mode:	without;	Machinery Test Report:	Not Available;
Brand Name:	AIRWORK;	Working Temperature:	-5~70℃;
Body Material:	Aluminum;	Structure:	Piston Cylinder;
magnet ring:	With;	Proof Pressure:	1.35 MPa;
Local Service Location:	None;	Showroom Location:	None;
Warranty of core components:	1 Year;	Single gross weight:	1.0 KG;
Sensor Switch:	D-A73,D-A93;	Packaging Detail:	Carton;
Applicable Industries:	Machinery Repair Shops;	Acting Type:	Double acting;
Place of Origin:	China;	Core Components:	piston;
Video outgoing-inspection:	Not Available;	Product name:	Aluminum Alloy Compact Cylinder;
Working Pressure:	0.1-0.9Mpa;	Selling Units:	Single item;
Marketing Type:	Ordinary Product;

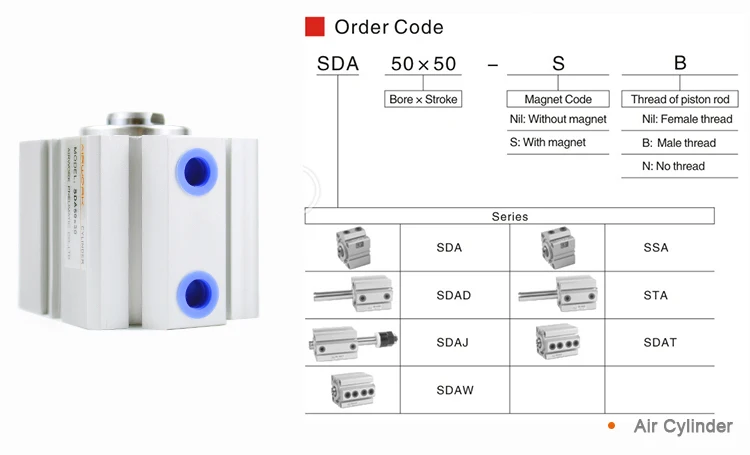

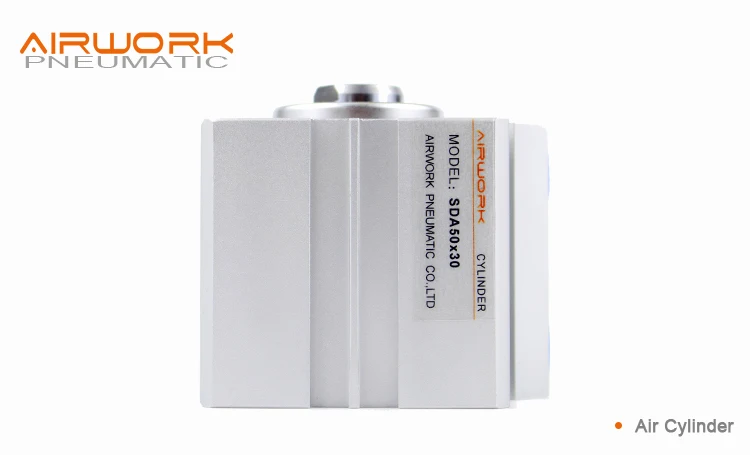

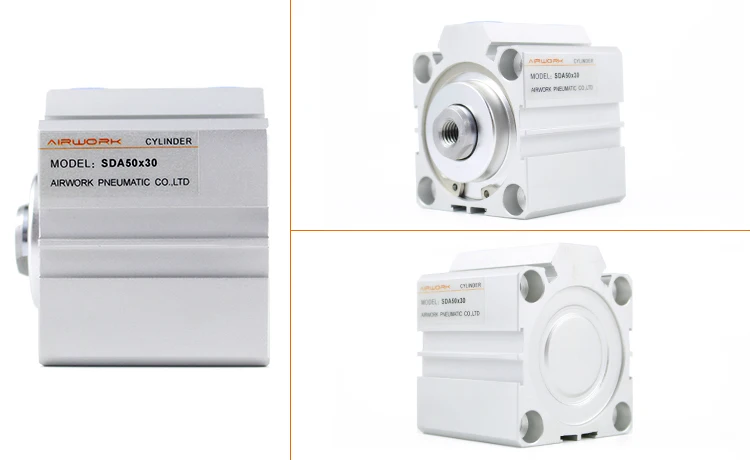

Airtac Type compact air pneumatic cylinder sda series

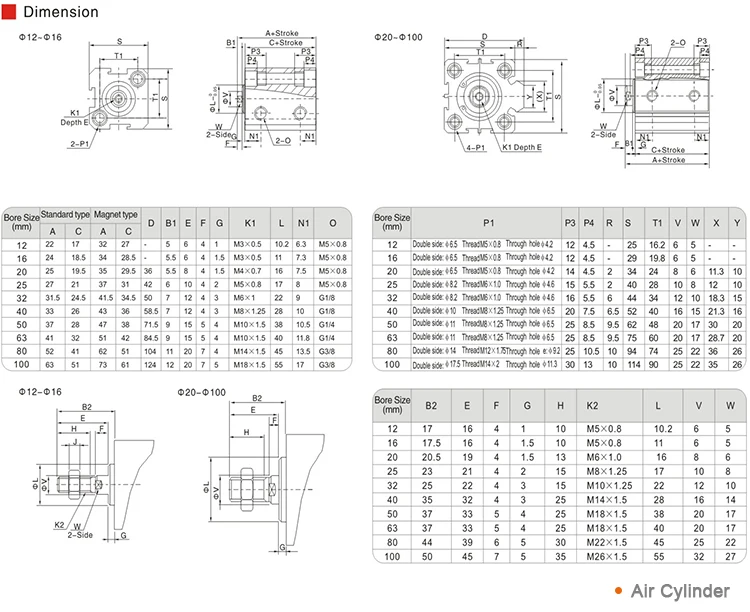

Bore Size(mm)	12	16	20	25	32	40	50	63	80	100
Acting Mode	Double Acting
Working Media	Cleaned Air
Working Pressure	0.1~0.9Mpa(1-7kgf/cm2)
Proof Pressure	1.35Mpa(10.5kgf/cm2)
Working Temperature	-5~70℃
Buffering Mode	without
Port Size	M5				1/8		1/4		3/8
Body Material	Aluminum Alloy

Send inquiry now!

Company Information

Production Flow

Packaging & Shipping

Payment

FAQ

Q1. Are you manufacturer or trading company?
A1. We are the manufacturer mainly producing fitting, cylinder,tube with good quality.

Q2. what’s the payment term?
A2. We accept T/T, L/C, WESTERN UNION.

Q3. What’s the delivery time ?
A3. Normal model 1-3days,because we have ability to do the stock.For big order,it takes about 10-15days.

Q4. What is the standard of package?
A4. Export standard package or special package according to customer requirement.

Q5. what kind of product quality your factory offer?
A5. We are the suppliers of the top three pneumatic company.We offer top quality to help client to get more market.

Q6. Do you accept OEM business?
A6. We do OEM .

Q7. Which market do you already sell?
A7. We already ship to Middle East, Asia, South America , Afria etc.

Q8. what kind of certificate you have ?
A8. We have ISO9001, CE, CCC,etc.
