High quality ZWJ - 3024 Acrylic heating automatic bending machine

Supplier: Lianyungang Zeye Mechanical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. jian wang
Price: $1800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	PVC / PE / PDR / PP / Acrylic / ABS;	Raw Material:	Sheet / Plate Rolling;
Delivery Detail:	Shipped in 10 days after payment;	Application:	Advertising / decoration etc.;
Type:	Horizontal;	Power:	Pneumatic & electric;
Length of bending:	10-2400mm;	Port:	Lianyungang;
Material / Metal Processed:	PVC / PE / PDR / PP / Acrylic / ABS;	Product name:	Acrylic bending mahcine;
Supply Ability:	20 Set/Sets per Month acrylic heating automatic bending machine;	Warranty:	12 Months;
Voltage:	110-410V;	Model:	ZWJ - 3024;
Machine Type:	Press Brake;	Color:	Customized;
Model Number:	ZWJ - 3024;	Packaging Detail:	standard wooden export package for High quality ZWJ - 3024 acrylic heating automatic bending machine;
Condition:	New;	Place of Origin:	Jiangsu China (Mainland);
Extra Services:	Heat Treating;	Automation:	Automatic;
Brand Name:	Zeye;	After-sales Service Provided:	Engineers available to service machinery overseas;
Certification:	ISO 9001:2000;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

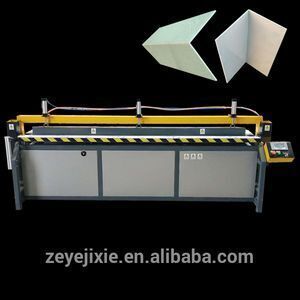

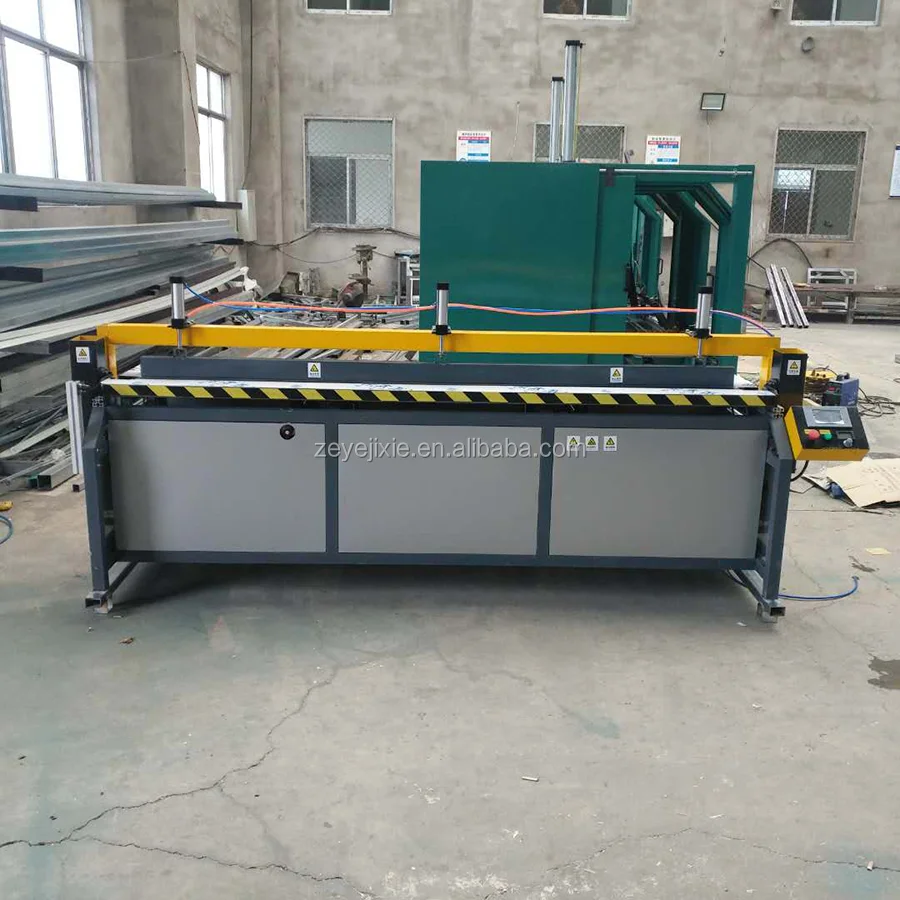

High quality ZWJ-3024 Acrylic heating automatic bending machine

machine type	ZWJ-3024
machine style	horizontal type
machine color	grey + yellow
work object	PVC, ABS, EPS, PP, PMMA, PET, etc.
voltage	220 V / 380 V
power	3-6 KW
machine size	286010001100 MM
thickness of processing sheet	1-8 MM
effective bending width	10-1200 MM
maximum forming area	2.4 M²
bending type	acute angle 、arc rounded angle
bending angle	0-179°
heating type	unilateral heating
Maximum heating temperature	300 ℃
production speed	depend on the thickness of sheet
compressive bar pressure	300kg
warranty period	one year
Remark: We can customize the machine according to client's demand.

Detailed Images

Product Features

Applicable industry: acrylic plate bending industry

1.The company's products unique energy-saving insulation device, can make the heat utilization rate more than 40% higher than that of other machine manufacturer.
2.Infrared plating barium heater,constant temperature heating,can make the heating radiation, upward than ordinary machine heating power,energy saving more than 40%.
3.The machine uses special multi-function positioning protractor, bending Angle adjustable, accurate and convenient.
4.Automatic cooling water circulation system, make the machine with linear heating function.
5.The machine uses thickening stainless steel mesa platform, to ensure the bending machine production process, the acrylic sheet is not subject to wear and tear, haven’t a scratch.

Our Factory

Lianyungang Zeye Machinery Co., Ltd. was established in 2012,Our company specializes in the production of acrylic, pvc, abs, and other plastic pipe bending machine；Specializing in the production of various types of plastic vacuum forming machine , bending machines, ovens and other mechanical equipment,such as acrylic, pvc, abs and so on.Our company undertakes various types of customized mechanical equipment,which is a high-tech enterprise incorporating R&D Production and sales.We will provide you with higher quality services by superb technology, excellent quality!

Our Team

Our company has a professional r&d team, sales team and after-sales service team, closely cooperate with each department, efficient service customers.Comfortable office environment, the team get along well.We can provide you with the most professional services.

Packing & Delivery

1. Packaging Details:Nude package combined with standard export wooden case package or as customer's requirements.

2. Delivery Time:15 days after payment.

FAQ

1. Why do you choose our Machinery?

We have rich experience in the industry of bending machine, can provide high quality product quality, can be customized according to customer's request.

2. Could you provide OEM service?

Yes, we do have strong technical development and professional designers.

3. What about the payment term?

We can accept T/T, Western Union, Paypal.

4. Could you provide samples?

Yes,we can provide samples for free.
