VF - 1829 High Quality Acrylic / PVC Sheet Thermo Vacuum Forming Machine
-
Supplier: Lianyungang Zeye Mechanical Equipment Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr. jian wang -
Price: $10800.00 /set -
Min. Order: 1 set
| After-sales Service Provided: | No overseas service provided; | Type: | Vacuum Forming Machine; |
| Model Number: | VF - 1829; | maximum work area: | 1500*1000mm; |
| Voltage: | 110-410v; | machine type: | VF - 1829; |
| Brand Name: | zeye; | warranty period: | 1 year; |
| Supply Ability: | 200 Set/Sets per Year Thermo Vacuum Forming Machine; | Automatic: | Yes; |
| Packaging Detail: | Standard wooden export package for VF - 1829 High Quality Acrylic / PVC Sheet Thermo Vacuum Forming Machine.; | Dimension(L*W*H): | 2400*2200*2200mm; |
| maximum forming depth: | 500mm; | Place of Origin: | Jiangsu China (Mainland); |
| Product Type: | Sheet; | maximum heating temperature: | 300℃; |
| Plastic Type: | acrylic,pvc,abs,upvc; | thickness of sheet: | 2-10mm; |
| Condition: | New; | Weight: | 1000kg; |
| Delivery Detail: | 15 days; | overall size: | 2400*2200*2200mm; |
| Port: | lianyungang/qingdao/shanghai; | machine style: | verticle type; |
| Product name: | Thermo Vacuum Forming Machine; | Power(W): | 20-30kw; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Certification: | ISO9001:2008; |
| work object: | acrylic,pvc,abs,upvc; |

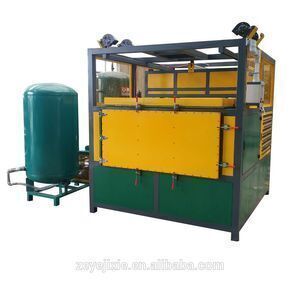

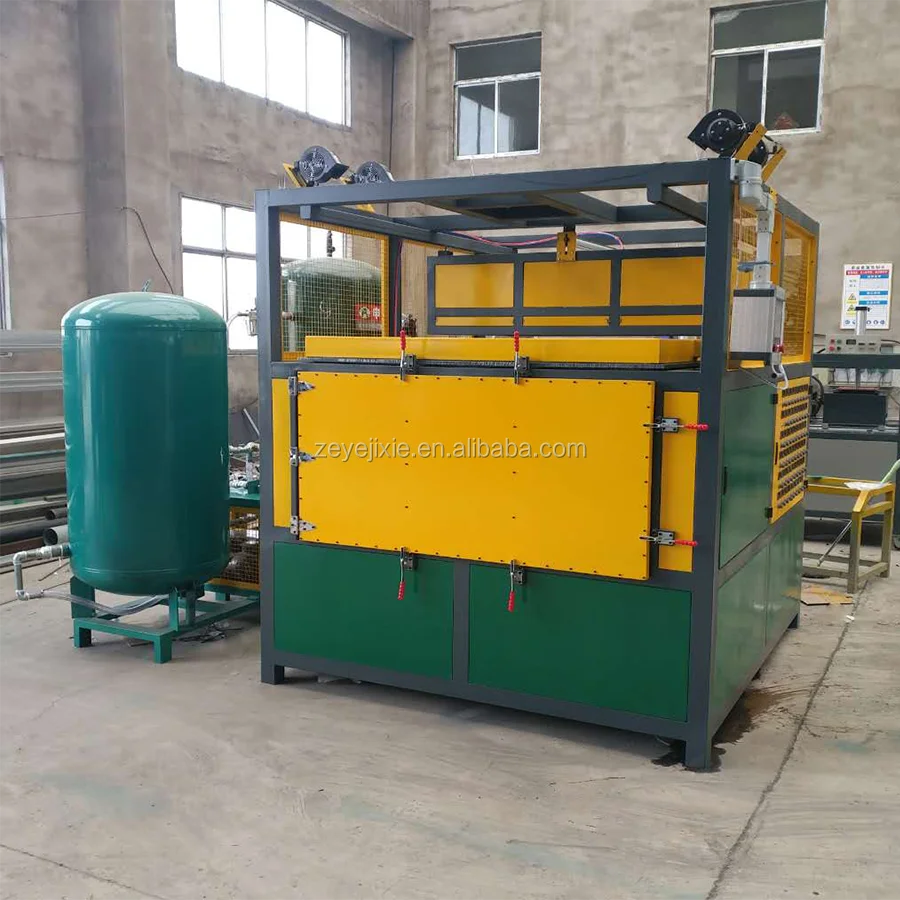

VF - 1829 High Quality Acrylic / PVC Sheet Thermo Vacuum Forming Machine
Purpose:

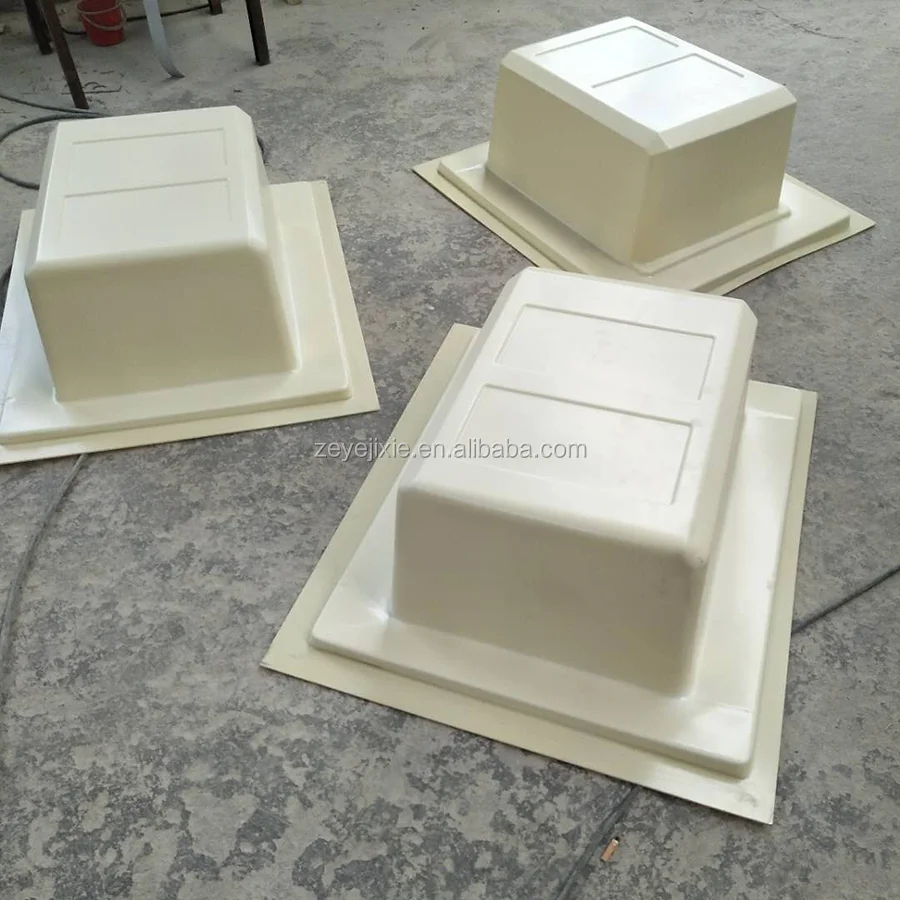

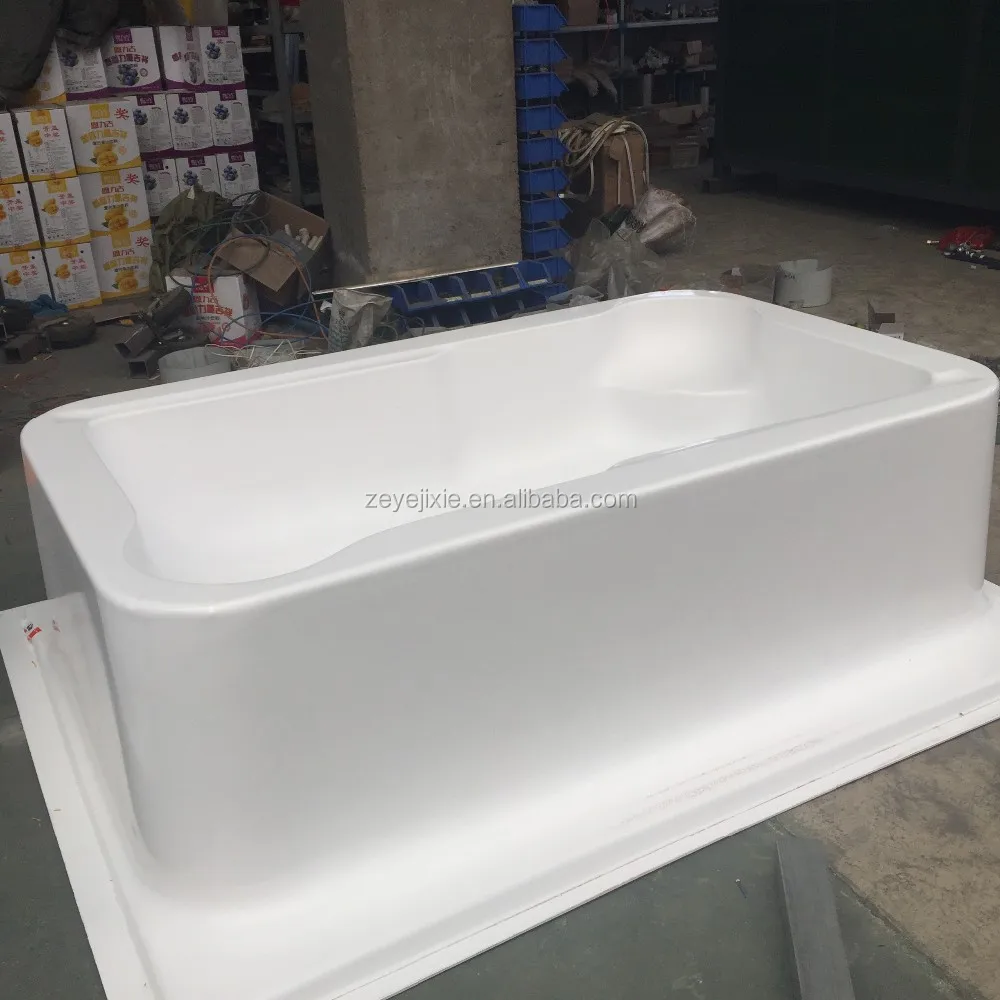

The material such as ABS, PP, PE, PS, PC, PVC, EPS, HIPS, HDPE, PMMA, PET, PETG in thick sheet could be processed by this machine, it is an ideal vacuum forming machine for automobile parts like car foot mat, car trunk mat, car bumper, light box, plastic board, plastic containers, plastic pallet, plastic helmet, plastic covers, bathtub, fruit tray, suitcase, apparatus shell, instrument panel, refrigerator inner liners, etc.
Product Introduction:
Basic units:

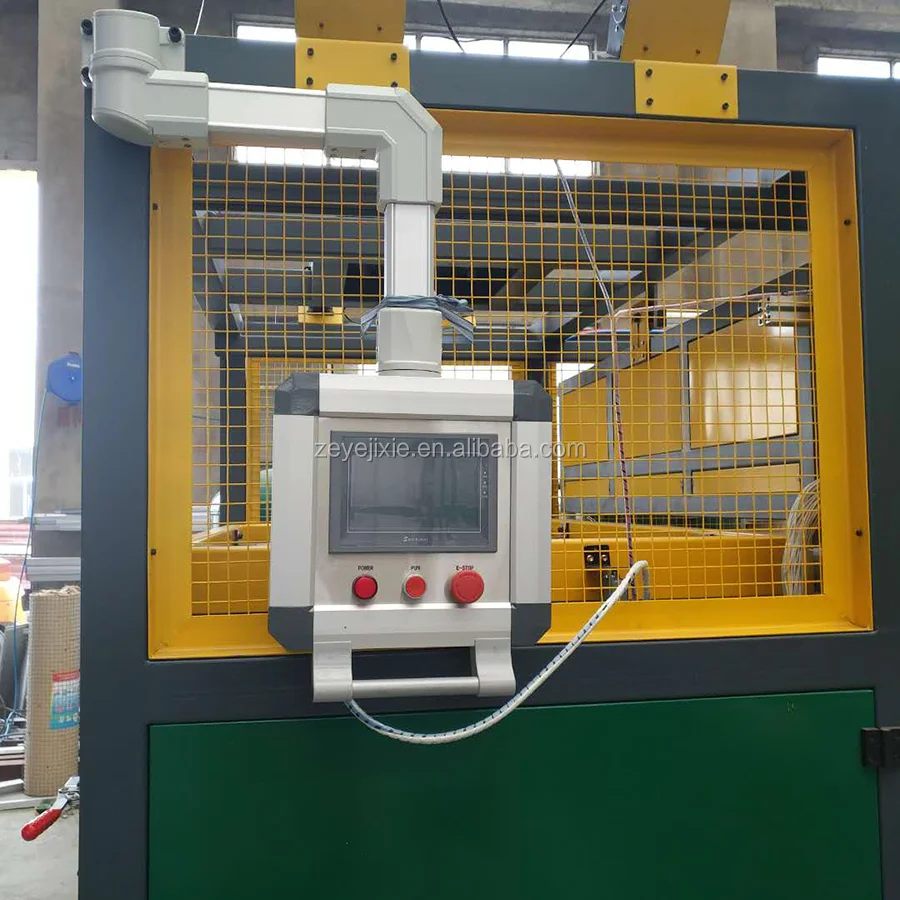

1. PLC control system with touch screen.
2. Independently controllable heating zones.
3. Pneumatically powered clamp frame.
4. Automatic cooling system with cooling fans, industrial chiller and spray guns.
5. Automatic vacuum forming system.
6. Steel components coated with polyurethane.
7. Far infrared ceramic heating bricks or Halogen heater tubes is optional. Halogen heater tube provides rapid heat response with a greater range of control to form challenging shapes and material, infrared ceramic heating brick has longer service life.
Main process:
1. Processing flow: Manual Feeding → Heating → Pre-strech → Forming → Cooling → Air Blowing & Releasing from mold → Clamp Rising → Manual Pickup.
Lianyungang Zeye Machinery Co., Ltd. was established in 2012,Our company specializes in the production of acrylic, pvc, abs, and other plastic pipe bending machine；Specializing in the production of various types of plastic vacuum forming machine , bending machines, ovens and other mechanical equipment,such as acrylic, pvc, abs and so on.Our company undertakes various types of customized mechanical equipment,which is a high-tech enterprise incorporating R&D Production and sales.We will provide you with higher quality services by superb technology, excellent quality!
Our company has a professional r&d team, sales team and after-sales service team, closely cooperate with each department, efficient service customers.Comfortable office environment, the team get along well.We can provide you with the most professional services.
1. Packaging Details:Nude package combined with standard export wooden case package or as customer's requirements.
2. Delivery Time:15 days after payment.Custom products are usually shipped in about two months.
We have rich experience in the industry of bending machine, can provide high quality product , can be customized according to customer's request.
Yes, we do have strong technical development and professional designers.
3. What about the payment term?
We can accept T/T, Western Union, L/C.
Yes,we can provide bending pipes for free.
-
