Acrylic Forming/Making/Vacuum Tub Forming Machine

Supplier: Hangzhou Paris Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Louis Hu
Price: $11000.00 / 1 - 2 sets
$9800.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	Jaycon	Production speed (times/hour):	20
weight:	1800 kg	Health status:	new
strength:	23-45 kW	Forming width (mm):	1600mm
Plastic Type:	ABS	power supply:	380V
type:	vacuum forming machine	Dimensions (LWH):	4500*3200
Heating power (kW):	42 kW	Maximum molding height (mm):	900 mm
payment terms:	L/C, Western Union, T/T	Core component warranty:	1 year
Video outbound inspection:	if	Marketing Type:	normal product
Warranty:	1 year	After-sales service provided:	Engineers available to repair machinery overseas
Product Category:	sheet	Forming length (mm):	2000 mm
automatic:	Yes	Voltage:	380V 50Hz
Origin:	Zhejiang, China	port:	Shanghai or Ningbo
Packaging Details:	tray	Mechanical test report:	if
Core components:	Bearings, motors, gears, pumps	Weight (ton):	1.5 tons
color:	as a customer	Applicable industries:	manufacturing plant
Main selling points:	competitive price	Showroom location:	Türkiye, Algeria, Uzbekistan
Supply capacity:	5 sets per month

Other bathtub making

Product Description

The bathtub production line includes the following equipment:

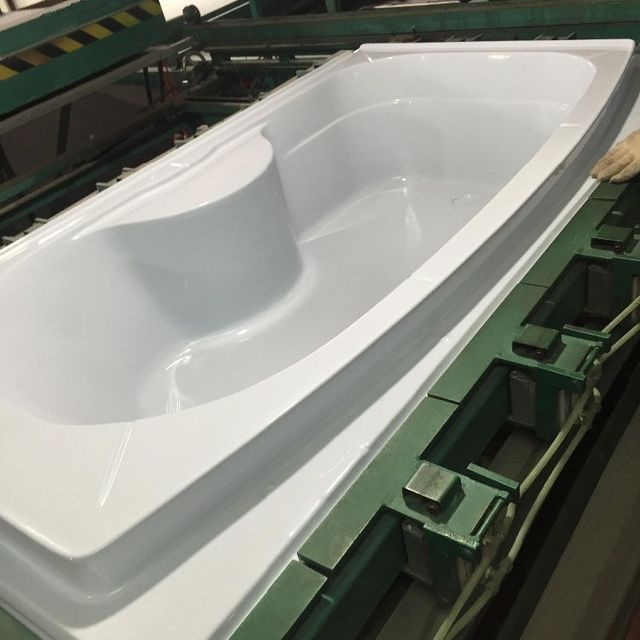

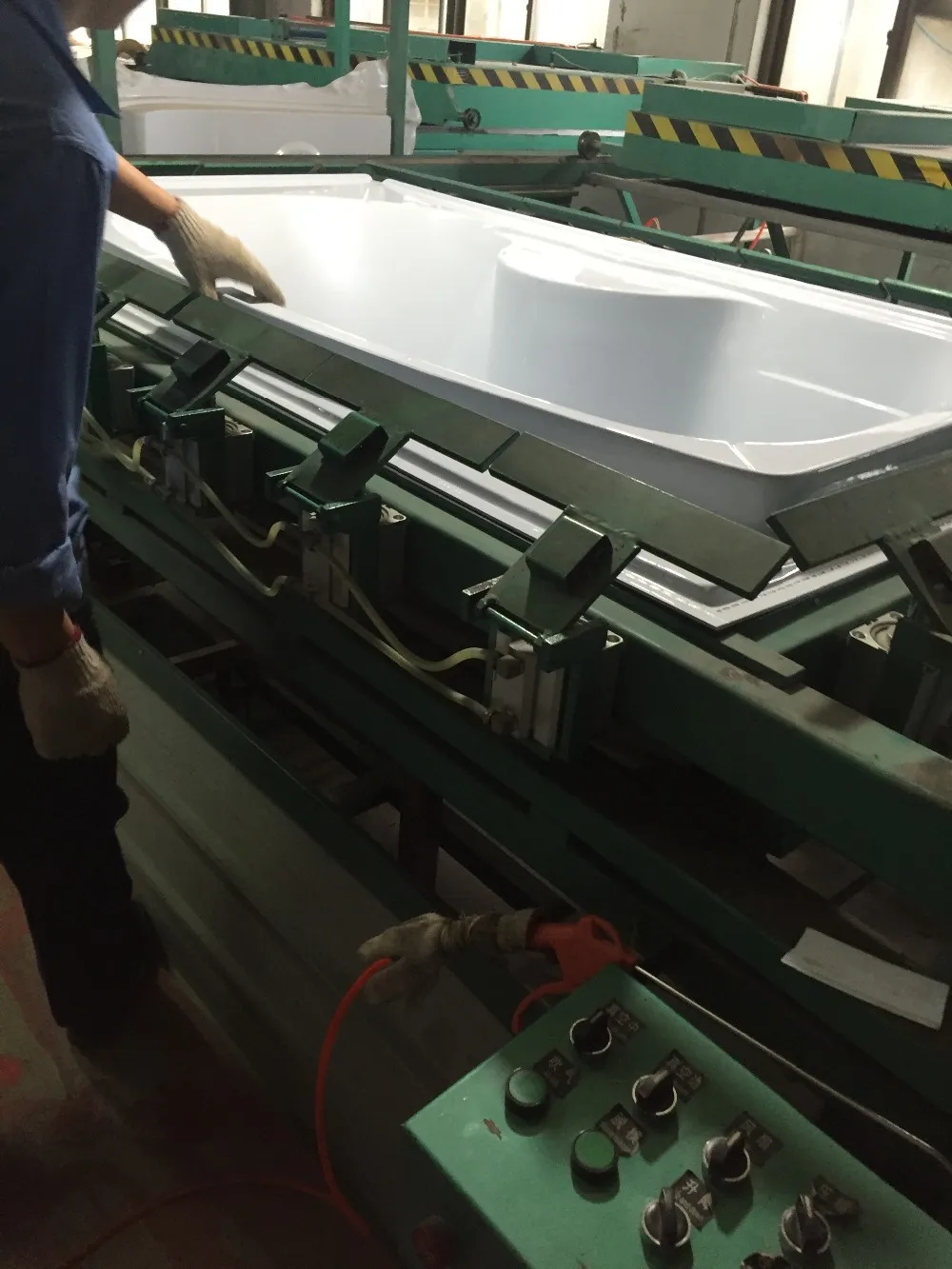

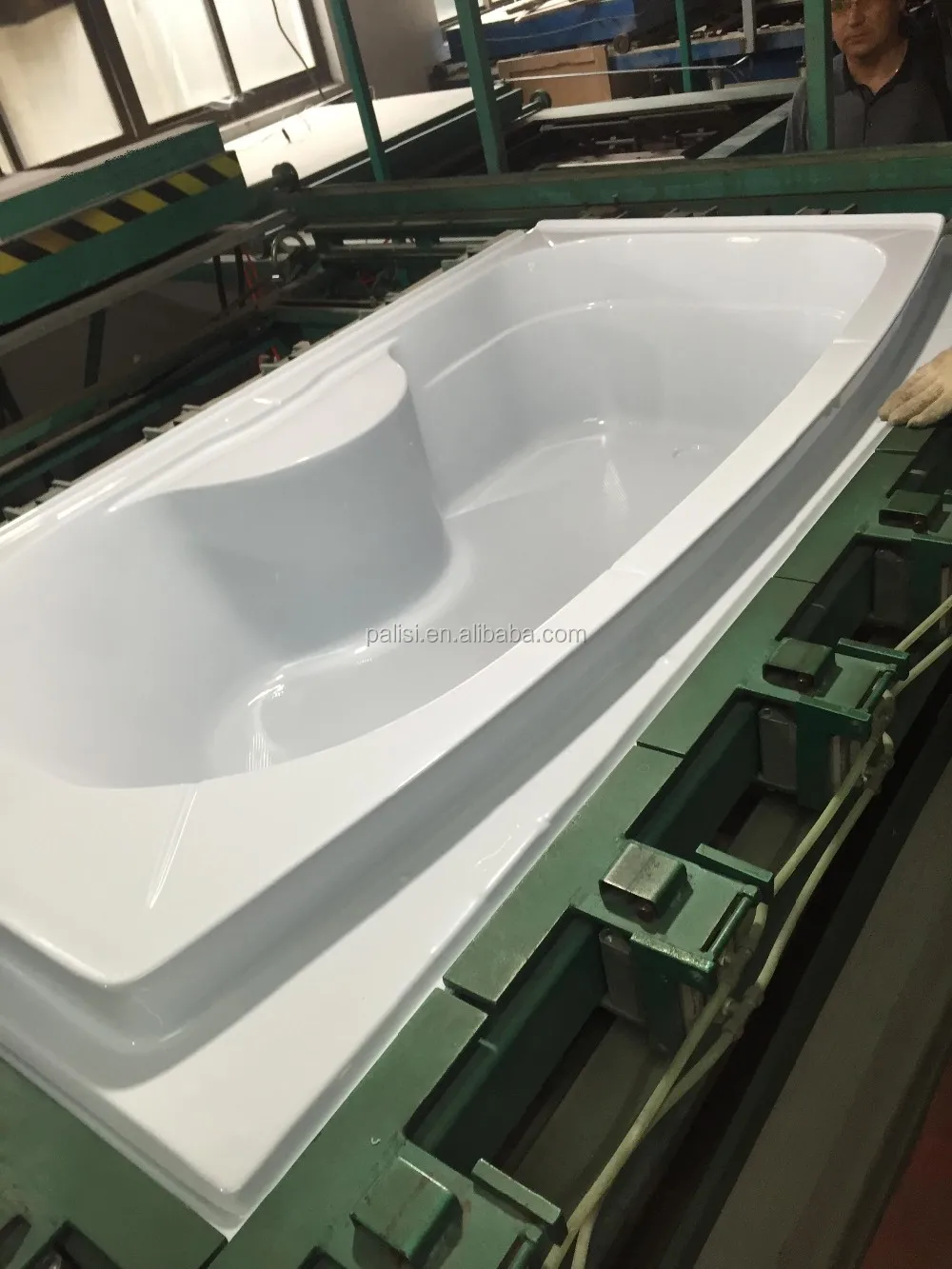

1. Bathtub Vacuum Forming Machine

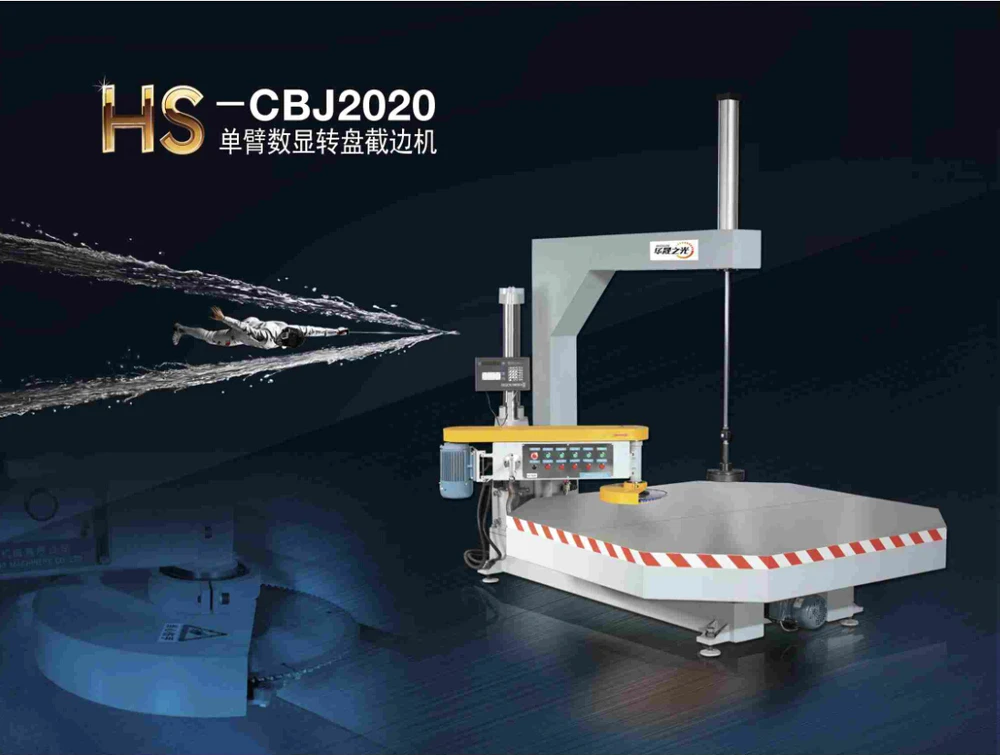

2. Bathtub trimming (cutting) machine

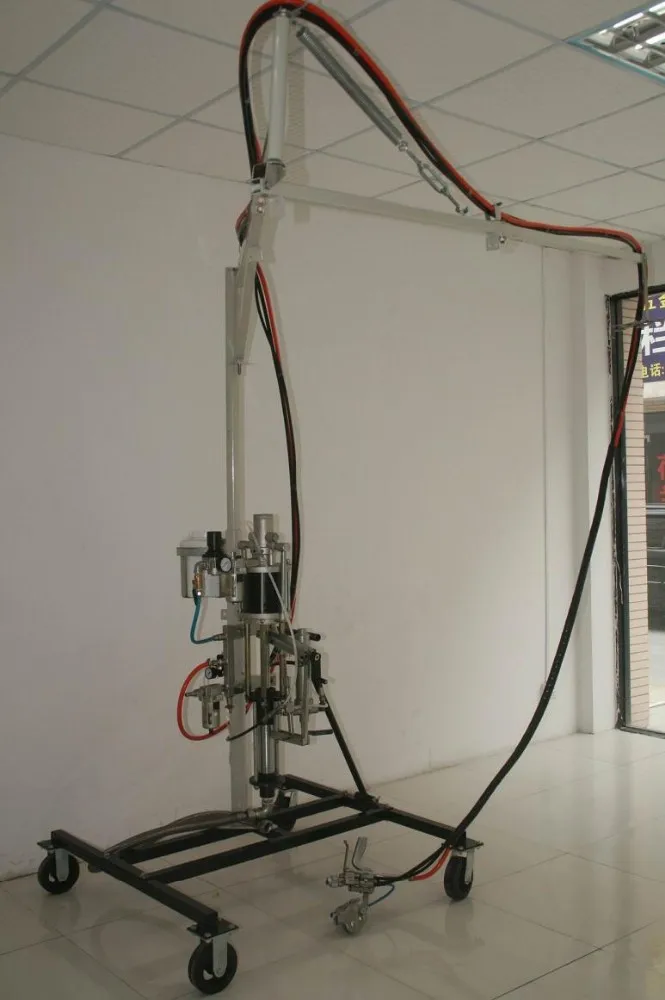

3. Resin spray gun with chopper (manual spraying is also available)

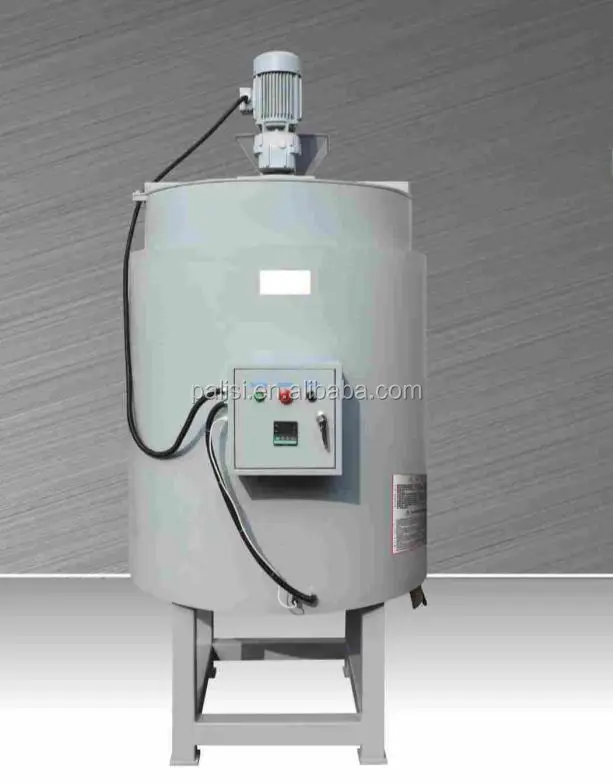

4. Resin mixer (constant temperature resin mixer or simple mixer)

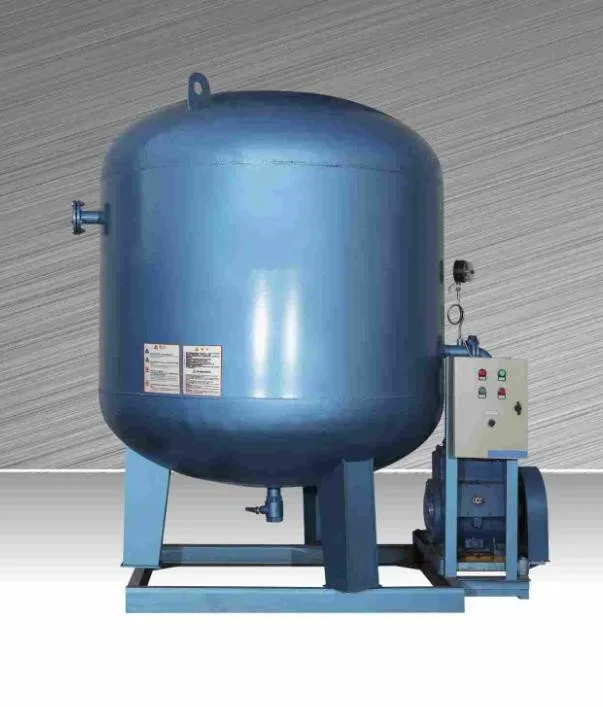

5. Vacuum station (vacuum pump, vacuum tank)

6. Air pressure system (air compressor, air tank)

7. Bathtub mold

The materials for making the bathtub are as follows,

1. Acrylic board (you can also choose acrylic, ABS composite board)

Thickness: 2.3mm, 2.5mm, 3mm, 3.2mm3.5mm, 4mm, 4.5mm

can be colored

Acrylic sheet looks brighter

2. Acrylic, ABS composite sheet

The price is lower than pure acrylic sheet

Composite panels are stronger

can be colored

3. Resin

DC191, making reinforcements with glass fibers

4. Glass fiber

Create reinforcements with resins

Specifications: 300G/M2, 250G/M2, 400G/M2

5. Stone powder (calcium carbonate powder, CaCO3 powder)

Blended with resins as a filler material for mixtures of resin and glass fiber reinforcement

The price is very cheap and you can buy it in your own country

6. Catalyst for resin chemistry

Blue chemical (mix with resin and stone powder) and white chemical (add white chemical when material is to be sprayed)

product name	Bathtub Vacuum Forming Machine
Material	steel
Heating element	Stainless steel heater, infrared heating tube, ceramic heating tube
size	200*150cm (maximum molding size)
strength	28KW (all heaters on)
certified	CE, ISO9001:2000, SGS,


heating zone	24 partitions (can be controlled individually to save power)


ensure	2 years

Technical Training

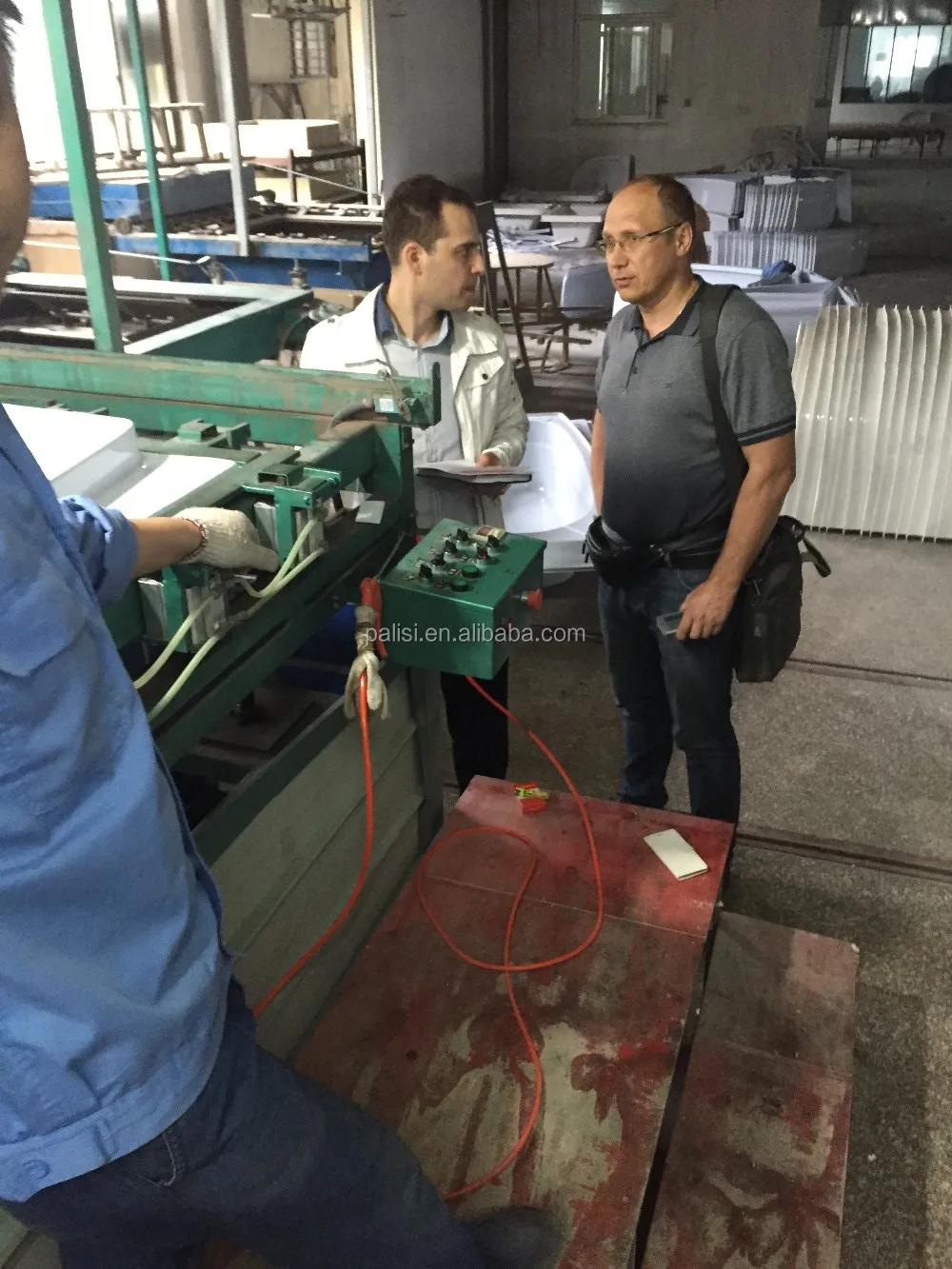

Clients from Russia

They purchased the entire tub line from us: tub formers, trimmers, resin spray guns with cutters, vacuum station and all tub moulds.

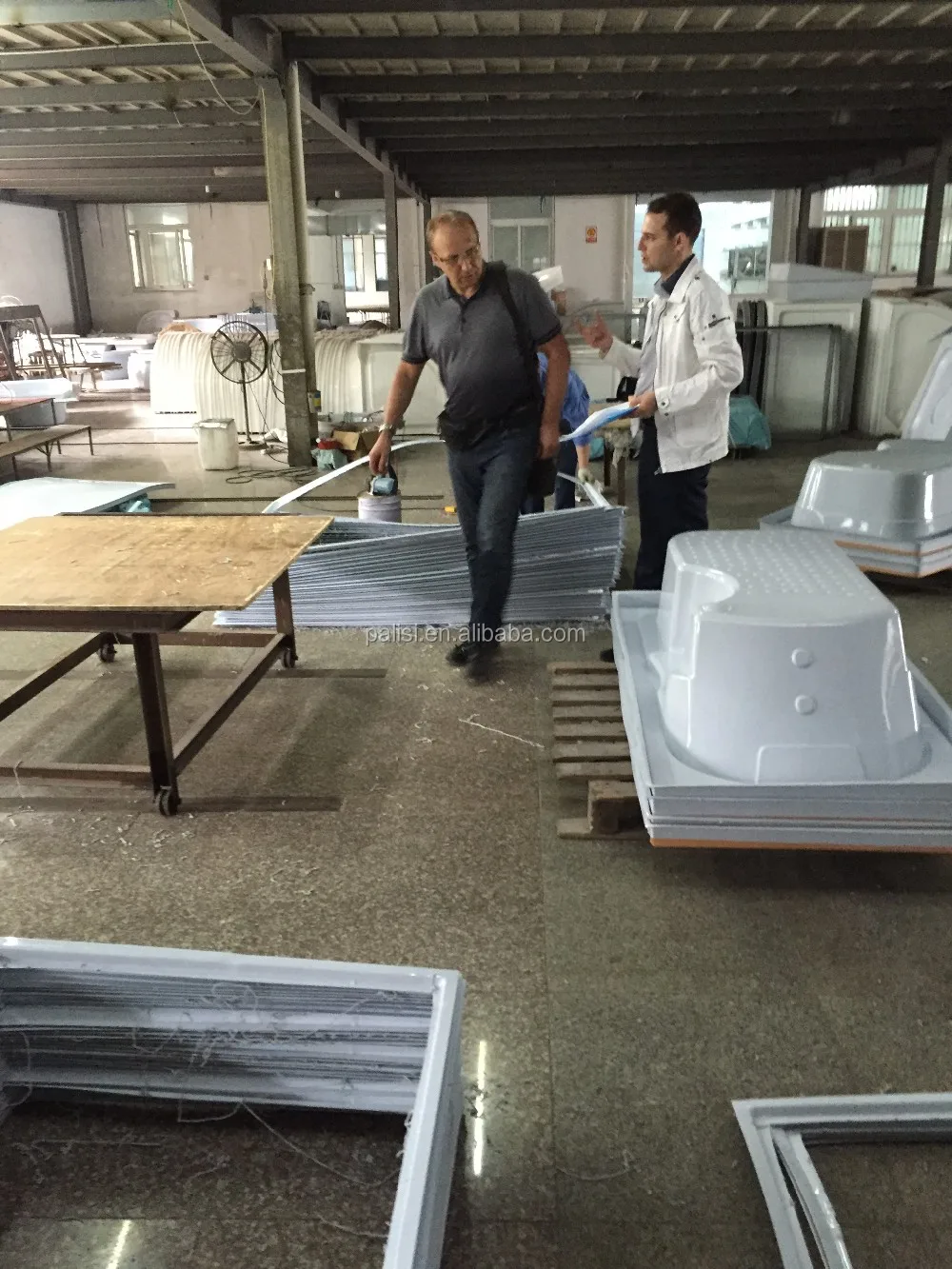

Algeria customer

They purchased the entire tub line from us: tub formers, trimmers, resin spray guns with cutters, vacuum station and all tub moulds.

Clients from Saudi Arabia

They bought a whole set of bathtub making machines and molds from us, and learned all bathtub making techniques in our factory.

FAQ

Q: Are you trading company or manufacturer?

A: We are a manufacturer.

Q: How long is your delivery time?

A: About 30 days after you confirm the order.

Q: What is the guarantee for all bathtub production lines?

A: Two years after the container leaves

Q: Can you come to our factory and help us build the whole production line?

A: Yes, we can. We can send our technicians to your factory. But you have to pay for their airfare and hotel.
