baby diaper manufacturing machine

Product details
Video outgoing-inspection:Provided;Showroom Location:Egypt,United States,Viet Nam,Indonesia,Spain,South Korea,Sri Lanka,Ukraine,Japan;
Local Service Location:Egypt,United States,Viet Nam,Indonesia,Spain,Morocco,UAE,Bangladesh,Nigeria;Warranty:1.5 years;
Payment Terms:L/C,D/P,T/T;Machinery Test Report:Provided;
Certification:ISO9001, CE;After Warranty Service:Video technical support,No service,Online support,Spare parts,Field maintenance and repair service;
Marketing Type:New Product 2020;Port:NANJING;
Supply Ability:10 Set/Sets per Month baby diaper machine;Warranty of core components:1 Year;
Place of Origin:Jiangsu China;color:silver and blue;
Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;Brand Name:JWC baby diaper machine;
Applicable Industries:Manufacturing Plant;Condition:New;
Packaging Detail:wooden boxes for baby diaper machine;After-sales Service Provided:Overseas third-party support available,Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;

Product Description

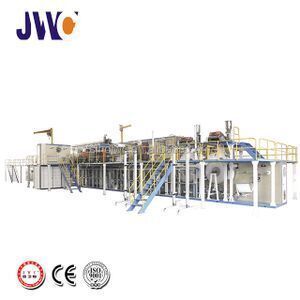

baby diaper manufacturing machine

diaper machine Main technical parameters:

Model JWC-LKB
Design speed 80m/min
 Working speed 100-150 pcs/min
 Installation Capacity  80KW (380V 50HZ) (including the glue applicator)
 Real power 70KW (380V 50HZ) Breaker: 250A
Air compressor 1.2m3/min ≥0.6MPA
Total Weight about 18T
Machine size 20×3.2×3M (L×W×H)
 Working space 24×6×4M (L×W×H) including the attached devices
Product size: (design as per customers’ requirements) S: 380×270mm     M: 450×310mm L: 515×330mm
Containers  2×40HQ







Main functions and features



  1. The machine is economic type machine, can make three sizes diapers
  2. The machine can produce fluff core I-shape or T-shape diapers which according to the customer’s samples. .
  3. The machine has top sheet non woven, back sheet PE film, frontal tape and side tape devices.
  4. Both sides with leak proof cuffs.
  5. Material for stereo shield is cut and shaped by hot press on the equipment.
  6. It adheres to elastic ribbon to be formed for side leakage proof.
  7. After the side arcs are shaped, the wings will be tri-folded lengthwise. The diaper pads will be output in line and easy for packing.





Options



Acquisition Layer adding unit.







Company Information





  ♦ Quality certification:

♦Exhibition:

♦Cooperation brand:







Packaging & Shipping











VIEW MORE
