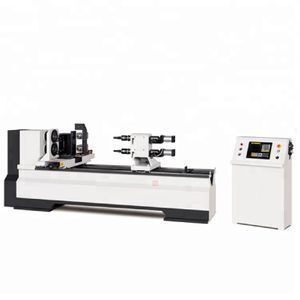

Chinese Automatic CNC wood carve lathe wood working turning lathe for railing H-D150D-DM

Product details
Warranty:one year;Name:Wood Lathe Machine Prices;
Brand Name:HIENCE;Dimension(L*W*H):2900*1000*1300MM;
Warranty:1 Year;Packaging Detail:standard wooden case;
Function:Automatic Wood Rotary Cutting Lathe;After-sales Service Provided:Overseas service center available;
Place of Origin:Shandong China (Mainland);Product name:WOOD LATHE MACHINE;
Power(W):4kw;Type:Auto Wood Lathe;
Port:Qingdao, Tianjin, Shanghai, Guangzhou.etc;Certification:CE ISO9000;
Condition:New;Weight:1700kgs;
Machine type:Horizontal CNC Wood Turning Lathe;Spindle speed:500-3150rpm;
Control system:CNC;Payment Terms:L/C,D/P,T/T;
After-sales Service Provided:Field maintenance and repair service;Voltage:380V;
Supply Ability:50 Set/Sets per Month;Application:Woodworking Carving;
Product Description

Application

The machine is used for wood cutting. Whose character is that the machine can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency.

Items
H-D150D-DM
Max.Swing over bed of Single axis(mm)
300
Max.Swing over bed of double axis(mm)
195
Max. Machining length(mm)
1500
Min.cutting length
20mm
Min. Work diameter
10mm
Main motor(KW)
5.5
Total power (KW)
12
Dimension(mm)L×W×H
2900*1000*1300
Weight(kg)
1700
Voltage
3 phase 380V
Detailed Images

Product introduction:

The machine is used for wood cutting. Whose character is that the machine can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency.

Functional features:

Upper and lower axis large CNC wood turning and milling machine can cutting up to ø300 wood if just use upper axis. If use double axis and cut 2 wood bar, can up to ø195mm. The machine has turning, milling and engraving function, and processing up to 3m length. The lathe bed is integrally cast, so can guarantee the stability of machine.

Machining range:

The machine can be used for cutting the headpost, legs of all wood furniture, clothes tree stem, wooden vase,cylindrical, conical, arc and spherical complex shapes of rotors wood or wood semi-finished products.
