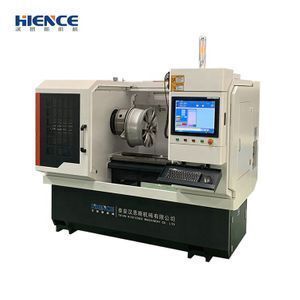

Chinese Alloy Wheel cnc Lathe Diamond Cutting Machine Rim Repair Lathes Machine Price AWR28HPC

Supplier: Taian Hiscience Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Frank Lee
Price: $13700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom Location:	Canada,Saudi Arabia,South Korea,Colombia;	Condition:	New;
Machine Type:	Flat Bed Lathe;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Max. Swing Diameter (mm):	770;	Local Service Location:	Canada,Russia,Australia,South Korea;
Spindle Motor Power(kW):	7.5;	Structure:	Flat Bed Lathe;
Application:	Repair Car Alloy Rims;	Type:	Horizontal;
Weight (KG):	2200;	Max. Length of Workpiece (mm):	600;
Key Selling Points:	Automatic;	Tool Post Stations:	4;
Positioning Accuracy (mm):	0.03 mm;	Name:	Aluminim wheel polish equipment;
Product type:	Alloy wheel cnc lathe;	Number of Axes:	2;
Place of Origin:	Shandong China;	Selling Units:	Single item;
CNC or Not:	CNC;	Single gross weight:	2200.0 KG;
Max. Spindle Speed (r.p.m):	2000 r.p.m;	Machining Capacity:	Medium Duty;
Certification:	CE ISO;	Model Number:	AWR28HPC;
Width of bed (mm):	300;	Packaging Detail:	Standard wooden cases;
Spindle Bore(mm):	82 m'm;	Warranty:	2 years;
controller:	PC touch screen;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Overseas service center available;
Package Preview:	https://sc01.alicdn.com/kf/HTB1nlVAaJfvK1RjSspoq6zfNpXaC.jpg_640x640.jpg;	Single package size:	229X173X214 cm;
Product name:	Wheel Repair;	Function:	Rim Repair;
Applicable Industries:	Machinery Repair Shops,wheel repair;	Travel (X Axis)(mm):	390;
No. of Spindles:	Single;	Travel (Z Axis)(mm):	880;
Keywords:	Diamond Cutting Wheel Cnc Lathe;

Our company has developed newest PC controller type wheel repair lathe to repair damaged wheel face. The machine use 17'' touch industrial PC, so the machine get rid of complicated operation and many useless CNC controller button. And all steps will finished on PC.

ITEMS		AWR28HPC
Max. swing over bed (mm)(inch)		Φ770(30’)
Max. Diameter of wheel(mm) (inch)		Φ710(28’)
Max. Stroke of the X-axis(mm)		390
Max. Stroke of the Z-axis (mm)		880
Width of the rail (mm)		300
Length of the rail (mm)		1320
Size of the three-jaw chuck (inch)		13’
Range of spindle speed (RPM)		50~2000
Spindle speed control		Automatic
Spindle bore (mm)		Φ60
Taper of spindle bore		1:20(Φ90)
Taper of spindle nose		A2-10
Adjustable stroke of carrier in X direction		100mm
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		7.5KW

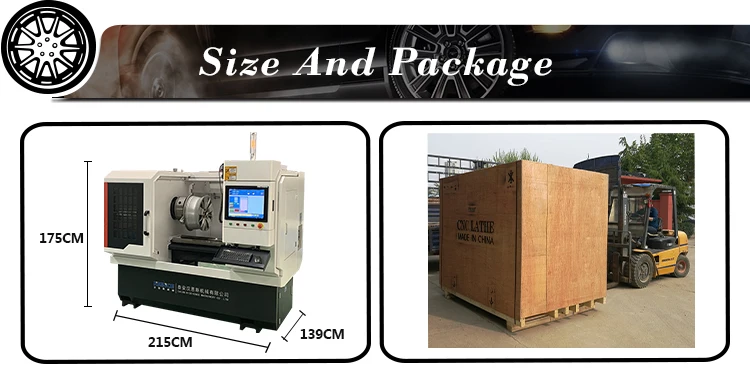

Machine size	(L/W/H) (mm)	2150/1390/1750
Package size		228017202170
Weight		2200KGS

1.Can probe and cutting alloy wheels automatic. Can set start and end detection point by one key.

2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.

3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.

4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.

5.We offer detailed training video and manual with machine,you can learn the machine by yourself.

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 1 hours on work days, and within 4 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website according to your request. Or You can let our seller know what is your request specification or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is two year, but we will offer lifetime service for machine.
