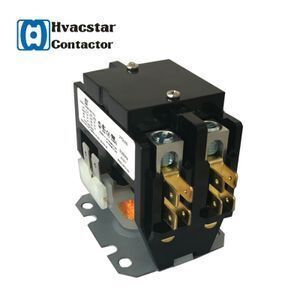

Electronic Brand Magnetic Definite Purpose AC Contactor 2P 40A 24v 2 pole contactor

Product details
Payment Terms:L/C,Western Union,D/P,D/A,T/T;Delivery Date:15 Days After Deposit;
Frequency:50/60 HZ;type:contactor;
Brand Name:HVACSTAR or OEM;Place of Origin:Zhejiang China;
Model Number:SA-2P-40A-24V;Electrial life:250,000 times;
Material:Bakelite;Phase:1;
Main Circuit Rating Current:20-40A,40;Port:Ningbo or Shanghai;
Applitation:Refrigeration Air Conditioning and Heating;Supply Ability:4000000 Piece/Pieces per Year;
Main Circuit Rating Voltage:24V/120V/240V/380V, 600 VAC,24;Insulation System:Class F-155;
Electricity Type:AC;Mechnical life:1,000,000 times;
Packaging Detail:kraft box with standard carton 50PCS/carton could design your own pattern on the box..;Number of Pole:2;

Electronic Brand Magnetic Definite Purpose AC Contactor 2P 40A 24v 2 pole contactor

About Us

Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including

DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,

China, in 2005,  stepped  into the  HVAC industry  as  a reliable source .


Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the

most   innovative  and highest  quality  products available to our customers.



Products Details

FLA 40
Poles 2
Resistive Amps 50
Coil Voltage 24
Hertz 50/60
Locked Rotor Amps 240/480/600 240/200/160
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.
Replaces: Mars/17421,Siemens/45GG20AJ,Hartland Controls/HCCY2XQ04GG303.



Products Application


HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of USA/Canada.


Main Production Data

• Silver Cadmium Oxide Contacts
• Ranges: 20 - 90 FLA
• Poles: 1pole, 1.5pole , 2pole , 3pole, 4pole
• Coil Voltages: 24, 110/120, 208/ 240, 277 VAC
• Terminations: #10-32 screw - 20, 25 & 30 FLA Models,
                          Box Lug - 40, 50, 60, 75 & 90 FLA Models

• Temperature Range: - 40°F to + 150° F / - 40°C to + 65° C
• UL Listed





Certification



Our Factory:



FAQ
     Q1: Can I get a sample for testing?

           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?

           A: Yes, OEM and ODM are available.

         Q3: How can I get the after-service?

          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?

          A: Our products100% self-inspection and testing before packing.

Q5: How about delivery time of the order?

          A: 15-20 days after getting deposit.

         Q6: How about payment terms?

          A:  30% deposit, the rest payment balance against B/L copy .
