Home Use Pure Drinking Water Making Industrial Treatment RO System Filter Purification Plant Machine 500l / h Reverse Osmosis

Every part of the reverse osmosis system

S/N.

Commodity name

Application

Remark

1

Raw water tank

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system

Customer provide for themselves, because big size will result in expensive freight.

2

Raw water pump or called booster pump

Provide needed pressure for every pretreatment filter

We can provide CNP pumps or Grundfos pumps

3

Mechanical filter or called quartz sand filter or sand filter

We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.

4

Activated carbon filter

We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.

5

Water softener, demineralizer, or called Na+ exchanger

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling

6

Security filter or pp filter, or called PP sediment filter

prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm,

7

High pressure pump

Provide needed working pressure for RO system, ensure production capacity of pure water.

CNP pump, Grundfos optional

8

RO(reverse osmosis) system

Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

RO membranes USA Filmtec Dow

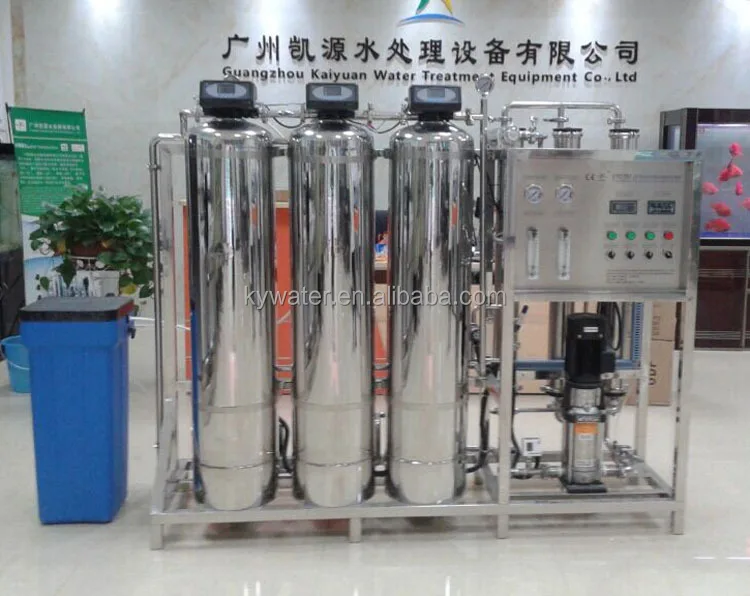

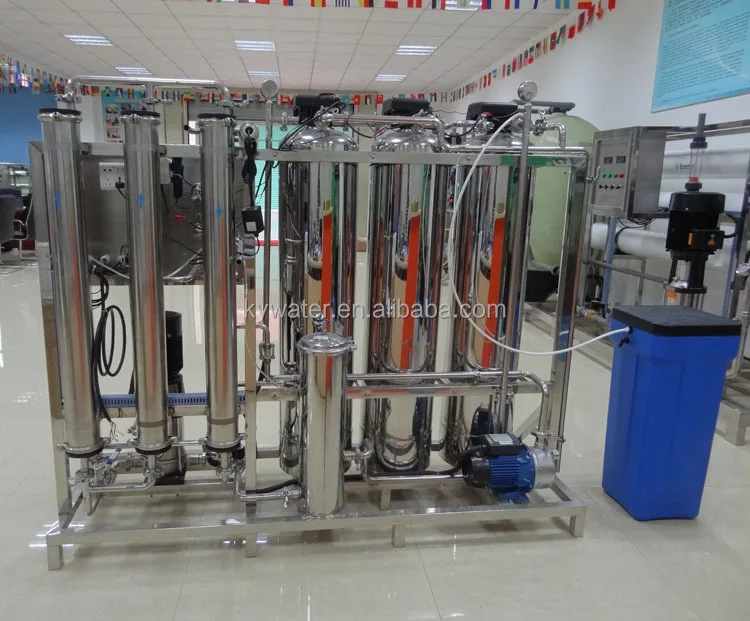

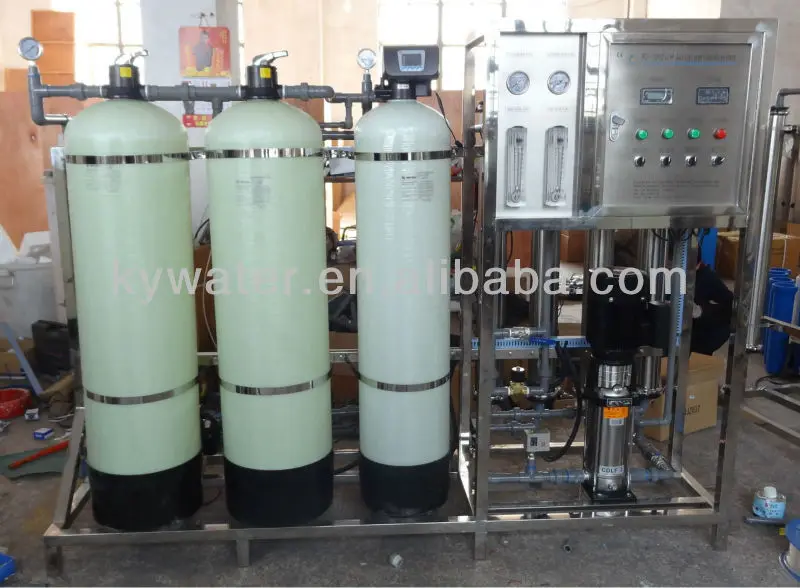

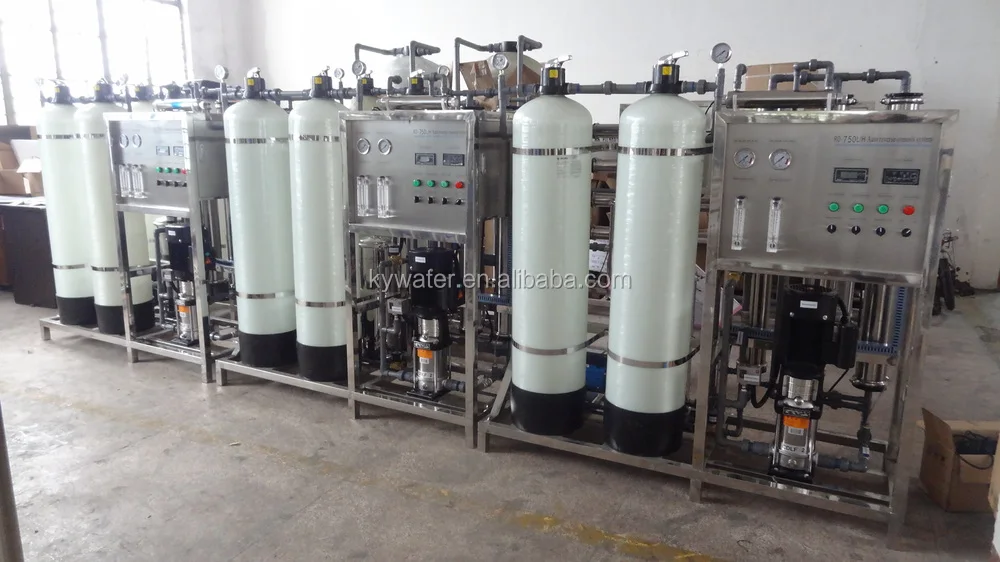

reverse osmosis system pictures

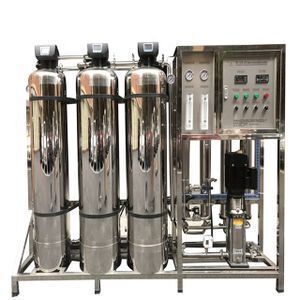

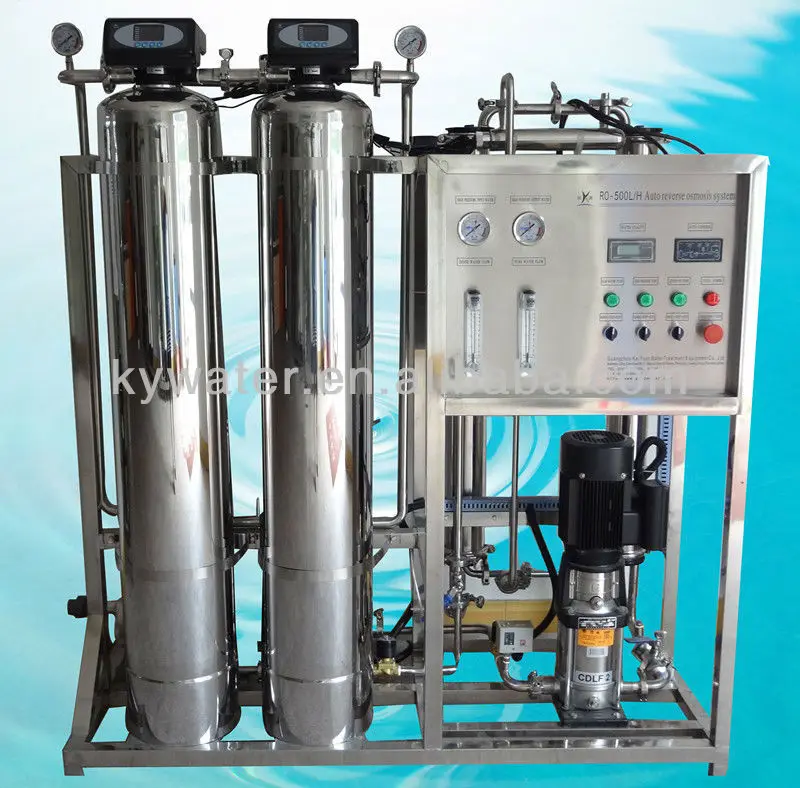

500L/h reverse osmosis system

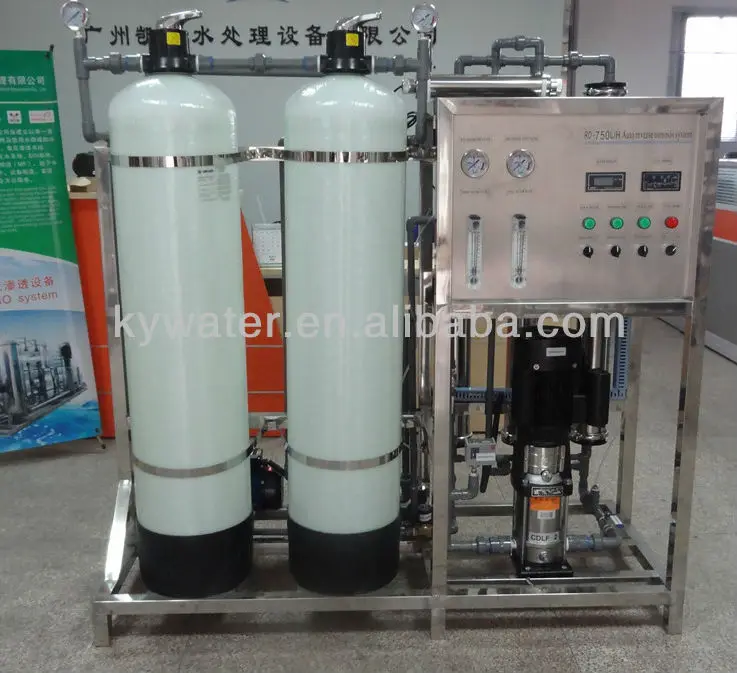

750L/h reverse osmosis system

                                                        1000L/h reverse osmosis system

Above products are suitable for raw water conductivity less than 4000us/cm or TDS less than 2000ppm

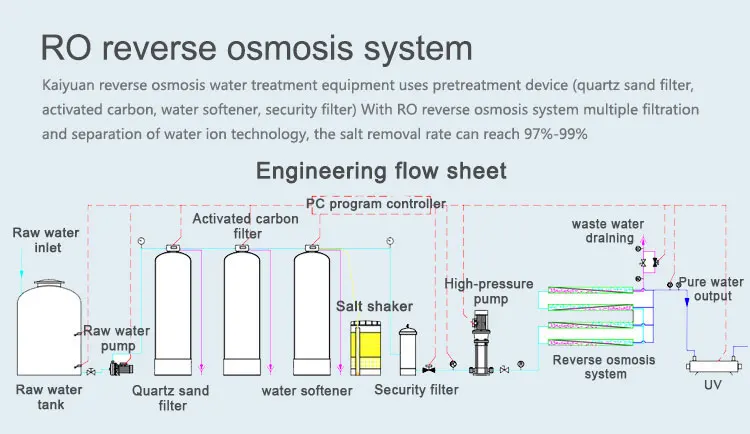

reverse osmosis water treatment system working process

Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV light(optional)→pure water tank(or bottled water filling production line)

Packing & Loading

Frequently Asked Question

1. Q: Are you factory or trading company?

   A: We’re factory, specialized in manufacturing reverse osmosis water treatment plants more than 10 years.

2.Q:How can I know which model is suitable for me?

A. Our model is KYRO-250, KYRO-500, KYRO-1000…, KYRO-500 is 500 liters per hour, it can produce 500 liters pure water. KYRO-1000 can produce 1000 liters per hour. Depends on your requirements for pure water.

3. Q: What kind of water treatment unit is suitable for me?

A: it depends on your raw water quality and your requirement for product water quality, which area the pure water will be used. We have reverse osmosis pure water machine, EDI ultrapure water plants, and ion exchange system, deionizer, ultrafiltration mineral water plants etc.

4. Q. How long have to replace or change the carbon, sand and PP sediment filter cartridge and RO membranes?

A: depends on water quality, generally speaking, quartz sand and activated carbon should be replaced every about 15 months, PP filter cartridges should be replaced every about 1 month, RO membranes have to be replaced every about 2 years.

5. Q: Can you provide oversea installation and debugging service?

A: Yes, oversea installation service is available for us. We have professional installation teams, and have full experience of the oversea site installation.
