DC 5476C 4C 25.4mm Thickness Freewheel Bearing One-Way Sprag Clutch Manufacturer DC5476C(4C) One Way Wedge Type Clutch

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $8.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	DC5476C(4C);	Selling Units:	Single item;
Single gross weight:	0.3 KG;	Precision Rating:	P0;
Single package size:	19X18X10 cm;	Thickness:	25.4mm;
Port:	Shanghai , Ningbo;	Delivery time:	IN STOCK;
Place of Origin:	Jiangsu China;	Package:	Carton Box;
Packaging Detail:	Carton Box / Wooden case package for dc5476 4c one way bearing;	Brand Name:	SUMA;
Package Preview:	;	Sprag Qty:	24;
Material:	GCr15;	Product name:	DC5476 4C one way bearing;
Torque Capacity:	990Nm;	Type:	sprag;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;	Surface Hardness:	HRC60-62;
Clips Qty:	4;	Seals Type:	Open Type;

DC 5476C 4C Freewheel Bearing One-Way Sprag Clutch Manufacturer

Product Description

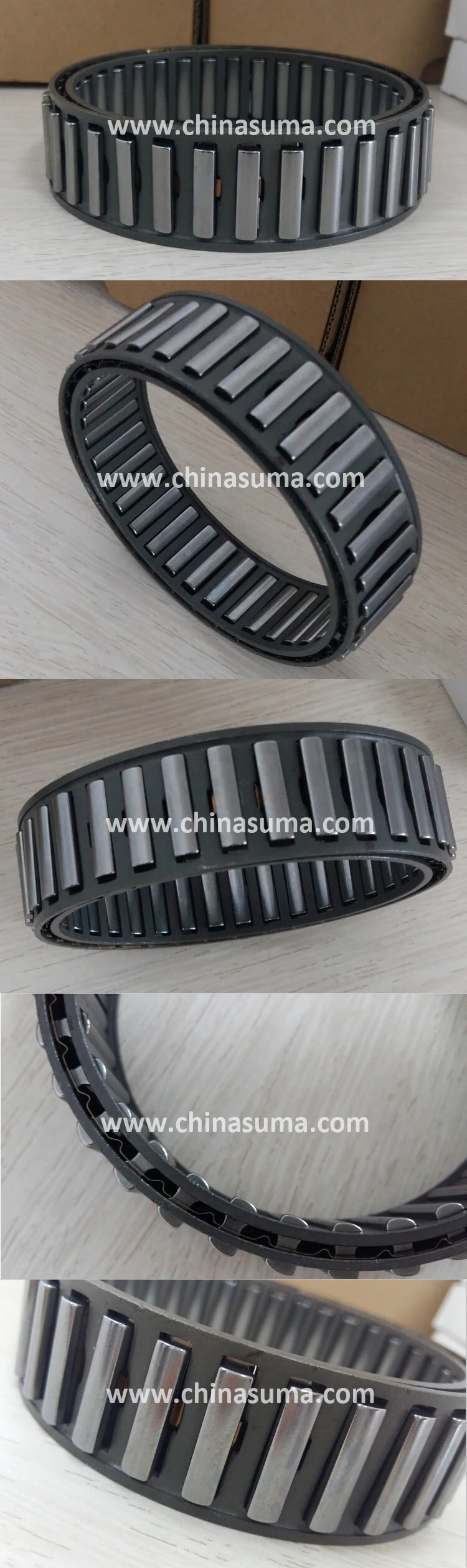

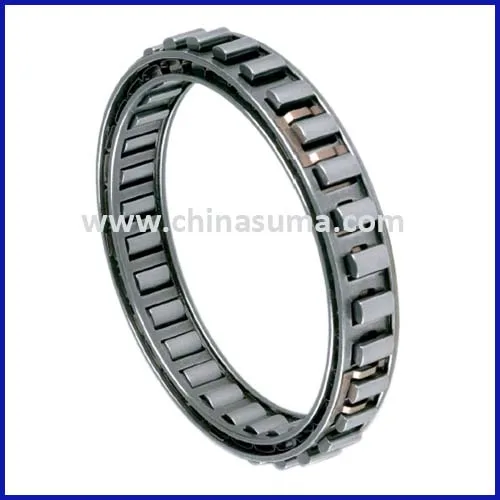

Features of dc one way bearing sprag: DC is a sprag type freewheel bearing cage without inner or outer races.

SPECIFICATIONS
Model	DC5476C(4C)
Material	Chrome Steel GCr15
Inner diameter	54.765mm
Outer diameter	71.425mm
Thickness	25.4mm
Sprag No.	24
Clip No.	4
Torlance	± 0,013
Weight	0.18kg
Package	carton box, wooden box
Delivery time	1 day for sample, 5-7 days for big order
Payment Terms	TT, L/C, D/P, D/A, Western Union, Paypal

Installation Condition: It must be installed in a design providing races,bearing support for axial and radial loads. Lubrication and sealing.

Caution: The sprag tolerance must not be exceeded. Inner and outer races must both have am ini- mum plain widttie, without any recess, to ensure the freewheel functions correctly.

Catalogue of dc one way bearing sprag for your choice

Size		Overrunning speeds		Øa	Øc	Sprag space	emin	Ødmin	Øbmax	Number of clips	Number of sprags	Weight
		Overrunning speeds		+ 0,008- 0,005	± 0,013	Sprag space	emin	Ødmin	Øbmax			Weight
	TKN1 [Nm]	nimax [min-1]	Namax2 [min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]			[kg]
DC2222G	63	8600	4300	22.225	38.885	8.33	10	50	15	-	12	0.03
DC2776	119	6900	3400	27.762	44.422	8.33	13.5	58	18	-	14	0.055
DC3034	124	6300	3100	30.34	47	8.33	13.5	62	20	-	14	0.06
DC3175(3C)	159	6000	3000	31.75	48.41	8.33	13.5	63	24	3	16	0.06
DC3809A	275	5000	2500	38.092	54.752	8.33	16	71	29	-	18	0.085
DC4127(3C)	224	4600	2300	41.275	57.935	8.33	13.5	75	32	3	18	0.09
DC4445A	363	4300	2100	44.45	61.11	8.33	16	79	34	-	20	0.095
DC4972(4C)	306	3800	1900	49.721	66.381	8.33	13.5	86	38	4	22	0.1
DC5476A	525	3500	1700	54.765	71.425	8.33	16	92	42	-	24	0.11
DC5476A(4C)	525	3500	1700	54.765	71.425	8.33	16	92	42	4	24	0.13
DC5476B(4C)	769	3500	1700	54.765	71.425	8.33	21	92	42	4	24	0.18
DC5476C(4C)	990	3500	1700	54.765	71.425	8.33	25.4	92	42	4	24	0.2
DC5776A	604	3300	1600	57.76	74.42	8.33	16	98	44	-	26	0.11
DC6334B	806	3000	1500	63.34	80	8.33	21	104	50	-	26	0.175
DC7221(5C)	675	2600	1300	72.217	88.877	8.33	13.5	115	56	5	30	0.14
DC7221B	1279	2600	1300	72.217	88.877	8.33	21	115	56	-	30	0.185
DC7221B(5C)	1279	2600	1300	72.217	88.877	8.33	21	115	56	5	30	0.21
DC7969C(5C)	2038	2400	1200	79.698	96.358	8.33	25.4	124	61	5	34	0.28
DC8334C	2055	2300	1100	83.34	100	8.33	25.4	132	65	-	34	0.27
DC8729A	1250	2200	1100	87.29	103.96	8.33	16	134	67	-	34	0.165
DC10323A(3C)*	1612	1800	900	103.231**	119.891	8.33	16	155	80	3	40	0.205
DC12334C*	4800	1500	750	123.34**	140	8.33	25.4	184	96	-	50	0.4
DC12388C(11C)	4875	1500	750	123.881	142.88	9.5	25.4	196	96	11	44	0.4
