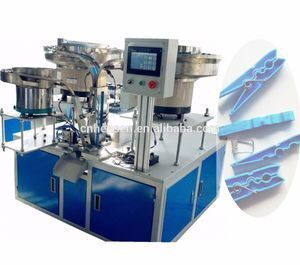

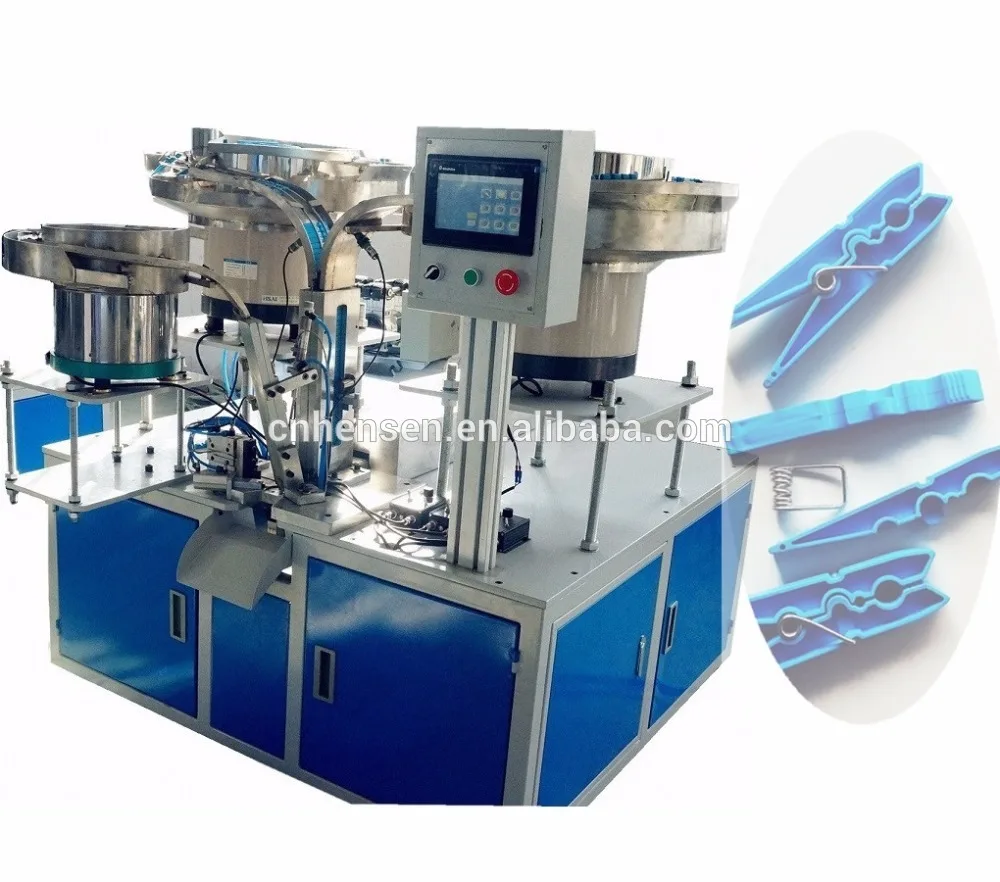

Fully Automatic plastic clothespin assembly machine

Supplier: Ruian Hensen Automatic Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Simon Yu
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China (Mainland);	Voltage:	220V/380V;
Capacity:	45pcs/min;	Port:	Ningbo China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Dimension:	135013001500mm;
Machine Name:	Clothes peg assembly machine;	Supply Ability:	10 Set/Sets per Month;
Type:	Fully automatic;	Application:	Automatic assembly;
Usage:	Assembly clothespin;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	Wooden box packing;	Brand Name:	Hensen;

1. Features:

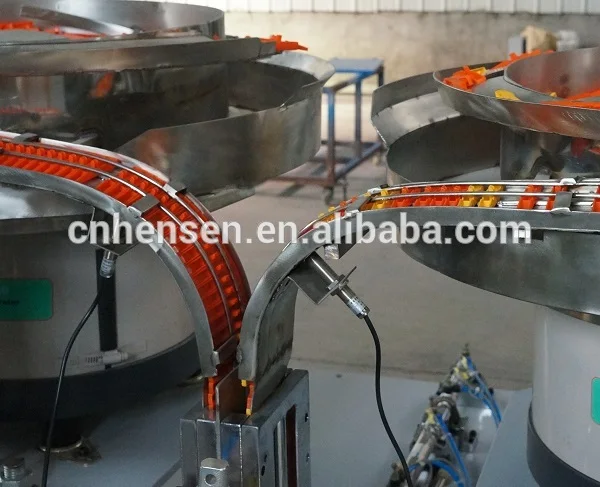

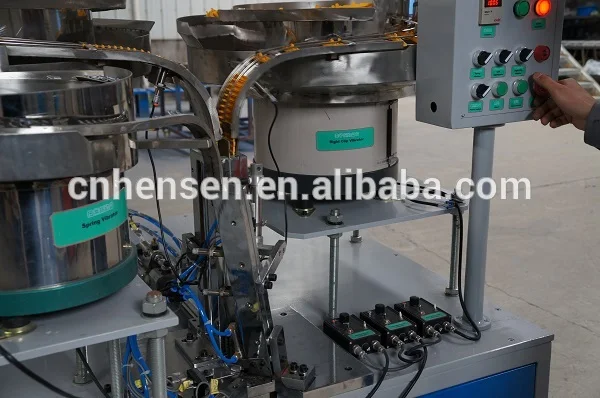

1. Automated delivery system, two sets of clip feeding system, one set spring feeding system

The machine with photo sensor and automatic assembly when the material is full.
3. This machine has automatic assembly counting function, automatically shut down when reach to set quantity
4. If the feed is not expected in time, after full material the machine will run automatically. after when lack of material of no material the machine will shutdown and alarm.
5. The machine with PLC program control system, easy to operate;
6. One operator can run more than one machine simultaneity

2. Technical Parameters:

Capacity	35-50pcs/min
Power supply	220V-50Hz
Clip vibrator	2 sets
Spring vibrator	1 set
Air supply	0.6-0.8Mp
Power	1.8Kw
Dimension	135013001500mm ( L* W* H)
operation interface	Touch screen
Weight	400kg
