Brand Name: | SuperbMelt; | Voltage: | 220 V; |
Certification: | ISO9001:2000, CE; | Weight: | 100kg; |
After-sales Service Provided: | Field maintenance and repair service; | Ultimate vacuum: | -0.1 MPa; |
Port: | Shenzhen; | Power: | 4.5kw,4.5kw; |
Gas Pressure: | Max. 3.5 MPa; | Key Selling Points: | Long Service Life; |
Warranty of core components: | 2 years; | Showroom Location: | India; |
Technical support: | Technical support; | Control System: | PLC; |
Place of Origin: | Guangdong China; | Machinery Test Report: | Provided; |
Supply Ability: | 200 Set/Sets per Month; | Condition: | New; |
Cooling: | Water chiller or tap water; | Core Components: | PLC; |
Machine Type: | Jewellery casting machine; | Packaging Detail: | Plywood box; |
Payment Terms: | L/C,T/T; | Applicable Industries: | Precious metal processing; |
Warranty: | 1 Year; | After Warranty Service: | Online support; |
Marketing Type: | Hot product; | Local Service Location: | India; |
Metal capacity: | 300g gold, platinum or 150g silver; | Video outgoing-inspection: | Provided; |
Application: | Gold, karat gold,silver,Platinum and copper; | Melting Method: | Induction Heating; |
Jewelry vacuum casting machine is customized to melt and cast 1-150 g jewelry gold, platinum, silver and other precious metal.

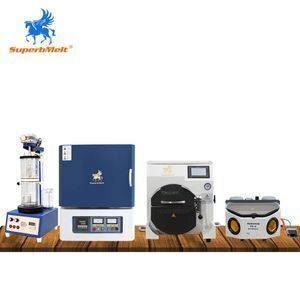

SuperbMelt jewelry casting kits are designed of small quantities of jewelry casting, jewelry sample making, dental, and some precious metal DIY casting;

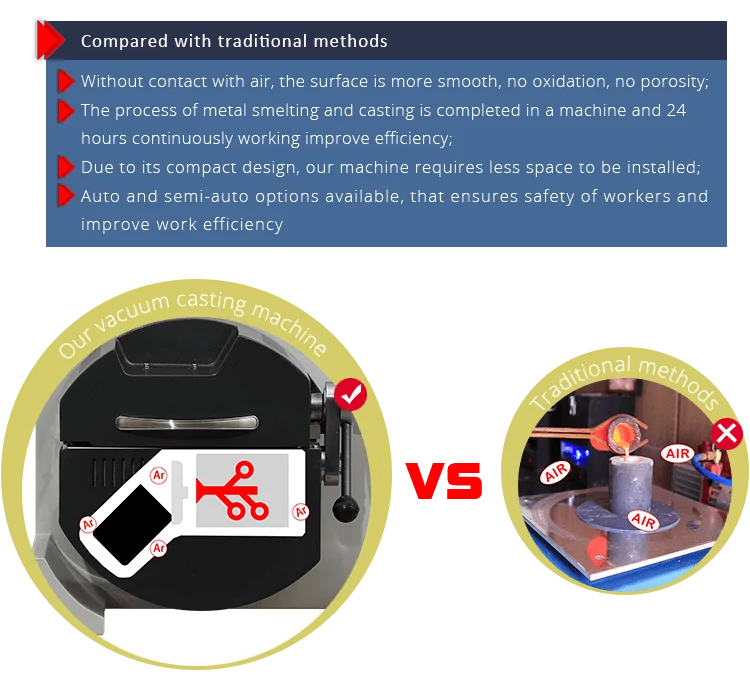

What are the advantages of our machines in comparison with traditional methods?
Advantages of SuperbMelt mini vacuum jewelry casting kits
1. The machine uses a quartz crucible, which can cast most of every metal at a maximum temperature of 2600 degrees, including gold, silver, platinum, palladium, etc.
2. The jewelry melting and casting is under vacuum with argon pressure to protect your precious jewelry from oxidation. It achieves high density, high compactness, with almost porosity-free and reaches basically non-shrinkage cavity casting.
3. Compact design, small size. Perfectly suited for small jewelry castings and small jewelry series
4. With PLC control system, makes the casting process more intelligent. The accuracy of the temperature control is accurate ±2°C.
5. With various alarm system, the machine will stop working immediately to protect it if any error occurred.
6. Built-in vacuum pump, compared to other machines on the market, those are external, more savings in the extra cost of vacuum pumps, less space.
7. Automatic casting, including the automatic flip of the casting room. Oblique crucible and gypsum mold, when the melting is completed, the casting chamber will automatically rotate, so that the metal liquid automatically into the gypsum mold. This process is fully automated, requires no man-made operation, cost savings and manpower savings.
8. 4.5 kW induction generator for quickly reaching the melting temperature.

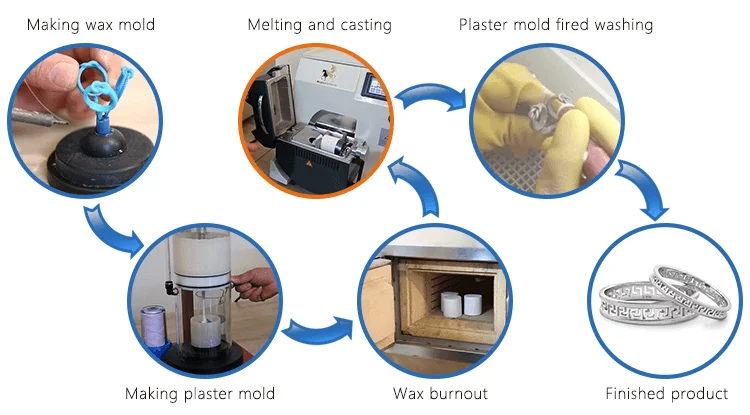

Casting process of small quantity jewelry casting
Parameters for vacuum casting machine
Mini jewelry casting machine parameter
Model | SPB-MVC150 |
Power Requirement | 220V |
Power Consumption | 4.5kw |
Maximum Temperature | 2600 ℃ |
Melting Method | Induction Heating |
Capacity | 150g Gold |
Application | Gold, silver, platinum, palladium, steel, copper |
Control System | PLC |
Melting Time | 5-6mins |
Gas Pressure | Max. 3.5 MPa |
Pressurized Atmosphere | Argon |
Ultimate vacuum | -0.1 MPa |
Type of Crucibles | Quartz crucible |
Cooling System | Water cooling |
vacuum pump | built-in |
automatic vacuum function | Y |
Flip function | Automatic flip and vacuum casting |
Mini vacuum investment powder mixer parameter
Model | SPB-MIPM1 |
Power source | 220V |
Power | 350w |
Dimension | 540*510*390mm |
Weight | 18kg |
Mini wax burnout furnace parameter
Model | SPB-MWF1 |
Power source | 220V |
Power | 5kw |
Chamber size | 300*200*120mm |
Max Temperature | 1200 ℃ |
Weight | 60kg |
