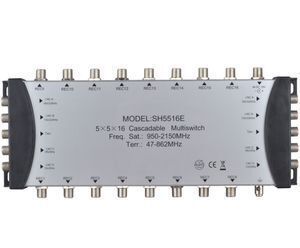

5x5x16 Cascadable Multiswitch for Quattro LNB
(SH5516E)
Featrues:
1) 4 satellite IF and 1 terrestrial TV inputs for 16 satellite receiver
2) 16 satellite IF inputs selected by 13V,18V,22KHz
3) Low insertion loss, high isolation
4) SAT-IF-PATHs to the subscribers are active and supplied by the receiver
5) Sheet metal housing with plastic holder
6) Design good for indoor usage
7) External adapter available
8) Cascade type
Specifications:
Typical | QC Limit | Remark | ||
Frequency Range | Terr:47-862MHz SAT:950-2150MHz | |||
Inputs | 4 SAT+1 Terr. | F connectors | ||
Outputs | 16 Receiver | F connectors | ||
Thru Loss | Terr. |
4dB |
5dB | |
SAT |
4dB |
5dB | ||
Tap Loss | Terr. |
3dB |
5dB | |
SAT |
1dB |
3dB | ||
Return Loss |
Terr. | 12dB | 10dB |
|
SAT |
12dB | 10dB | ||
Stop band attenuation | Terr. | 28dB | 25dB | |
SAT | 28dB | 25dB | ||
Isolation | H/V | 30dB | 25dB | |
REC-REC | 30dB | 25dB | ||
Power Adapter | IN:100-240V OUT:18V 1200mA | |||
Dimensions(L,W,H) | 280x125x43 | mm |
