Output: | 2/3/4way; | Sample Service: | free sample; |
Housing material: | zinc diecast case; | Product name: | 2 way satellite splitter; |
All ports: | DC power pass; | Place of Origin: | Guangdong, China; |
Brand Name: | HJ; | Feature: | Low insertion loss, high isolation; |
Certification: | ce; | Supply Ability: | 10000 Pieces per Month; |
Packaging Detail: | white box/giftbox packing; | Frequency Range: | 5-1000MHZ/5-2400MHZ; |
Package Preview: | ; | Port: | HK/shenzhen; |
Max. passing current: | 0.5A, DC 24V; | Warranty: | 12 month; |
Payment Terms: | L/C,T/T; | Model Number: | HJ-2 sp; |
Input: | 1; |

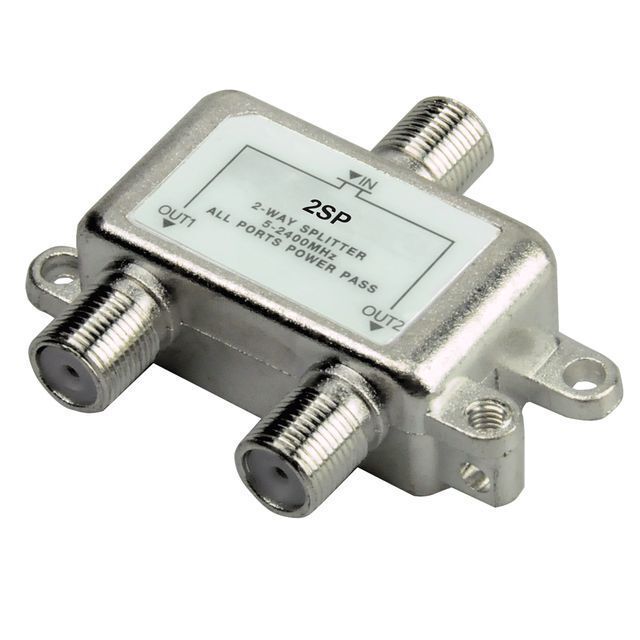

2 way satellite splitter Coaxial Cable Splitter 5-1000/2400 MHz RG6 Compatible CATV Indoor RF Cable TV Splitter
Featrues: |
1) 1 in 2 out |
2) Small size and light weight |
3) Low insertion loss, high isolation and return loss |
4) SAT-IF-PATHs to the subscribers are active and supplied by the receiver |
5) Zinc die cast housing, nickel plated |
6) Design good for indoor usage |
Specifications | ||||
Specifications Item | Typical | QC Limit | Remark | |
Frequency Range | SAT:5~1000MHz | |||
Inputs | 1 SAT | F connectors | ||
Outputs | 2 Receiver | F connectors | ||
Insertion Loss | SAT | 2dB | 4dB | |
Return Loss | SAT | 12dB | 10dB | |
Stop band attenuation | SAT | 25dB | 20dB | |
Isolation | H/V | 30dB | 25dB | |
REC-REC | 30dB | 25dB | ||
22KHz Frequency Range | 22 ± 2KHz | |||
Vp-p | 650 ± 250mV | |||
Switching Voltage | V:10~15V H:16~20V | |||
Dimensions (L,W,H) | 88×72×16 | mm |

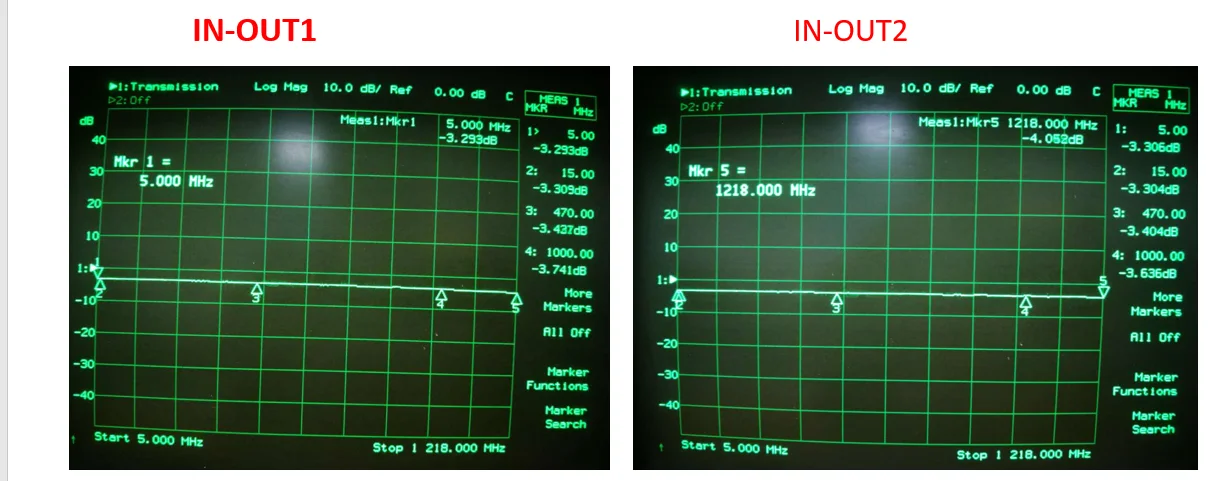

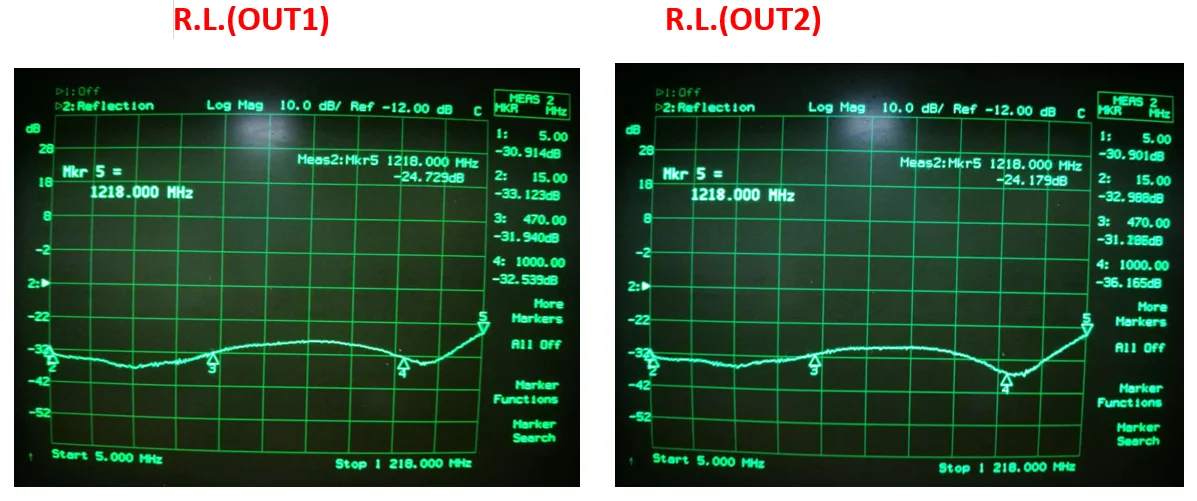

products curve
Application:
Used for splits a single digital signal to up to 2 /3/4 devices. Designed for use with HD TV signals, satellite TV, and high speed INTERNET modems as well as cable TV, amplified Antennas, amplifiers, and other coaxial devices. Compatible with RG59 and RG6 coax cable.
