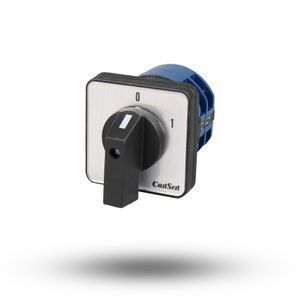

Cansen LW26-32 0-1 3P Rotary cam switch 0-1 3p electrical control switch motor

Supplier: Wenzhou Changjiang Electrical Appliance Factory
Region: Zhejiang, China
Contact: Mr Davy Yan
Price: $8.34 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Pole:	3pole;	Brand Name:	Cansen/OEM;
Certification:	CE, TUV;	Place of Origin:	Zhejiang China;
Payment Terms:	Western Union,T/T;	Max. Voltage:	690V;
Port:	Ningbo/shanghai;	Layer:	2;
Packaging Detail:	one switch in a box , boxes in a carton;	Max. Current:	32A;
Whether the smart:	No;	Supply Ability:	2000 Piece/Pieces per Week;

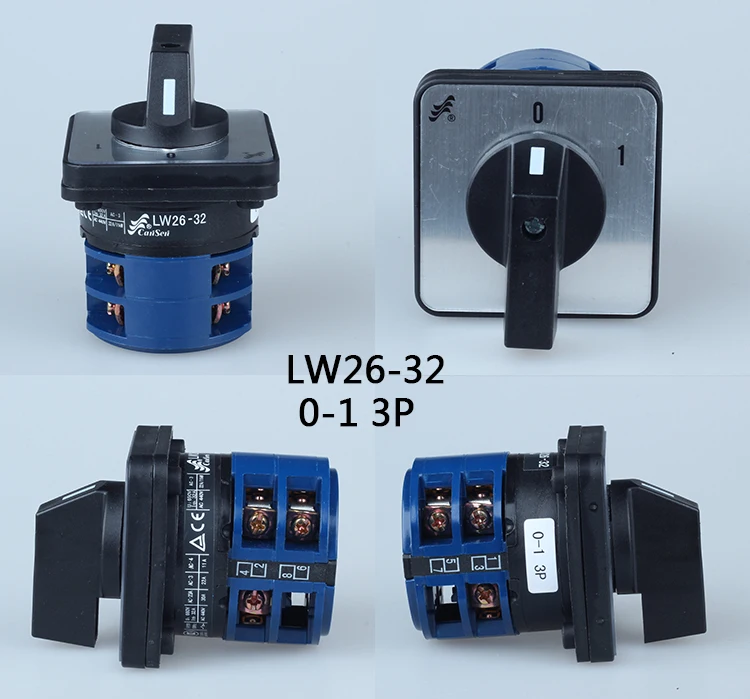

Handle:	I;	Model Number:	LW26-32 0-1 3P;
Installation:	Square plate;	Mechanical Life:	100000,120/hour;

Product Description

1.Products Introduction

The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.

And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.

The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 10 current ratings:10A,20A,25A,32A,40A,63A,125A,160A,250A and 315A.

They were designed for multiple functions,wide variety of applications.
The LW26-10,LW26-20,LW26-25,LW26-32F,LW26-40F and LW-60F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2,LW5,LW6,LW8,LW12,LW15,HZ5, HZ10,and HZ12.
The LW26 series rotary switch has two derivatives,LW26GS Pad-lock type and LW26S Key-lock type.
Both of them are applicable in circuits when an physical control is required.
We can equip protective box(IP65) for 20A to 250A.

2.Working Conditions

a.Ambient temperature DO NOT exceed 40℃, and the average temperature,measured over a period of 24 hours,

DO NOT exceed 35℃.

b.Ambient temperature should not be below -25℃.

c.Should not be isstalled above 2000m above sea level.

d.The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.

Specification	LW26-32

	LW26-32F
Rated insulation voltage	660/690
Rated thermal current	32
Rated working voltage	240	240
Rated working current	/	/
AC-21A	32	32
AC-23A	30	30
AC-2	30	30
AC-3	22	22
AC-4	11	11
AC-15	14	6
DC-13	/	/
Power	/	/
AC-23A	7.5/4	15/7.5
AC-2	7.5	15
AC-3	5.5/4	11/5.5
AC-4	2.7/1.5	5.5/3

1.Installation Conditions

a.A clean environment is required

b.Please follow our manual

2.Order Procedure

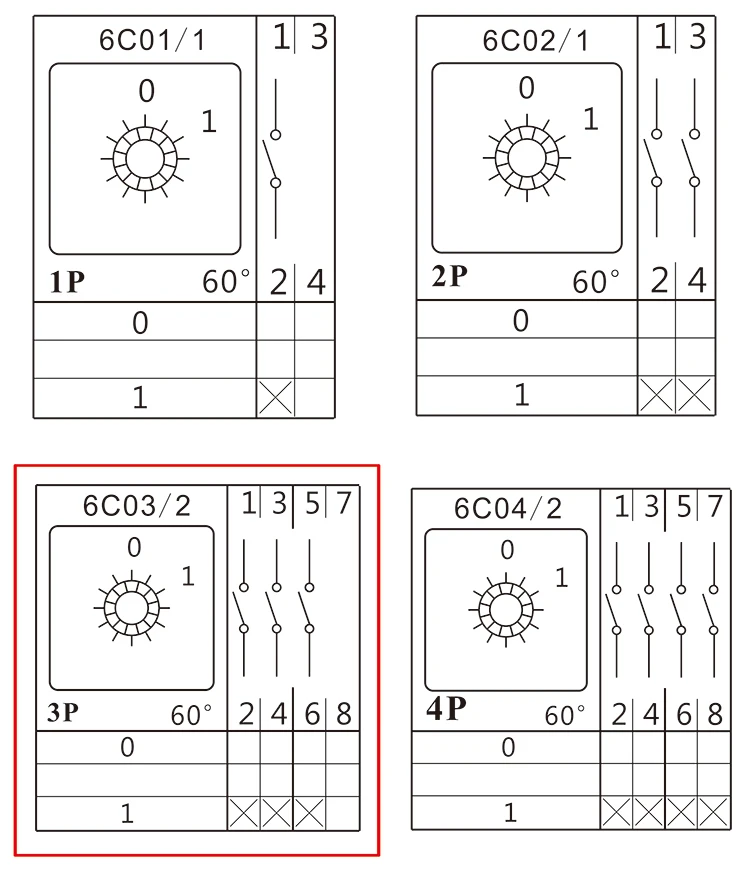

When placing an order please specify the contact diagram of the product you require.The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D,LW5D,LW6D,LW8D,LW12,LW15,HZ5D and HZ25D.Our factory have publishedWhich will help you to specify the contact diagram.

In addition,please specify the current rating, mounting plate,handle type,color and quantityas well.

For instance:

When ordering 20A,rotary angle 60°, character code C,contact diagram code 5391, M1 plate, black R handle 20 unites. The order can be: LW26-20.6C5391/2A11R(M1R)20units.

Due to the update of the technologies, we reserve the righting of updating the catalogue without further notices.
