Single package size: | 30X25X30 cm; | Customized support: | OEM; |
Cooling type: | Straight cold; | Size: | 600*665*1150mm; |
Brand Name: | HELI; | Single gross weight: | 5.0 KG; |
Model Number: | DW-86L58; | Power (W): | 390W; |
Voltage (V): | 220V/50HZ 110V/60HZ; | Material: | Stainless Steel 304; |
Temperature Range: | -65~-86℃; | Certification: | UL; |
Package Preview: | ; | Product name: | DW-86L58 -86 degree ultra low temp laboratory freezer; |
Compressor: | SECOP; | Place of Origin: | Zhejiang China; |
Selling Units: | Single item; | Packaging Detail: | Packaging type :Plywood boxes Size:870*820*940mm G.w:105KGS; |
Classification: | Laboratory Refrigeration Equipments; | Warranty: | 1 Year,1 years; |
zer
DW-86L58 -86 degree ultra low temperature laboratory freezer
Product Parameters
Model No. | DW-86L58 |
Product name | -86 degree ultra low temp laboratory freezers |
Inside temperature | -65~-86℃ |
Rated input | 390W |
Power supply | 220V/50HZ or110V/60HZ |
Type | Horizontal |
Temperature display | Digital |
Thermostat | Electronic |
environment temperature | 10℃~32℃ |
Temp Sensor | PTC |
Capacity | 58L |
Fan for condenser | EBM |
Refrigeration system | Single-stage |
Refrigeration type | Straight cold |
Compressor | SECOP |
N.W | 78KGS |
Interior dimension | 364*405*410mm |

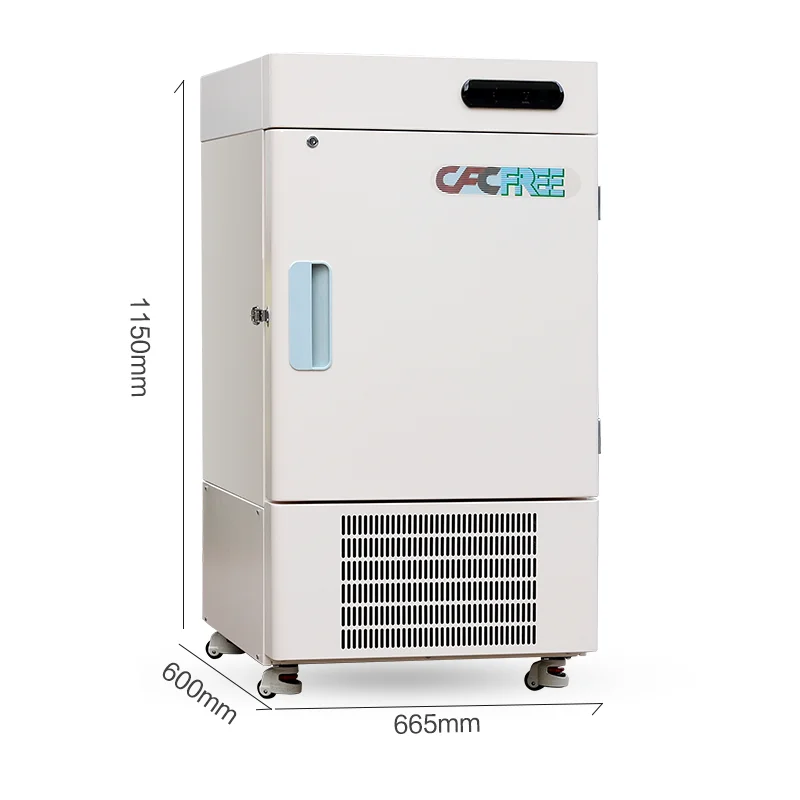

Unit dimension | 600*665*1150mm |
Packing dimension | 630*695*1250mm |
Features
No.of compressors
|
1/SECOP |
Visual/acoustio alarm
|
YES/YES |
Hight/low tempaterature alarm
|
YES (Adjustable ) |
Probe faliure alarm(sensor)
|
YES |
Digital display
|
YES |
Defrost manual/auto
|
Manual |
Castors
|
YES |
Chart recorder
|
NO |
Basket(PCS)
|
NO |
Lighting
|
NO |
Door Lock
|
YES |
Inner liner material
|
304 stainless steel |
External material | Power coated steel |
Functional description
Japanese hot sell -86 158L capacity Horizontal cryogenic ULT Freezers
Applications:
This product is suitable for aquatic products, ultra-low temperature refrigeration and fresh tuna and other seafood.
Product Features:
The Cryogenic DW-86L58 Ultra Low Temperature Freezer is Ideally suited for cryogenic and long-term storage in laboratories and no loger uses harmfull CFC's to achieve a ultra low temperature of -86ºC. The Cryogenic DW-86L58 is a mechanical cryogenic freezer.
DW-86L58 technology maximizes storage capacity over conventionally insulated models. Whatever your preservation needs are, Our provides the right equipment to meet your exact requirements. our preservation systems employ advanced technology to insure a high precision temperature environment.
Compared to liquid nitrogen systems, Cryogenic DW-86L58 offers the following advantages:
1.Lower running cost.
2.Easy maintenance
3.No occurrence of contamination

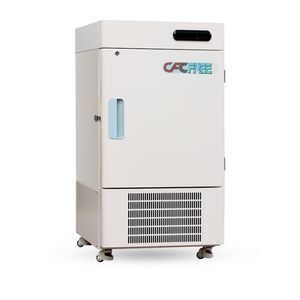

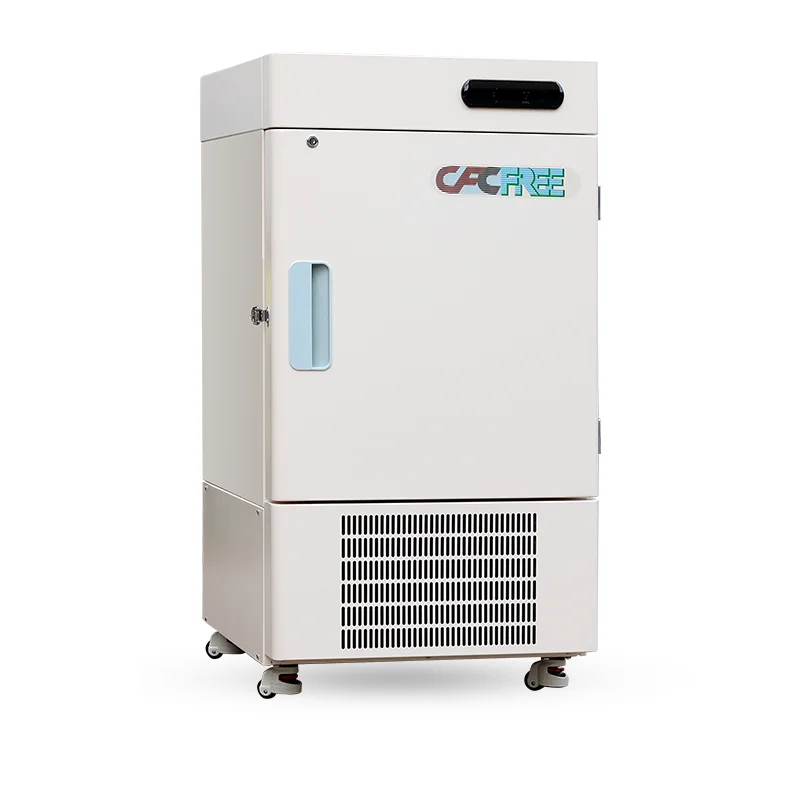

Product Overall Picture

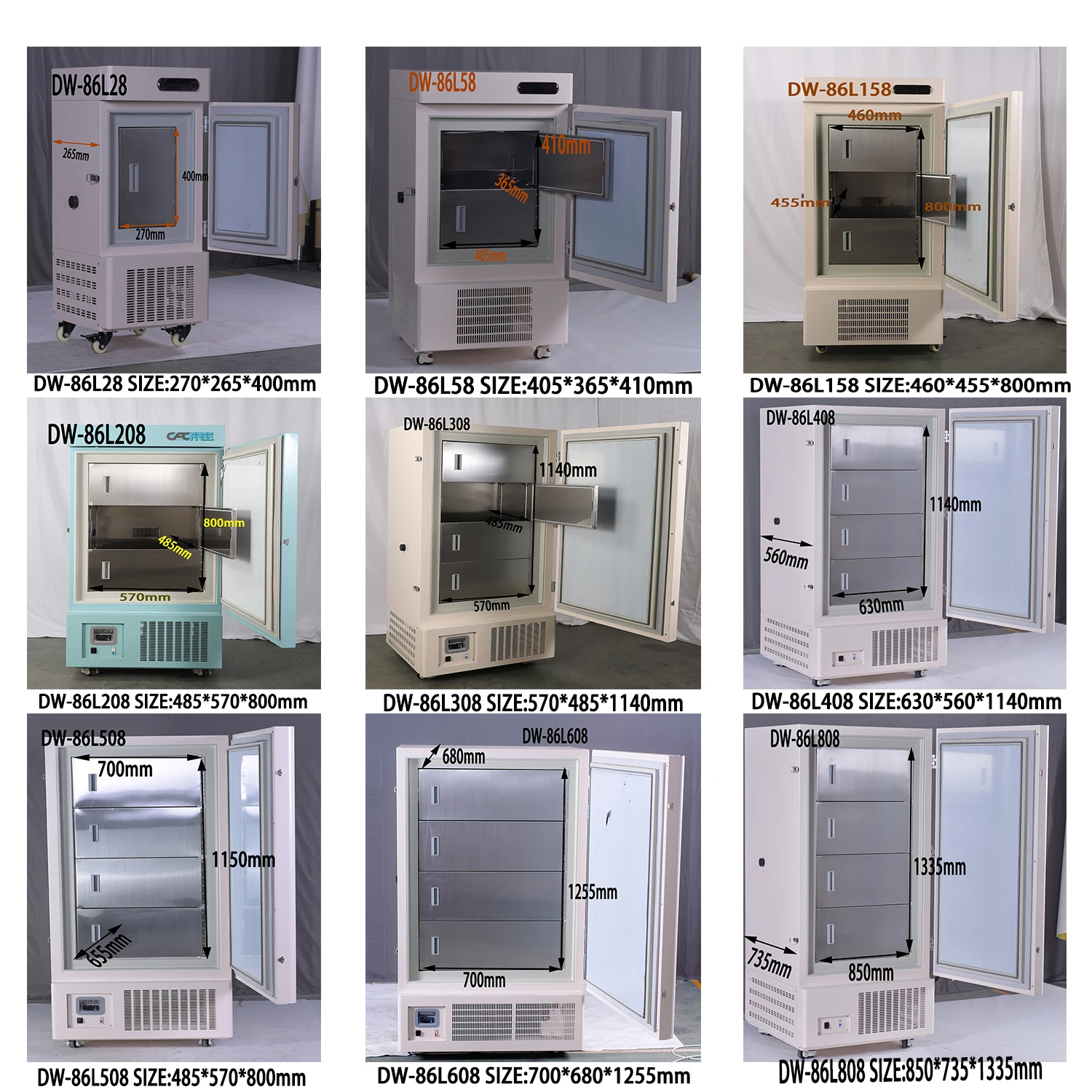

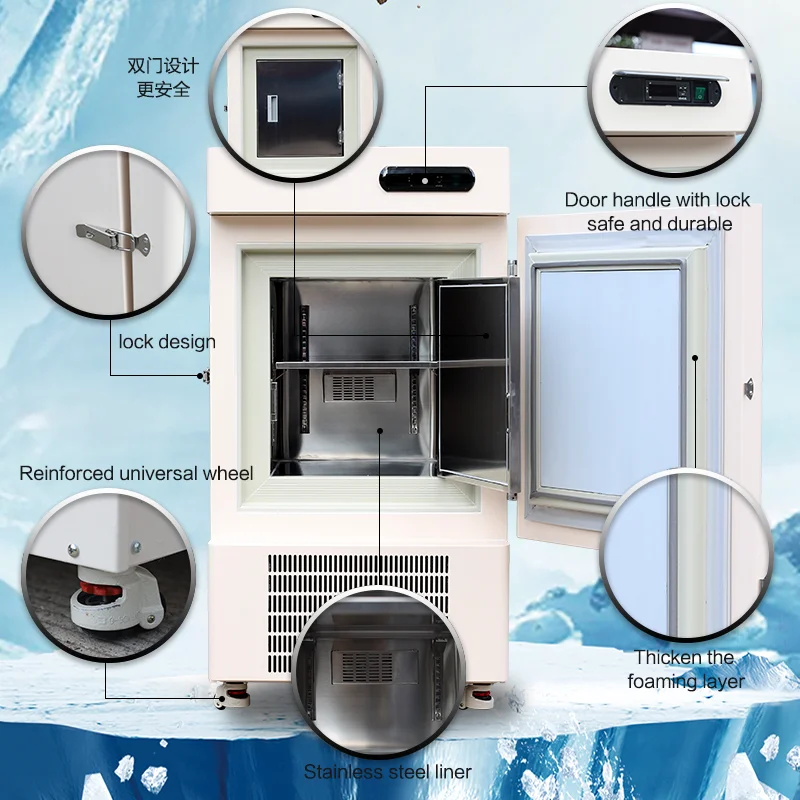

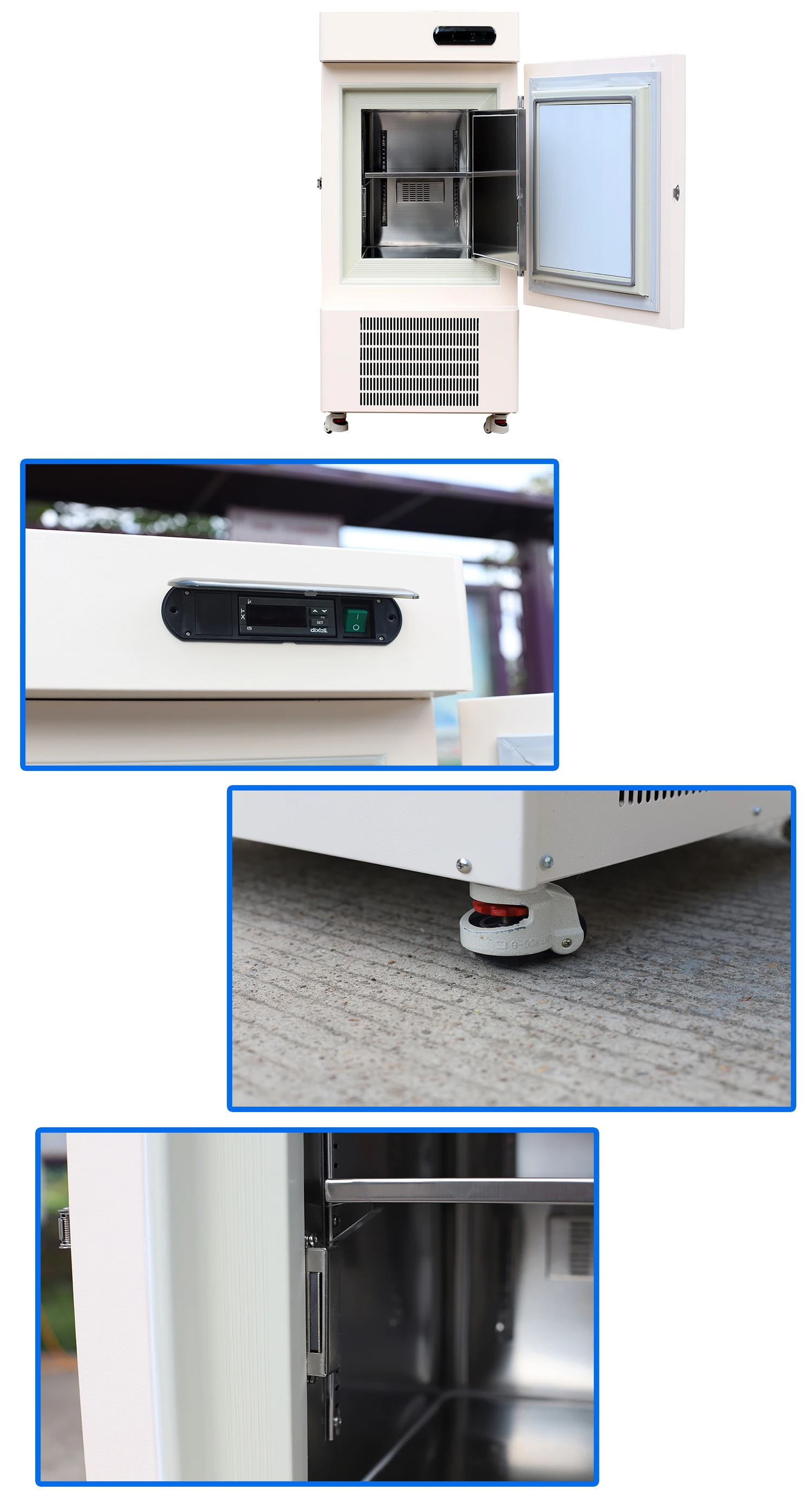

Product Detail Picture

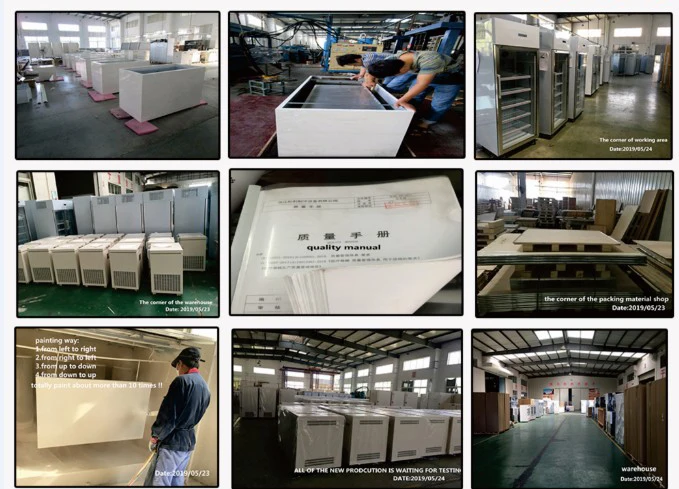

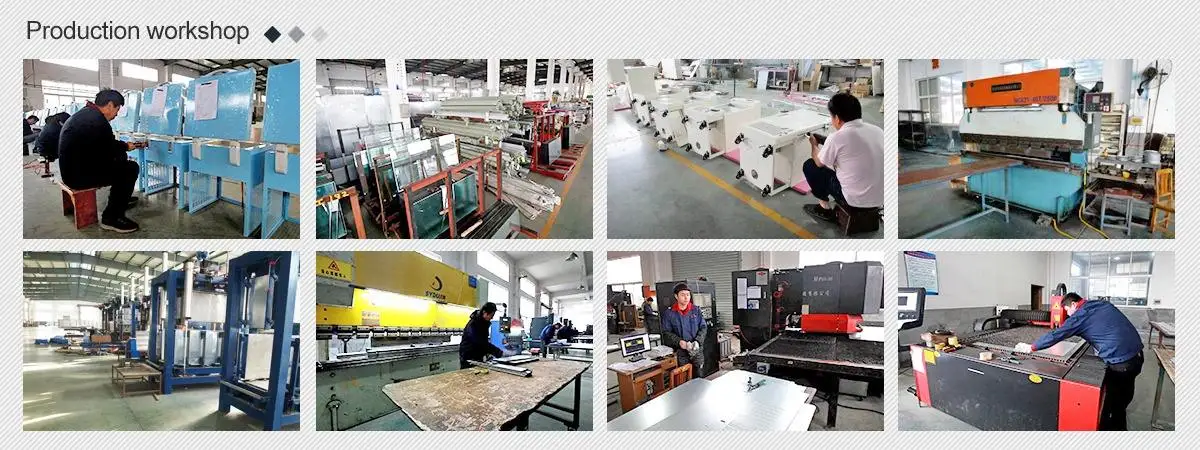

Workshop

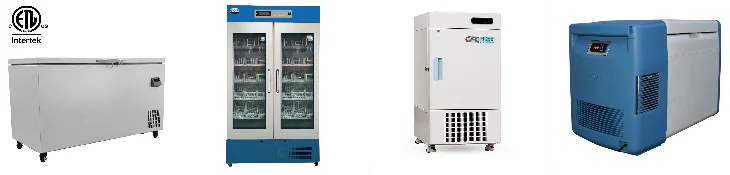

Certificate
Package
Packaging type | Plywood boxes |
Package dimensions | 630*695*1250mm |
G.W | 98G |
Shipping instructions
Because our products have refrigerants and cannot be transported by air, the transportation of this product is all by sea.
This website enforces FOB NINGBO's price terms. Please read this article carefully. If you do not agree with the shipping, please do not buy it. Thank you
