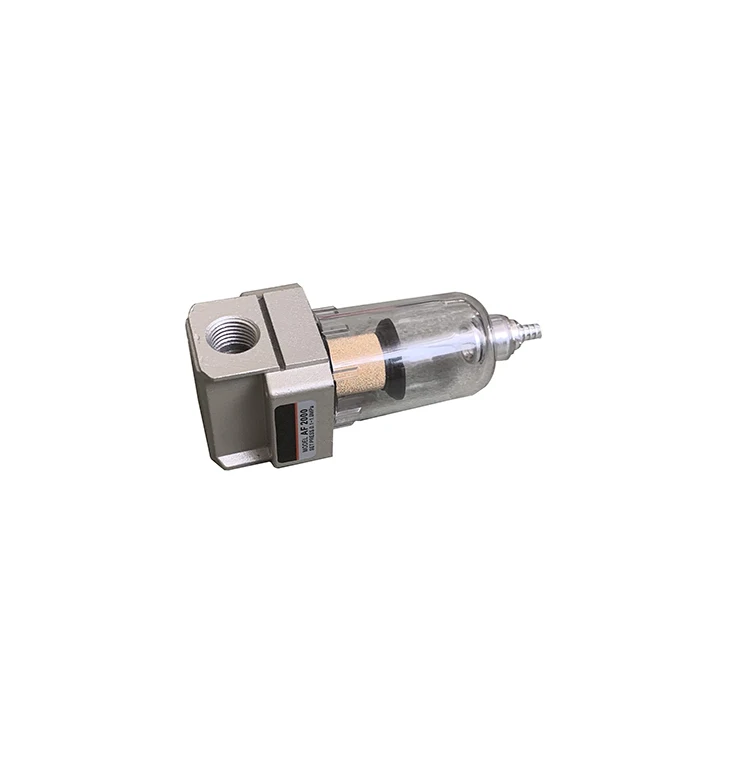

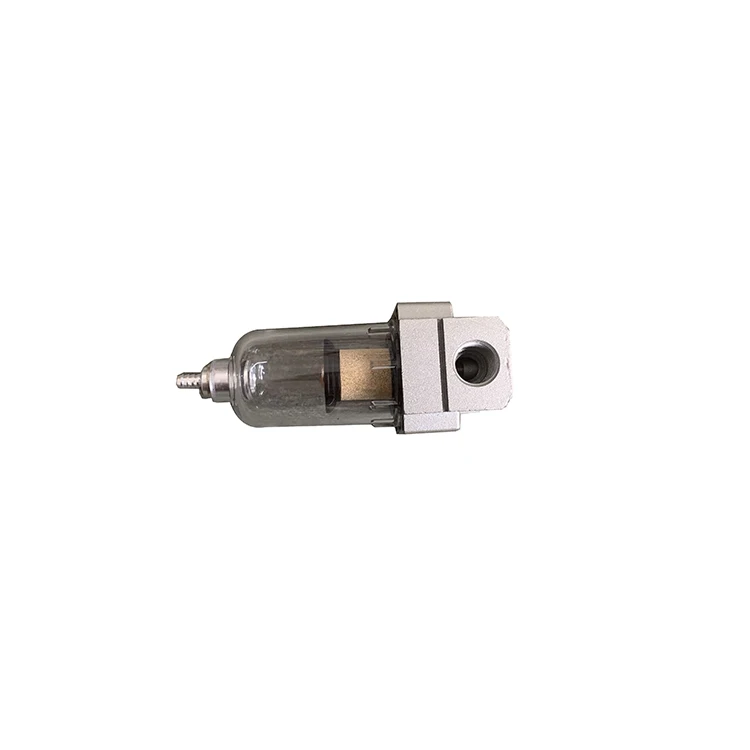

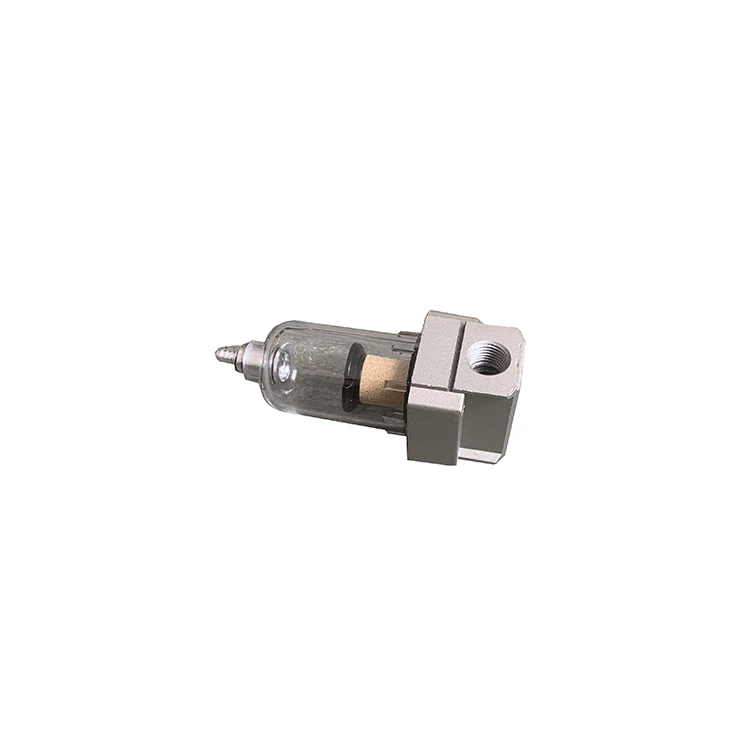

AF2000-02 Compressed Air Pneumatic Filter G1/4'' Pneumatic Air Filter Regulator
-
Supplier: Ningbo Kuangshi Renjie Automation Equipment Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Yanyan Chen -
Price: $2.00 /piece -
Min. Order: 1 piece
| Payment Terms: | L/C,Western Union,T/T; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; |
| Port size: | G1/4''; | Port: | Ningbo; |
| Place of Origin: | Zhejiang China; | Brand Name: | KSRJ; |
| Max.Working Pressure: | 1.0Mpa; | Video outgoing-inspection: | Provided; |
| Working medium: | Air; | Filter element: | 25 or 40 micron; |
| Bowl materia: | Polycarbonate; | Condition: | New; |
| Packaging Detail: | This is a full-box package, carton pack, which can hold 35 pieces per case. Use the tray to load the product into the container. Waterproof film packaging is also available outside the product; | Local Service Location: | None; |
| Type: | Filter; | Marketing Type: | New Product 2020; |
| Supply Ability: | 10000 Set/Sets per Month; | Warranty: | 6 months; |
| Material: | Box,Carton; | Showroom Location: | None; |
| Working Temperature: | 5~60℃; | Machinery Test Report: | Provided; |
| After Warranty Service: | Video technical support; | Product name: | AF2000-02 Air Pneumatic Filter G1/4'' Pneumatic Air Filter Regulator; |
| Body material: | Aluminum Alloy; | Adjustable pressure range: | 0.05~0.85Mpa(0.5~8.5kgf/cm2); |
|
Model |
AF2000-02 |
|
|
Port size RC(PT) |
1/4'' |
|
|
Capacity of bowl(cm²) |
25 |
|
|
Flow rate(L/Min) |
750 |
|
|
Fluid |
Air |
|
|
Proof pressure |
1.5Mpa(15.3kgf/cm²) |
|
|
Max.operating pressure |
1.0Mpa(15.3kgf/cm²) |
|
|
Ambient & fluid temperature |
5~60°C |
|
|
Nominal filtration rate |
5µ M |
|
|
Main parts material |
Body |
Aluminum alloy |
|
Bowl |
PC |
|
|
Bowl guard |
AF1000~AF2000:without AF3000~AF5000:with(lron) |
|
Q: What is your main market?
A: Our main market is Middle East, southeast Asia, Africa and other developing countries
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
-
