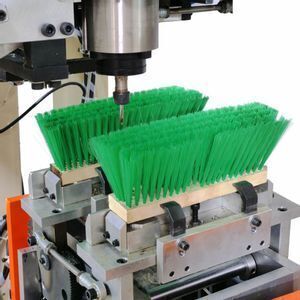

5 axis 2 drilling and 1 tufting broom making machine

Supplier: Jiangmen Meixin Comb Brush Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jody Miss
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Power:	1000W;
Application:	For broom making machine;	Payment Terms:	T/T,EXW;
Port:	Jiangmen;	Automatic Grade:	Automatic;
Stepless speed:	Frequency converter using Delta inverter;	Warranty:	one year;
Moter:	China WANXIN servo motor;	Brand Name:	Meixin;
Dimension(LWH):	250014001980mm;	Production Capacity:	2500Pieces/10 Hours,2500 pieces/10 hours;
Controller System:	PLC(ADTECH CNC Control System);	Supply Ability:	200 Set/Sets per Month;
Packaging Detail:	packing way:the first layer packed with thin film,the second covered with wooden box;	Power(W):	1000W;
Voltage:	380VAC/220VAC,380VAC/220VAC;	Lubrication:	TBI straight line guide rail;
Condition:	New;	Certification:	Patent Certificate,CE,Patent Certification;
Weight:	about 1000kgs;	Place of Origin:	Guangdong China;

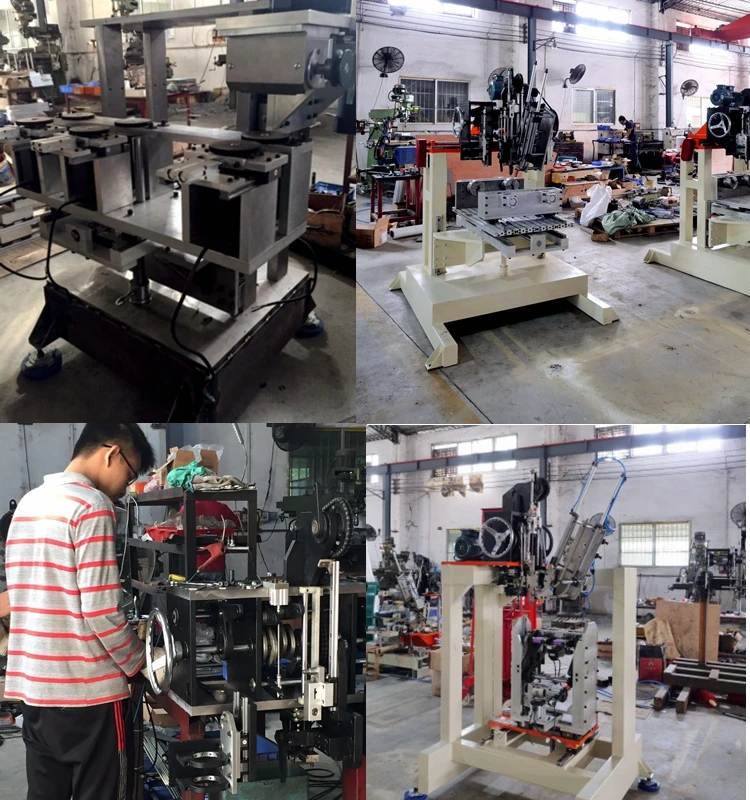

Company Information

Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.

Product Description

Machine paremeter

Item	Model	MX308
1	axis	5 axis
2	Journey of Y axis	200mm
	Journey of X axis	250mm
	The swing angle of Z axis	100°
	The height of A axis	300mm
3	Hole diameter	4-7mm
4	fiber box	double or three colour
5	Application	to make broom brush
6	The length of filament	30-120mm
7	Maximum Tufting Speed	4-6 holes/second
8	head motor	China WANXIN servo motor
9	Orbit	TBI original linear guide
10	main power input	380VAC/220VAC
11	MAIN SPEED CONTROL	Frequency control
12	drive motor	sevo motor
13	wire	flat wire
14	net weight	about 1000kg
