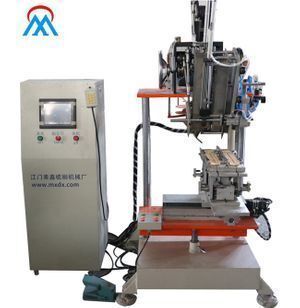

plastic brush making machine/cleaning brush making machine/hair brush making machines

Supplier: Jiangmen Meixin Comb Brush Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Jody Miss
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	about 1500kg;	Supply Ability:	15 Set/Sets per Month;
Payment Terms:	T/T,Western Union,EXW;	Brand Name:	Meixin;
Automatic Grade:	Automatic;	Brake motor:	Italy brake motor;
Production Capacity:	2000 pieces/10 hours;	driving screw:	TBI ball screw;
Lubrication:	TBI straight line guide rail;	After-sales Service Provided:	Engineers available to service machinery overseas;
Voltage:	380VAC/220VAC;	Power(W):	1000W;
Certification:	Patent Certification;	Application:	for disc brush tufting;
Stepless speed:	Frequency converter using Delta inverter;	Power(W):	1000W;
Dimension(LWH):	15007001300mm;	Production Capacity:	2000 pieces/10 hours;
Warranty:	one year;	Condition:	New;
Certification:	Patent Certificate;	Place of Origin:	Guangdong China (Mainland);
driving Motor:	servo motor;	Voltage:	380VAC/220VAC;
Port:	Jiangmen;	Packaging Detail:	wood box;

Company Information

Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.

Machine paremeter:

Item	Model	MX501
1	axis	2 axis
2	Journey of X axis	300mm


3	Journey of Y axis	300mm
4	Hole diameter	4-6mm
5	bristle contrainer	double colors
6	Application	to make disc brush
7	The length of filament	10-120mm
8	Maximum Tufting Speed	5-6holes/second
9	head motor	Italy brake motor
10	main power input	2 phase 220V,3phase 380vor220V
11	programme system	sevo motor
12	net weight	about 1000kg

Control System	CNC controller
Disturbance display	english editiion
Safety protection	overload,short circuit protection
Driving screw	TBI ball screw
Lubrication	TBI original linear guide
driving motor	servo motor
Main speed control	Frequency inverter
Fiber box	double or three colour

Technical characteristics:

1.installed with one tufting motor head,high speeding processing,high volume,cost effective.

2.this machine can produce many different kinds of brushes or brooms which have different filling angles,by changing specifice platform

3.hole diameter:3mm to 8mm

4.filling by:round nails or flat nails

5.types of platform can be chosen,vertical angle of brushes

6.PLC and touch Panel Control System of Man-Machine,Chinese and english display,simple to understand

7.allow to save as 2000 procedure and easy for the creation of new models

8.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.

9. our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately

Wearing parts and spare parts are standardized designs

Our plant:(all staff work together seriously)

Installing and testing:

Packaging & Shipping

FAQ

Your bright eyes will discover our good quality machine

1.we are honest and reliable,we wont hope we only have one cooperation chance.

2.We are professional,there are a good team of engineers and designers in our factory.3

3.We always stick to provide our customers high quality,best service,sincere attitude to all our business partners.

Our Services

We follow up every one customer that how does our machine works,and engineer available to service machinery overseas,warranty:one year. (Buyers pay all engineers travelling charge,for example:ticket,living.food.ect.

After warranty period:buyers have to paid engineers all engineers travelling charge,for example:ticket,living.food,ect)

Looking forward to our coopertation in the furture!
