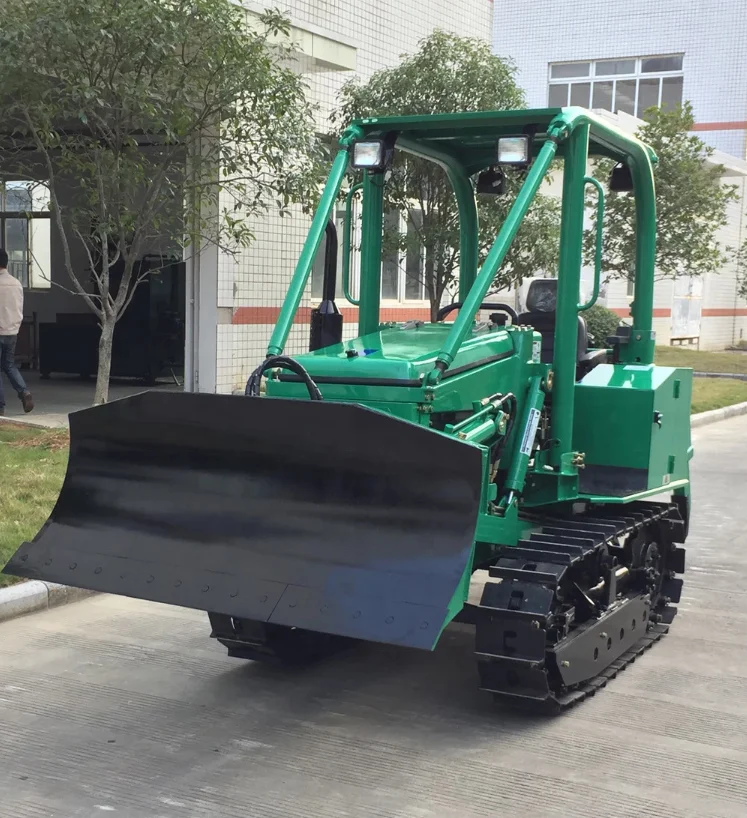

widely used mini crawler bulldozer,35 HP mini bulldozer with EPA engine for sale

Supplier: Qingzhou Honorsun Heavy Industry Co., Ltd.
Region: Shandong, China
Contact: Mr kecheng han
Price: $12500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After Warranty Service:	Video technical support,Spare parts;	Package Preview:	;
Machine Weight:	2830;	Color:	yellow,green,red;
Dimension(Long * Breadth * High):	2960X1650X2285mm;	Local Service Location:	None;
Operating weight:	2830kg;	After-sales Service Provided:	Video technical support,Free spare parts;
Port:	qingdao;	Keywords:	mini bulldozer;
Place of Origin:	Shandong China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Hydraulic Cylinder Brand:	ENERPAC;	Supply Ability:	20 Unit/Units per Week;
Applicable Industries:	Home Use,Construction works ;	Moving Type:	Crawler Bulldozer;
Brand Name:	HONORSUN;	UNIQUE SELLING POINT:	High operating efficiency;
Condition:	New;	Hydraulic Valve Brand:	Huade;
Type:	Crawler Bulldozer;	Showroom Location:	None;
Hydraulic Pump Brand:	HYDAC;	Packaging Detail:	widely used mini crawler bulldozer,35 HP mini bulldozer with EPA engine for sale need one 20GP container;
Warranty:	1 Year;	Model Number:	HS500;
Dozing Capacity:	0.67;

widely used mini crawler bulldozer,35 HP mini bulldozer with EPA engine for sale

Product Description

crawler bulldozer,mini crawler loader

1,Good cost performance: Adopting full hydraulic transmission, it can bring the power of engine into full play amply. Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission. It enables the loader working efficiency and easy maintenance

2,High productivity: Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.

3,Good capability in climbing the slope: 4-wheel driven, strong driving power.

4,Operation flexible: Center-point frame articulated and small turning radius makes it convenient to work in confined places.

5,Safe and reliable: Single-line air-assisted brake system.

6,Going-through capability: The rear axle can swing around the center hanger frame, improved the going-through capability of the whole machine.

7,Operation comfort: Continuously variable transmission, full hydraulic steering system steady and reliable

whatsapp/wechat	+86 151 6567 8797
QQ	747617864

Overall length(with blade or loader) (mm)	2960
Overall length (no blade or loader) (mm)	1940
Overall width(with straight blade or loader) (mm)	1650
Overall width (no blade or loader) (mm)	1410
Overall height to top of ROPS (mm)	2285
Ground contact length (mm)	1100
Track gauge (mm)	1150
Shoe width (mm)	260
Ground clearance (mm)	240
Operating weight (kg)	2830
Max. drawbar pull (kgf)	2350

Height of blade (mm)	675
Lift height of blade (mm)	500
Max. digging depth of blade (mm)	80
Blade capacity	0.67 m3

Engine	Type	In-line,water-cooling, swirl chamber-Perkins EPA4
	No.of Cylinder	4
	Cylinder Bore	85mm
	Piston Stroke	95mm
	Displacement	2.16L
	Aspiration	Natural
	Max. power	25.7kw@2350rpm
	Max. torque	120Nm@1650rpm
	Fuel	Diesel
	Fuel consumption	≤264g/kWh
	Lubrication means	Full pressure by rotary pump

Our Services

1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.

2- After-sale:

We have our own overseas after-sales engineering team,can give our customer the best servies to avoid your trouble back at home.

3 - warranty

1 year warranty from the date of receiving the equipment

During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.

4- packing

one set by one20GP (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
