Package Preview: | ; | Supply Ability: | 10000 Set/Sets per Month handy radio communication; |
Packaging Detail: | Baofeng UV-5R Package: 1 x 2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range Walkie Talkie (VHF136-174Mhz UHF 400-520Mhz) 1 x 7.4V 1800mah Li-ion Battery Pack 1 x Antenna 136-174/400-520Mhz 1 x Belt Clip 1 x ENG Manual 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia) 1 x PTT Earpiece for free; | long distance radio communication: | Baofeng UV-5R; |
amateur radio hf transceiver: | hf transceiver from china; | Port: | Xiamen, Shanghai, Guangzhou, Shenzhen; |
walkie talkie: | hf transceiver; | hf radio transceiver: | ham radio hf; |
Place of Origin: | Fujian China; | Brand Name: | Baofeng; |
Storage Channel: | 128; | handy radio communication: | Black; |
Talk Range: | 5-8KM; | Certification: | FCC,ce; |
Dimensions: | 58x32x110mm; | handheld hf radio: | ham radio transceiver; |
Type: | Handheld; | transceiver radio baofeng: | transceiver ham radio; |
Radio Type: | High Power Walkie Talkie; | Applications: | Security; |
Frequency Range: | UHF + VHF 136-174MHz+400-480MHz; | Model Number: | baofeng uv-5r; |
vhf uhf handheld radio: | CE,ROHS FCC approval; | Payment Terms: | Western Union,T/T,MoneyGram,Paypal; |
2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range 3-5km Walkie Talkie BAOFENG
This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
Features:
Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Mode of operation: Simple or semi-duplex
Dimension (W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
Transmitter Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7?W
Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: <=1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: <10%
Technical Specification:
Hot Spots |
||
Dual band / dual display /dual standby |
A/B band independent operation(UV UU VV) |
|
128 groups channels storage |
Shortcut menu operation mode |
|
VFO & Memory channels scan |
Emergency Alarm |
|
Time-out Timer (TOT) |
0~9 grades VOX selectable |
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
Voice commanding |
50 CTCSS/104 DCS |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
DTMF function |
OFF SET function |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
VOX function |
Yes |
|
Busy lockout function |
Yes |
|
Frequency step |
Yes |
2.5/5/6.25/10/12.5/25KHz |
Scanning function |
Yes |
|
Monitor function |
Yes |
|
Time-out Timer (TOT) function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Battery voltage display |
Yes |
|
Channel name display editing |
Yes |
|
Signal strength indicator |
Yes |
|
Keypad lock function |
Yes |
|
Built-in Led torch |
Yes |
|
FM radio |
Yes |
|
Wire clone function |
Yes |
|
Emergency alarm function |
Yes |
|
Low battery alarm |
Yes |
|
Power saving function |
Yes |
|
High/Low TX power selectable |
Yes |
5W/1W |
ROGER SET |
Yes |
|
Chinese English voice prompt |
Yes |
|
PC software programmable |
Yes |
|
Rated Voltage |
7.4V DC±10% |
|
Output power |
≤ 5W |
|
Battery type |
Li-ion battery |
|
Battery capacity |
1800mAh |
|
Working temperature |
-20~+50°C |
|
Antenna Impedance |
50Ω |
|
Weight |
255g |
|
Dimension(L×W×H) |
58×32×110mm(Not Antenna) |
|
Specification |
||
Frequency stability |
±2.5ppm |
|
Carier wave tolerance |
5ppm |
|
Modulation |
16kΦF3E / 11kΦF3E |
|
Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
|
Modulation character |
6 dB per fold frequency patch |
|
Emission current |
< 1.6A(5W) |
|
CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
|
Sensitivity |
< 0.16μV(12dB SINAD) |
|
Silent sensitivity |
< 0.2μV |
|
Intermediation Distortion |
<10% |
|
Inter modulation |
8-12mv |
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |

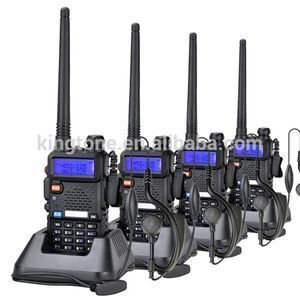

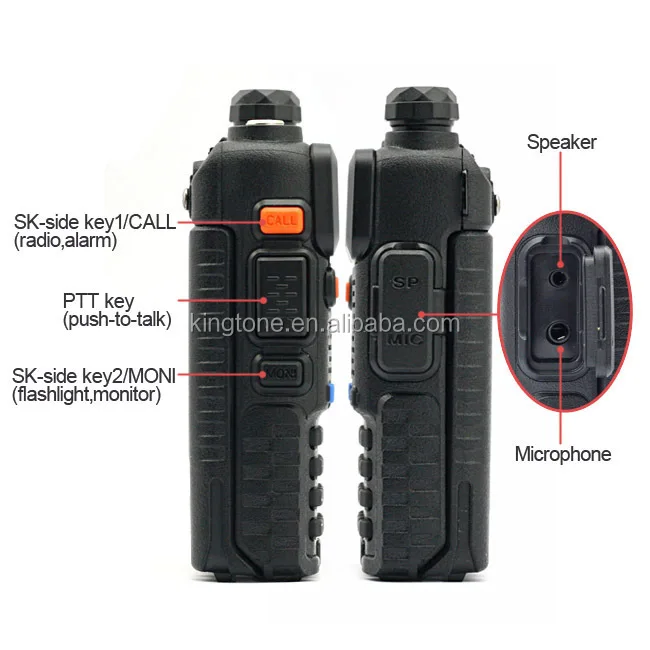

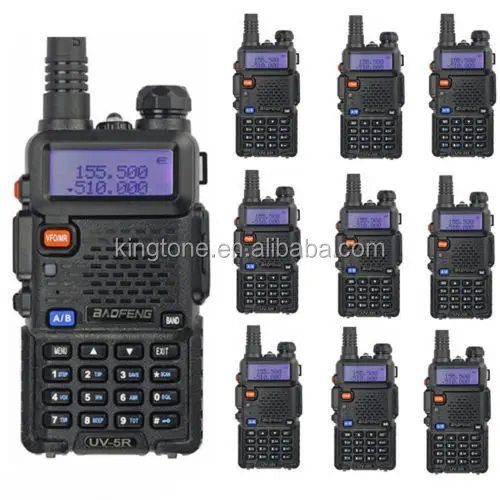

Baofeng UV-5R Detailed Photos:
2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range 3-5km Walkie Talkie
2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range 3-5km Walkie Talkie
2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range 3-5km Walkie Talkie

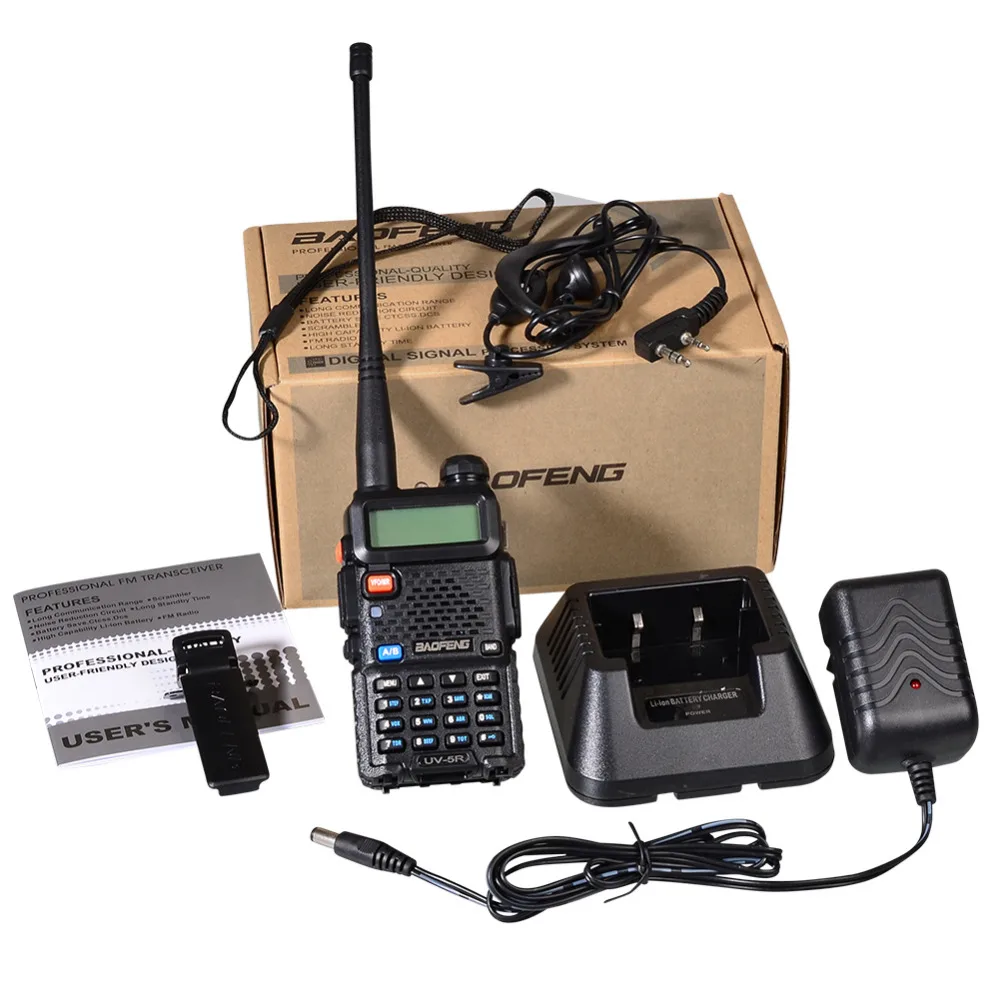

Baofeng UV-5R Package:
Shipping:
1 We glad to ship World Wide.
2 Please make payment by Western union/TT after we confirm the order.
3 Transportation: UPS, TNT, DHL, EMS or FEDEX.
4 Item will be shipped out within 5 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)
5 Shipment may arrive within 5 – 16 days. Actual delivery days would be different for varies countries.
6) We do single and combine shipment.
7) Please make sure your shipping address is correct, as the buyer have to pay for the reshipment fee when the package being returned to us.
Payment Policy:
We could only accept payment by Western Union/TT/PayPal

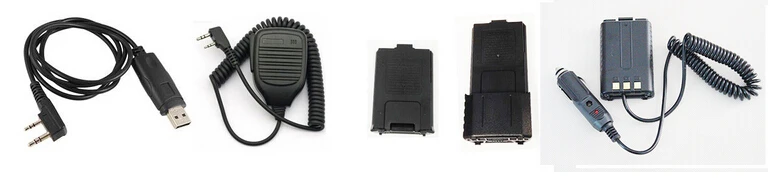

optional accessories of baofeng radios:
BAOFENG used various advanced testing instruments to test the product performance, such as comprehensive testing instrument, spectrum analyzer, network analysis instrument, oscillograph, adjustable voltage regulator and so on. In this way, we can make sure the stability and high quality of the products. The production procedures are strictly carried out by ISO 9001:2008 standards. Every item must go through various strict testing, such as vibration testing, anti-pressure testing, high& low temperature testing, rain exposition testing before they are delivered. In this way, we can make sure the product is 100% qualified.
Note:
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
Approved: CE/FCC
After Sales Service: 1 Year Warranty
1. Q: What is MOQ(mini Order Quantity)
A: In general, it is 100pcs. According situation, it is negotiable.you can also place sample order.
2. Q: do you accept Customized?
A: yes,we did produce as customer requirement ,OEM & ODM are welcomed.MOQ of customized order should be 1000pcs
3. Q: Could you offer free sample to test?
A: Yes, sure. For regular VIP agency we offer free sample when New Products Launch,for New customer you pay the sample fee first when your Order reach required amount we minus the sample Cost for you.
4. Q: What payment terms you can accept ?
A: We support TT /Western Union /Paypal
Welcome to our website : www.kingtone.cc www.cnkingtone.com for more updated information .
If you need 2021 Best Selling CE FCC Handy Dual-band VHF UHF Radio Original Baofeng UV-5R Long Distance Radio Talk Range 3-5km Walkie Talkie ,welcome you to contact me now!
