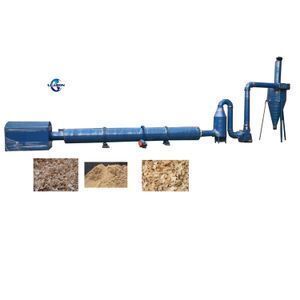

Good Quality 1T/H Wood Sawdust Dryer Rotary Drum Dryer Wood Chips Drying Machine

Supplier: Zhengzhou Leabon Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Carolyn Ji
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Core Components:	Bearing,Engine;
Heating Method:	Gas Heating;	Evaporation Capacity(kg/h):	1000;
After Warranty Service:	Online support,Spare parts;	Weight:	13500-19500KG;
Raw material size:	less than 5 x 5 mm;	Voltage:	380V 50Hz,380V;
Place of Origin:	Henan China;	Warranty of core components:	1 Year;
Local Service Location:	None;	Packaging Detail:	40GP Container Good Quality 1T/H Wood Sawdust Dryer Rotary Drum Dryer Wood Chips Drying Machine;
Applicable Industries:	Farms;	Marketing Type:	New Product 2020;
Warranty:	1 Year;	Color:	Customer's Request;
Machinery Test Report:	Provided;	Dimension(LWH):	5m15m,5m15m;
Payment Terms:	L/C,Western Union,T/T;	Supply Ability:	100 Set/Sets per Month rotary drum dryer/ sawdust drying machine;
Brand Name:	LEABON;	Key Selling Points:	Long Service Life;
Material:	Other;	Condition:	New,New;
Showroom Location:	None;	Power:	28 kw,28;
Certification:	CE,CE Certificate;	Type:	Rotary Drying Equipment,Rotary Drying Equipment;
Fuel:	Wood Branch;	Port:	Qingdao, Shanghai;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;

Good Quality 1T/H Wood Sawdust Dryer Rotary Drum Dryer Wood Chips Drying Machine

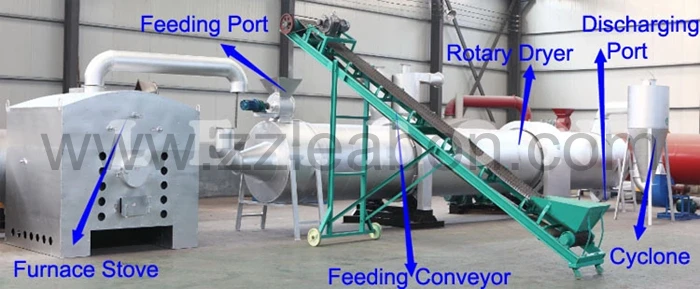

Wood Sawdust Rotary Dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port.

Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material.

Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.
Sawdust dryer is widely used in industries like biomass fuel, charcoal making, wood pellet fuel, sawdust briquette,

farming and sand etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws,etc.

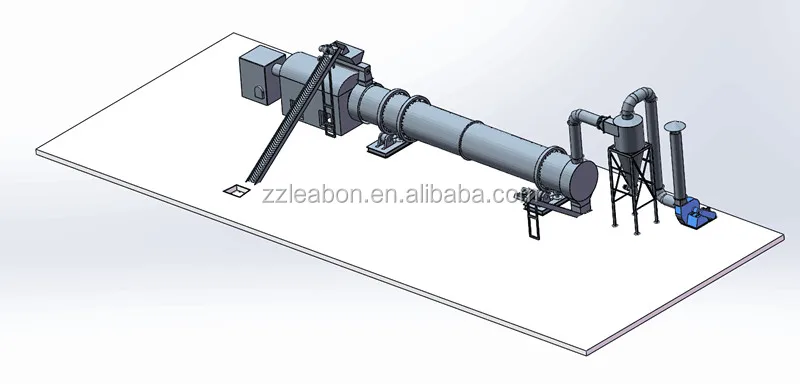

Work flow dragram of rotary drum type sawdust drying machine

Features ------ Wood Chips Dryer:

1. Rational internal structure, high efficiency and remarkable energy - saving .

According to our inspecting result , the heat efficiency is about 85% more than traditional dryer.

2. Cylinder self- insulation thermal efficiency can reach to above 70% (traditional single cylinder dryer

heat efficiency is only 35%), so it can improve thermal efficiency at least 35%.

3. Covers an area of 50% lower than single drum dryer, and civil work investment can reduce 50%,

power consumption reduced by 40%. In addition, The external cylinder has higher heat preservation

and heat insulation effect, so outer tube surface temperature is near to room temperature, it will not

only keeps high heat energy utilizing efficiency , but also can improve the working environment

and conditions.

4. It can easily adjust the final moisture according to client’s requirement.

5. Low outlet temperature and long service time of dust collection system to keep

clean working environment.

6. New-type driving system design. It adopt of tug wheel transmission without gear transmission.

Motor adopts frequency controlling motor, and the rotating speed of cylinder could be adjustable

according to the moisture, production capacity.

7. Using automatic temperature monitoring and controlling system, make operation more convenient.

Main Data -------- Wood Chips Dryer:

Model	LBGT 1210	LBGT 1409	LBGT 1615
Capacity(t/d)	44.0-19.5	46.5-20.5	88.0-39.0
Vaporization capacity(t/h)	0.565	0.595	1.130
Cover area(m2)	5m*15m	5m*15m	6m*22m
Total motor power(kw)	28	34	45
Total weight(kg)	13500	15500	19500
Initial moisture	35-50 (%)
Final moisture	12-15% ( adjusting )
Size of wood dust	5-8 (mm)
Drying temperature	270 ± 30 (℃)
