RJ45: | support; | Newcamd: | support; |
Package Preview: | ; | Xtream IPTV: | support; |
CCCam: | support; | Brand Name: | SKYSAT; |
H.265 HEVC: | support; | High Definition: | Yes; |
Product name: | SKYSAT V20; | M3U: | support; |
WiFi: | support; | Selling Units: | Single item; |
Model Number: | V20; | Type: | Digital; |
Chipset: | Ali3521; | Place of Origin: | Guangdong China; |
Single package size: | 24X17.2X5.2 cm; | Single gross weight: | 0.7 KG; |
Packaging Detail: | Gift box size: 23.7x17.1x5.1cm Gift box weight:0.58kg 20pcs/carton Carton size:49x27.6x36.3cm Carton weight:12.5kg; | FTA(Free To Air): | Yes; |
Autoroll Powervu: | support; |

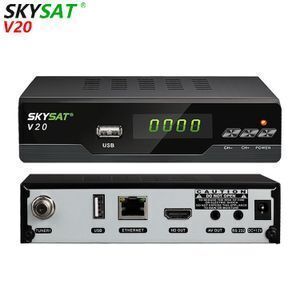

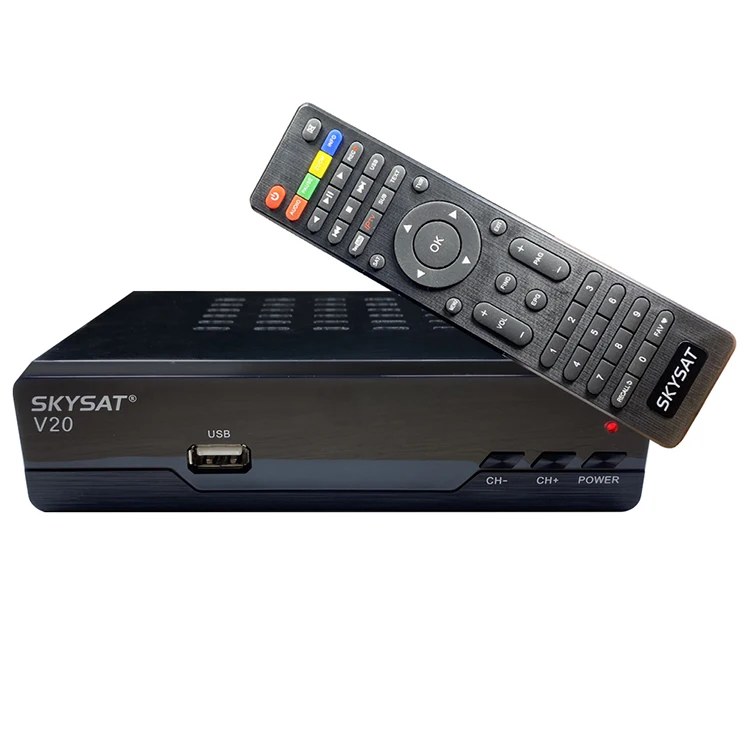

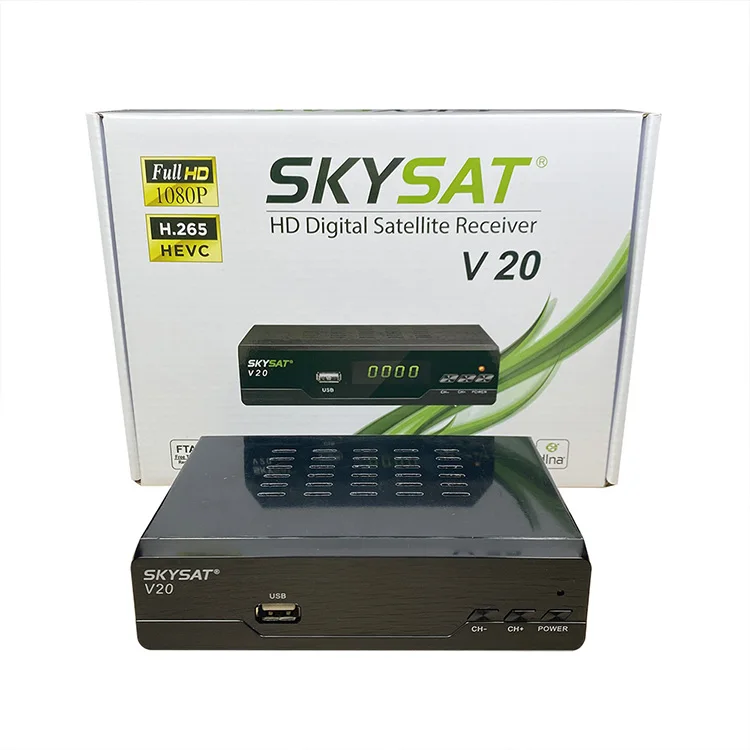

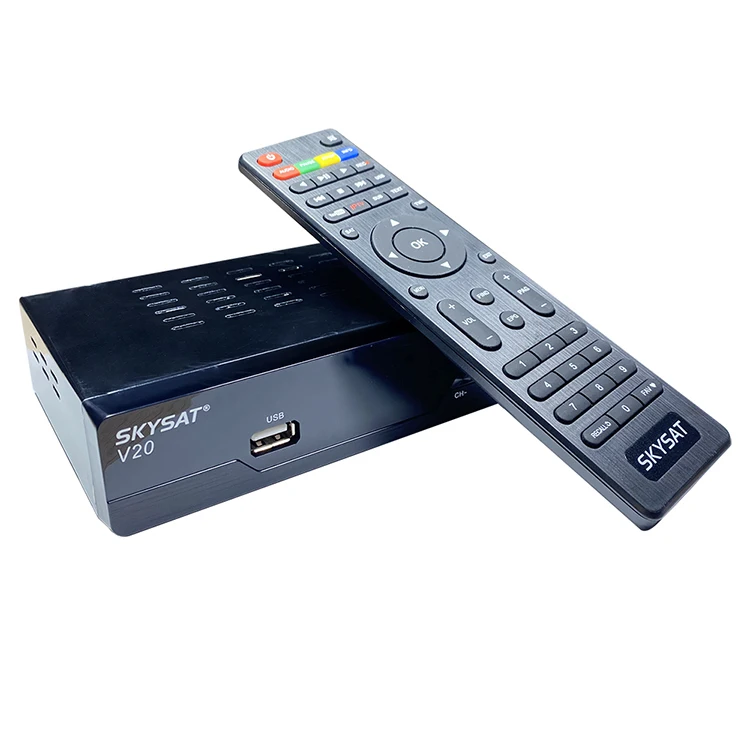

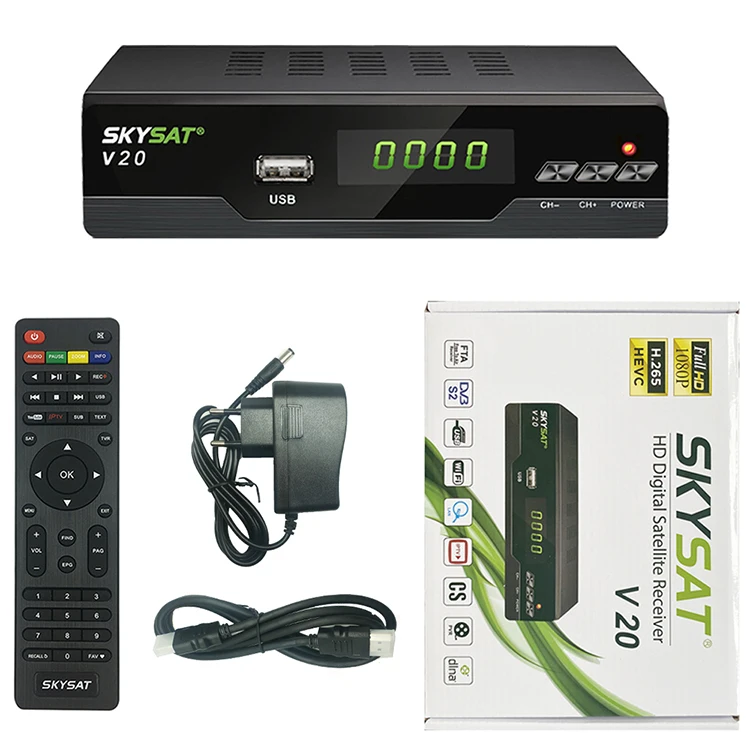

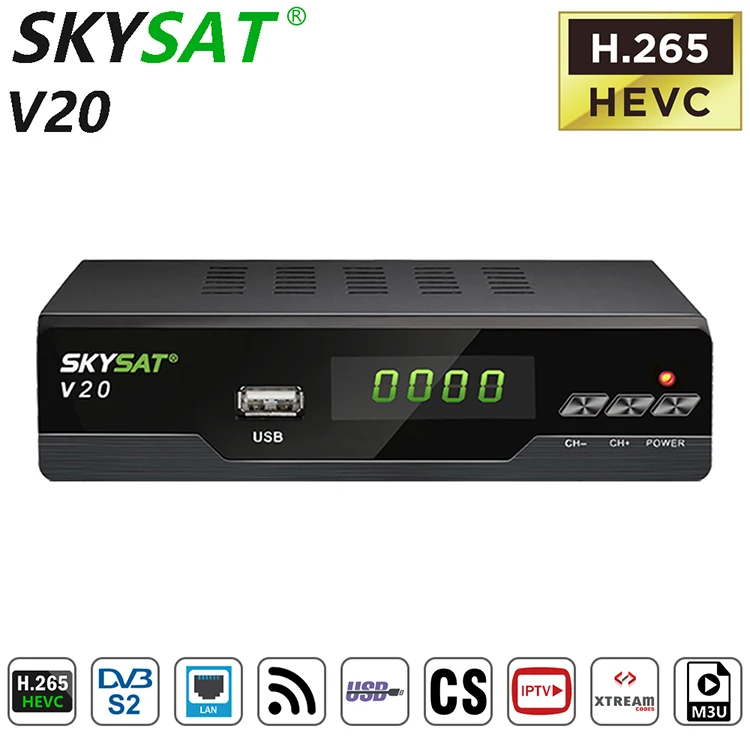

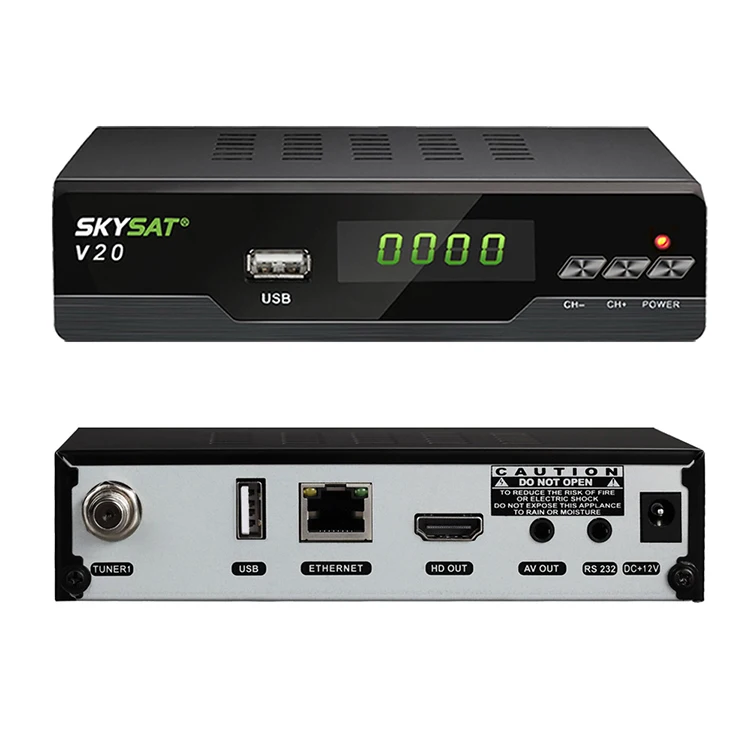

H.265 HEVC IPTV Satellite Receiver SKYSAT V20 support CCCam Newcamd PowerVu Biss LAN WiFi Xtream IPTV m3u Receptor
Main Features | |
-Fully DVB-S/DVB-S2/MPEG-2/MPEG-4/H.264/H.265/AVC Compliant -DiSEqC 1.0/1.1/1.2 and USALS -LAN/Ethernet connector -Aspect ratio adjustment 4:3(16/9 crop),4:3(16/9 letterbox),16:9(4/3 pillar box) -HDMI Video & Audio Output(576i,576p,720p,1080i,1080p) -Dual USB for Multimedia Player(MP3,MP4,OGG,MKV,JPEG,BMP,etc) -Dolby Digital Bitstream Out through S/PDIF(Coaxial) -Multiple Video Output "HDMI OUT,CVBS" -News, Map and Weather Application via IP -8000 TV & Radio Channels Supported -Multi-Language OSD(Spanish, Portuguese, English etc) -PVR Time Shift and Playback Supported -Transportation Stream Recording Supported -NIT Auto Search, Blind Search, Manual Search, TP Search and Multi-Search -7 Days EPG(Electronic Program Guide) -Games Supported -Software Upgrade and Channel Database Update by USB or RS232 -Low Power Consumption Standby |
|
Specification | |
1. Tuner & Channel | 2. MPEG Transport Stream & A/V Decoding |
Type 1 ´ F Type, IEC169-24, Female Frequency Rage 950MHz to 2150MHz RF Impedance 75 Ohm unbanlanced Signal Level -65 to -25 dBm LNB Power 13/18Vdc +/- 5%, 0.5Amax, Overload Protected 22KHz Tone Frequency :224KHz +/- 2KHz, 0.6Vpp +/- 0.2V DiSEqC Control Version1.0, 1.2, Tone burst A/B Demodulation QPSK, 8PSK Input Symbol Rate DVB-S QPSK : 1~45 Msps DVB-S2 8PSK/QPSK : 10~30Msps FEC Decoder 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode. |
Transport Stream 13818-1 MPEG-2, H.265/AVC Transport stream Specification Profile Level MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC Input Rate Max. 90Mbit/s Aspect Ratio 4:3, 16:9, Letter Box Frame Rate 25Hz for PAL, 30Hz for NTSC Video Resolution 576i, 576p, 720p, 1080i ,1080P Teletext Through VBI Audio Decoding MPEG-1 Layer 1 & 2, Dolby Downmix Audio Mode Single Channel/Dual Channel Joint Stereo/Stereo Frequency Response 20~20kHz, <+/-2dB |
3. System & Memory | 4. A/V & Date In/Out |
Main Processor Ali3521 Flash Memory 8MB DDR III Memory 2GB Channel Capacity Digital Channel: 6,000 Front 3-Key(Power), 7-SEGMENT DISPLAY |
HDMI Full HD/ Video/Audio Output Data Interface - RS-232, Bit Rate: 115,200baud Connector: 9-pin D-sub Male type USB : USB 2.0, Type A Connector, |
5. Power Supply | 6. Physical Specification |
Input Voltage AC 100V ~ 240V, 50Hz ~ 60Hz Power AC 100V - 240V |
Size(WxHxD): 148*102*34MM Weight:0.32KG |
7. Environmental Condition | 8. Packing |
Operating Temperature 0 °C ~ 40 °C Storage Temperature -10 °C ~ 50 °C Operating Humidity Range 10~85% RH, Non-condensing Storage Humidity Range 5~90% RH, Non-condensing |
Gift box size: 23.7x17.1x5.1cm Gift box weight:0.58kg 20pcs/carton Carton size:49x27.6x36.3cm Carton weight:12.5kg |
