Industrial microwave drying and sterilizing machine for fish meal

Supplier: Gongyi Guoxin Machinery Factory (General Partnership)
Region: Henan, China
Contact: Mr Jack Lee
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	microwave drying and sterilizing machine directly loading into 20GP,40HQ container, small parts packed by wooden box.;	Application:	Vegetables and friuts;
Device type:	Transmission belt;	microwave dehydration machine material:	304 Stainless Steel;
Brand Name:	Other;	Working Type:	Continuous;
Type:	Other;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Escrow;
Voltage:	Other;	Dimension(LWH):	Other;
Place of Origin:	Henan province,China;	Supply Ability:	30 Set/Sets per Month microwave drying and sterilizing machine have storage.;
microwave dehydration machine color:	Customers' Requirements;	Control system:	PLC automatic control;
Temperature:	Low degree drying;	Condition:	New;
Certification:	Other;	Weight:	Other;
Warranty:	Other;	After-sales Service Provided:	Field installation, commissioning and training;
Function:	Drying and Sterilizing machine;	Name:	Fully automatic spice vegetable microwave dehydration machine;
Port:	Qingdao/Lianyungang/Shanghai/Guangzhou;	Power:	Other;
Item:	microwave dehydration machine;

Industrial microwave drying and sterilizing machine for fish meal

Product Description

The description of microwave drying and sterilizing machine:

Industrial microwave drying and sterilizing machine is used for drying and sterilizing various kinds of food,snack food, agricultural products, fish slice, slice dried meat, bean products, instant noodles, fast food, dried fruit, tea, herbs, karaoke powder, fruit and vegetable in the form of powder, granules, slice, etc.
It maximizes the preservation for activity of materials and vitamins, color & nutrition of food. It makes the goods drying and sterilizing at the same time.

The principle of the microwave drying and sterilizing machine:

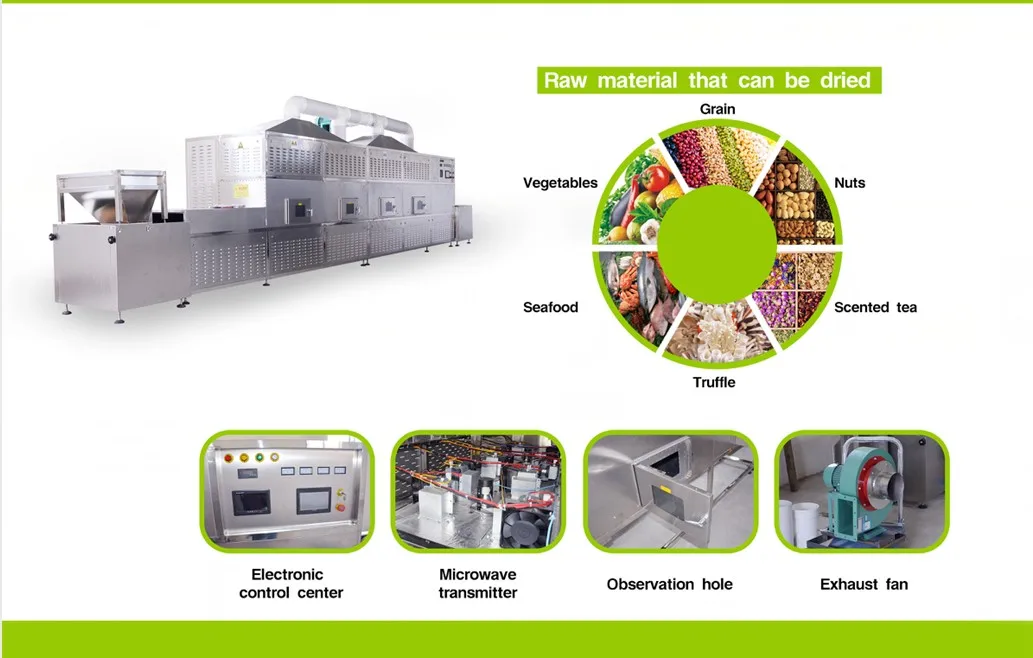

The features of the microwave drying and sterilizing machine:

1.Microwave generator system

2.Microwave box

3.Temperature controlling system

4.Humidity controlling system

5.Transmission system

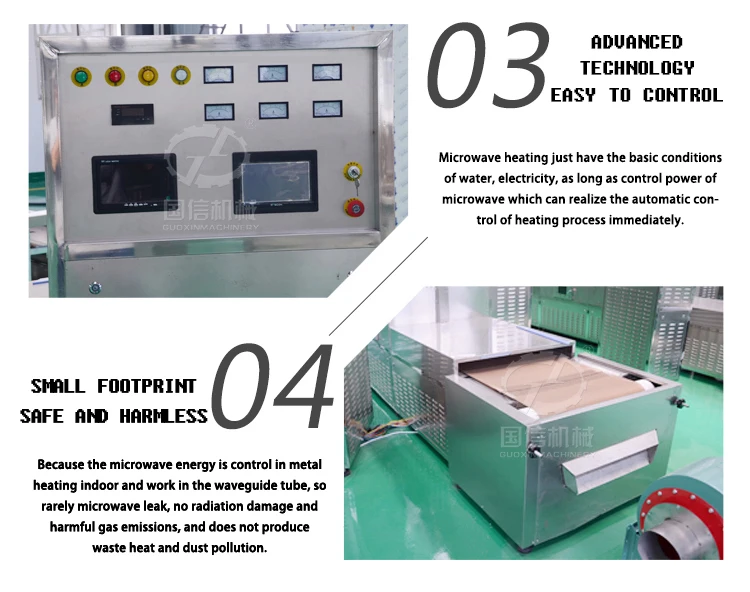

6.PLC and touch screen control system

7.Humidity discharging system

8.Electrical cabinets

9.Cooling system

10.Hot air recycling and circulatory system

The application of the microwave drying and sterilizing machine:

Ripenning:Mainly used for different kinds of grain.After ripening,it can directly eat.

Drying: Reduce the moisture inside the material.

Sterilization: Storage food for longer time.

Fixation: Keep the material color.

Unfreeze:Make the meat fast unfreeze.

The paraments of the microwave drying and sterilizing machine:

Power supply	380V 50HZ three-phase five-wire
Microwave output frequency	2450±50MHz
Microwave input apparent power	≤70KVA
Microwave output power	≥50KW
Microwave power adjustment range	0-50KW(adjustable)
Temperature	0~200C(adjustable)
Equipment type	Transmission Teflon conveyor belt
Transmisison speed	0~10m/min(adjustable)
Microwave leakage limit	(mW/cm2):<1
Magnetron	Panasonic/LG
Material	stainless steel
Dimension(LWH)	1180014501790mm
