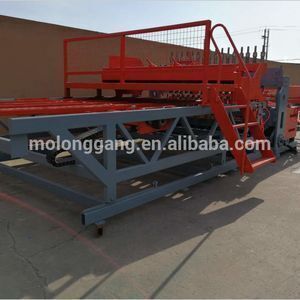

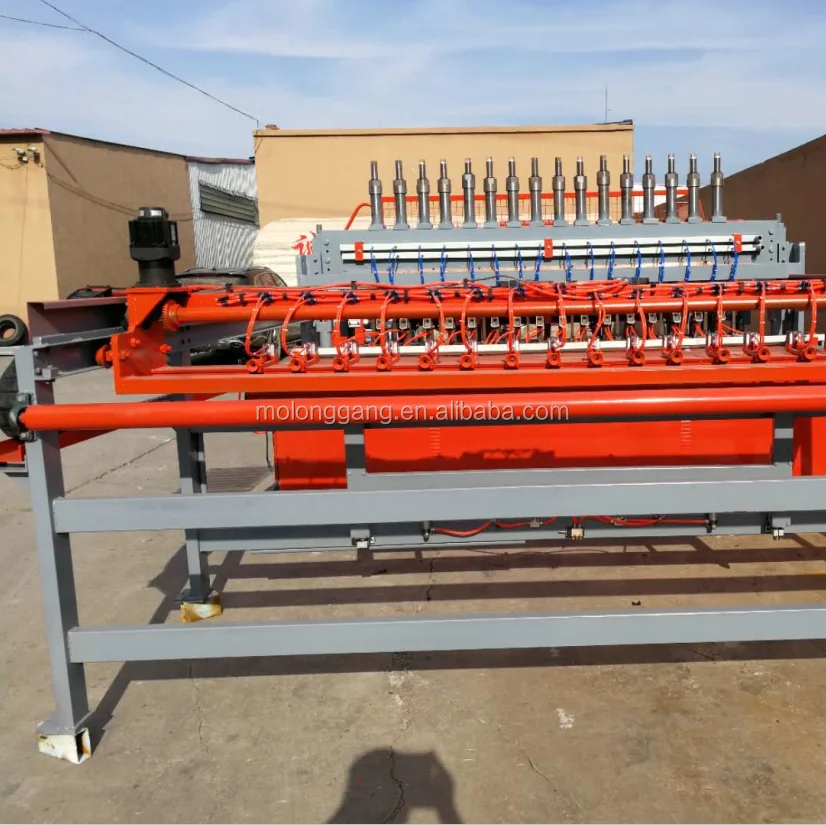

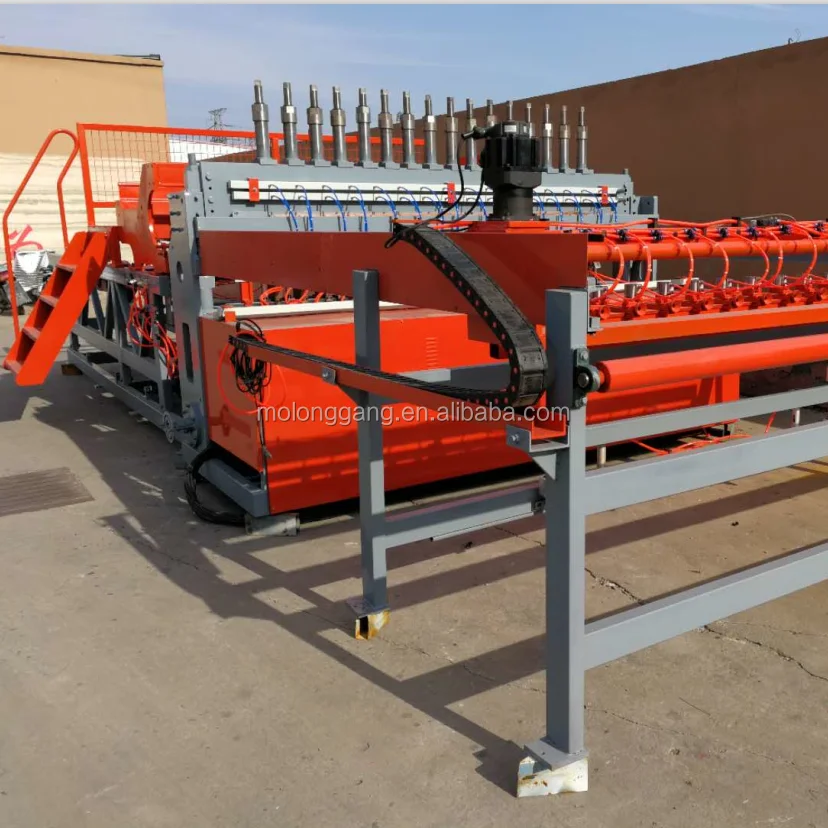

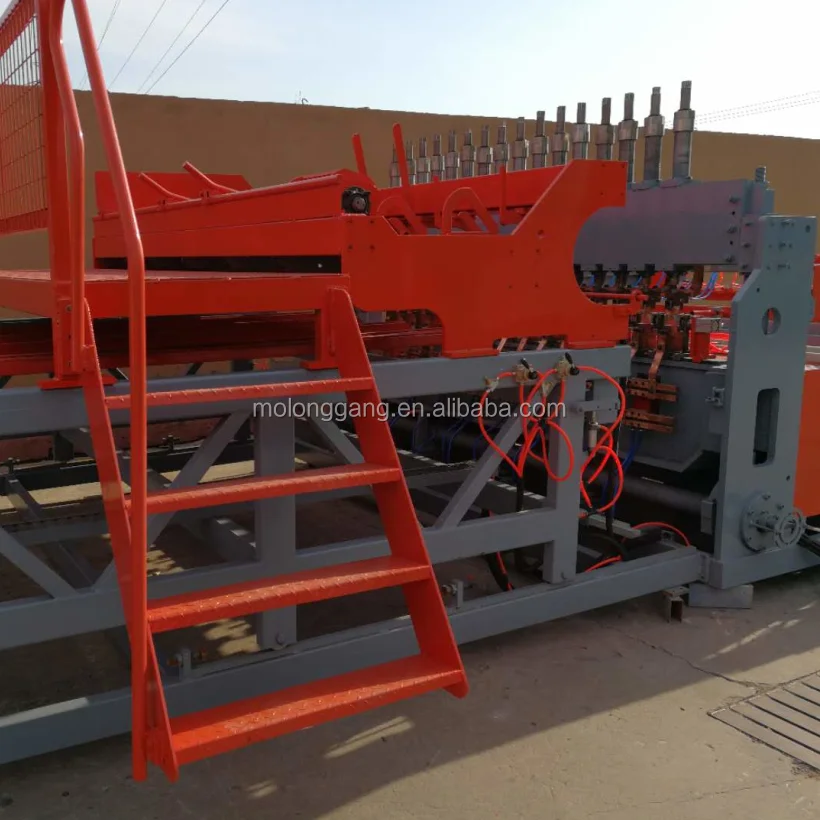

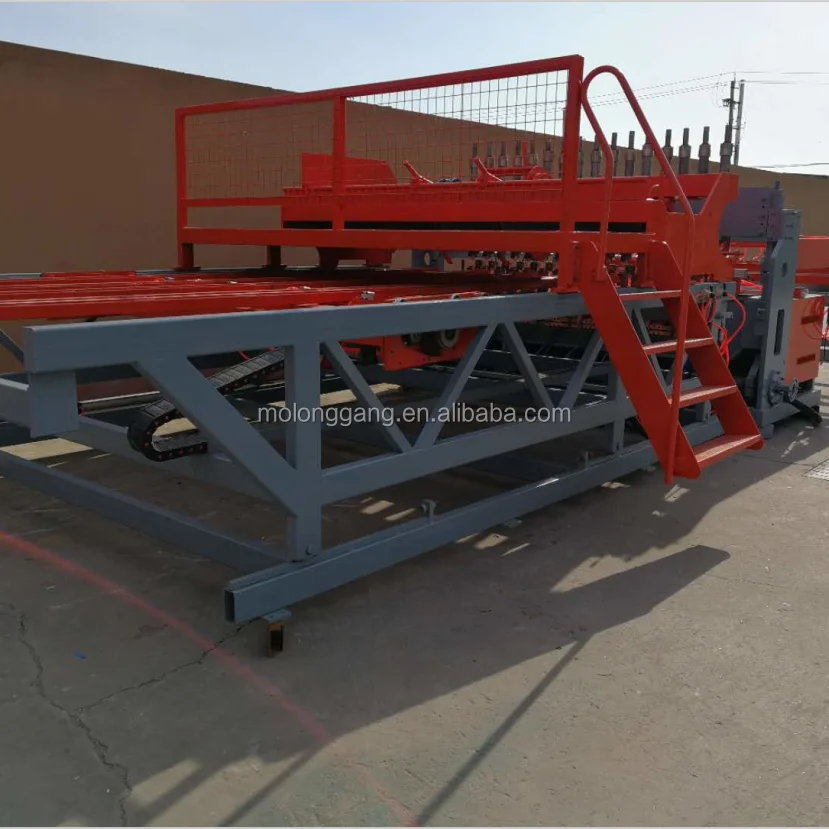

Latest Technology concrete reinforced ribbed mesh welding machine for 100x100mm

1.The control system adopts synchronous CNC technology, Panasonic PLC program and HMI. The machine operation is more intelligent and reasonable.

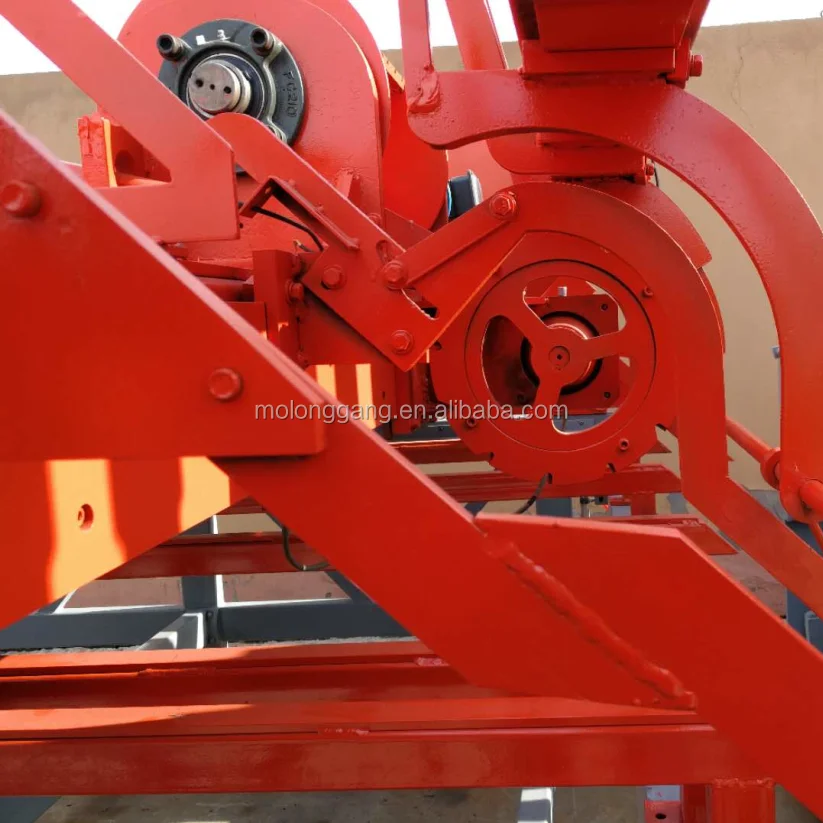

2. The cross wires are fed from the hopper device automatically. The hopper device has more capacity and is controlled by step motor.
3. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any mesh opening can be reach. Welding aperture can adjust randomly within range.
4. The main engine adopts imported and famous pneumatic components, making the service life long.
5. The welding wire is accurate and the welding points are firm for the big pressure.

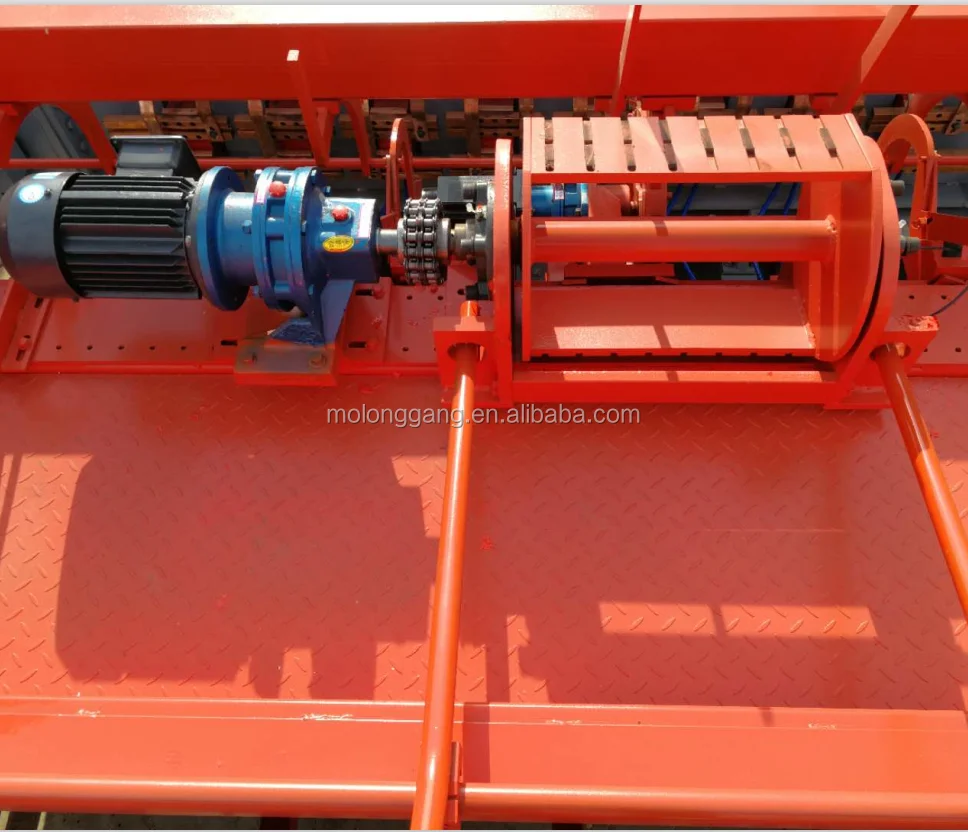

6. Mesh drawing system is controlled by Panasonic servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.

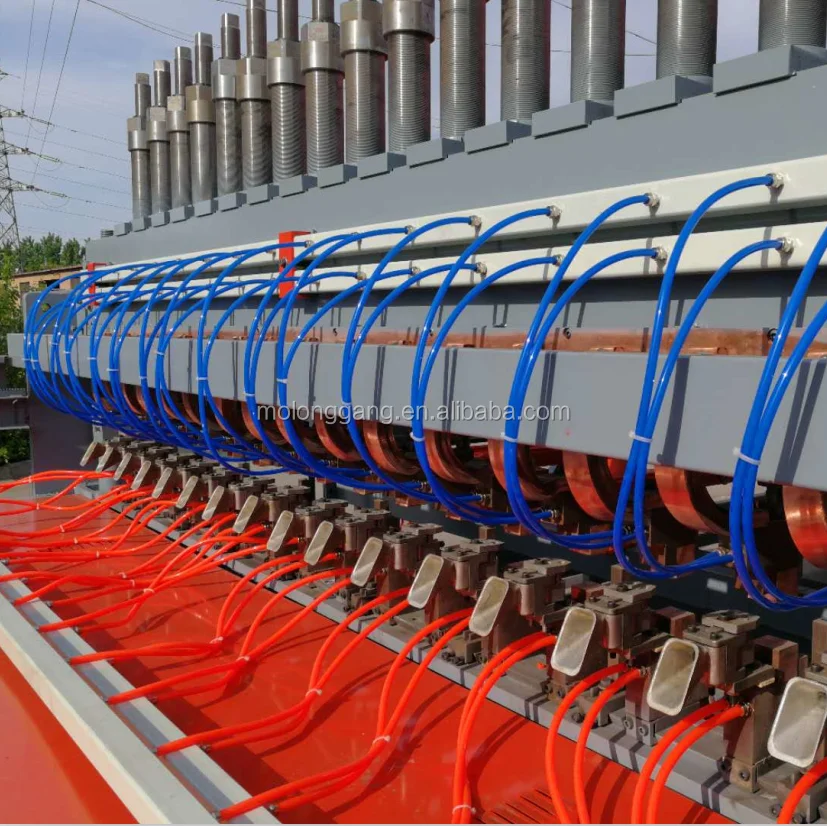

7,The machine equips with 12 pieces of typical and efficient water-cooling transformers, 125KVA*12(24 pcs of water cooling electrodes) ——every two welding heads need a water cooling transformer.
8, Wire feeding way:The longitude wires and cross wires should be pre-straightened and pre-cut. The longitude wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by Panasonic servo motor.

9, Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing

Technical Parameter

Usage

Highway, railway and various function of protection. For construction which used for basis of high building, roof mesh, floor mesh. It is also widely used in agriculture and poultry mesh, farming mesh and so on.

Perfect features:

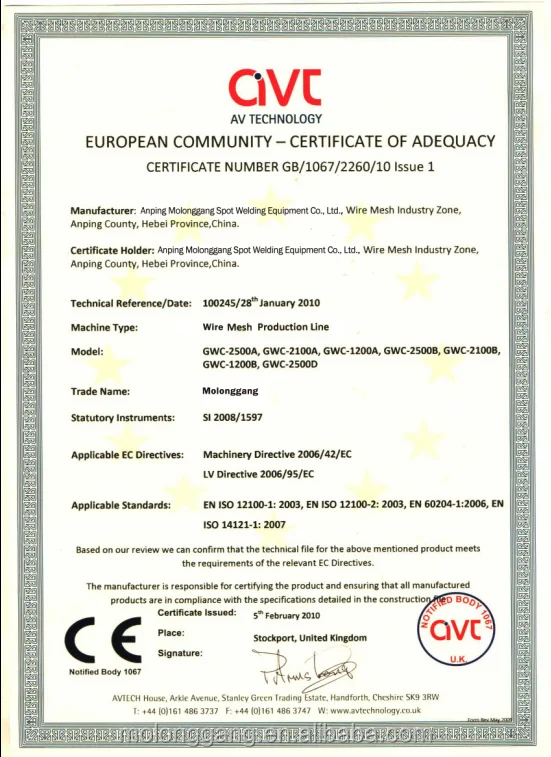

1.ISO9001:2008 and CE certificate
2.strict quality control of every procedure
3.get the documents you need for customs clearance to help you make it easy
4.300 staffs including 20 engineers will be your best support.

Detailed Strong Points:

1.high speed
2.good quality
3.stable working
4.competitive price
5.high consistency
6.long time use

Pre-Sales Service:

1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable welded wire mesh machine for our clients;
3.Training periodically high qualified service technician.

Established in 1986, Anping Molonggang Spot Welding Equipment Company Limited. is a professional manufacturer of auto wire mesh welding machinery.

Through many years of revolution on creation, all our staff members have united together to develop new products under professional engineers' support and strict quality control. Through development and research, we have registered many patent rights and attained ISO9001:2000 certification.

Q: What's the production capacity by weight each 8 hours?

A: It depends on the wire diameter ,mesh hole size

Q: Can you make voltage according to my requirement?

A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz.

Q: What's the payment terms?

A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.

Q: How to install the machines?

A: Please check below ". After sales service".
