PE PP Plastic Film Bags Recycling Machine with Compactor

Supplier: Jiangsu Acemech Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Mantha Zhou
Price: $120000.00 / 1 - 1 sets
$35000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Supply Ability:	50 Set/Sets per Year;
Raw material:	Waste PP PE film, EPS foam, BOPP film, PP woven bags;	Packaging Detail:	Wooden Pallets for PE PP Plastic Film Bags Recycling Machine;
Voltage:	380-440V;	Warranty of core components:	3 years;
Certification:	ISO CE;	Equipment List:	Pelletizing machine;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Plastic recycling factory,Plastic pelletizing plant;	Warranty:	1 Year;
Material Processed:	Feeding- Plasticizing -Pelletizing-Packing;	Weight (T):	12;
Dimension(LWH):	1564M;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,France,Germany,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Argentina,Chile,Colombia,Romania,Bangladesh,South Africa;
Machine type:	Plastic recycling machine Germany;	Place of Origin:	Jiangsu China;
Screw Diameter:	80-180;	Video outgoing-inspection:	Provided;
Plastic Type:	PP/PE;	Application:	Plastic recycling pelletizing,Plastic recycling pelletizing machine;
Marketing Type:	New Product 2021;	Max.Production Capacity (kg/h):	1200;
Production Capacity (kg/h):	200 - 1200;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Condition:	New;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Machinery Test Report:	Provided;	Key Selling Points:	Energy saving;
Brand Name:	KITECH;	Final product:	HDPE LDPE PP PS Granules,Pellets;
Machine Type:	PP PE Film Washing Line;	Power (kW):	150-630;
Product type:	Waste Plastic Film Bags Recycling Die Face Cutting Machine;	Payment Terms:	L/C,Western Union,T/T,MoneyGram,Granules Making Machinery;
Function:	Recycle waste plastic to granules;	Port:	Shanghai;
Gearbox:	High Precise Torque;	Package Preview:	;
Automaticity:	Full Automatic;	Showroom Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Ukraine,Nigeria,Uzbekistan,Japan,Malaysia,Australia;
Core Components:	Engine,Bearing,Gearbox,Motor,Pump;

Product Description

KCP series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.

What's the machines working principle?

KITECH provides four different pelletiizng solutions for you aiming at different MFI polymer will get different shape output pellets.

Detail Specification

Technology Parameter

Technology Parameter
Type			KCP80	KCP100	KCP120	KCP140	KCP160	KCP180
Capacity (kg/h)			150-250	300-420	400-600	600-750	800-950	1000-1200
Energy consumption (kWh/kg)			0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33	0.2-0.33
A / Length (mm)			10,300	10,300	11,400	11,400	14,800	14,800
B / Width (mm)			6,200	6,200	6,450	6,450	6,850	6,850
C / Height (mm)			3,500	3,750	3,980	4,250	4,460	4,850
Compactor	Volume(L)	300	500	800	1000	1200	1400
Compactor		Motor power(KW)	37-45	55-75	75-90	90-132	132-160	160-185
Extruder	Screw Diameter (mm)	φ80	φ100	φ120	φ140	φ160	φ180
		L/D	30-40	30-40	30-40	30-40	30-40	30-40
		Motor power (kW)	55-75	90-110	132-160	160-200	250-315	315-355
Filter (optional)	Two position plate type	●	●	●	●	●	●
		Two position piston type	○	○	○	○	○	○
		Back flush piston type	○	○	○	○	○	○
		Automatic self-cleaning type	○	○	○	○	○	○
2nd Extruder (optional)	Screw Diameter (mm)	φ100	φ120	φ140	φ160	φ180	φ200
		L/D	10-18	10-18	10-18	10-18	10-18	10-18
		Motor power (kW)	37-45	45-55	55-75	75-90	90-110	110-160
Downstream (optional)	Water ring pelletizer	●	●	●	●	●	●
		Strand pelletizer	○	○	○	○	○	○
		Auto strand pelletizer	○	○	○	○	○	○
		Underwater pelletizer	○	○	○	○	○	○

● Standard ○ Alternative

Recommend Products

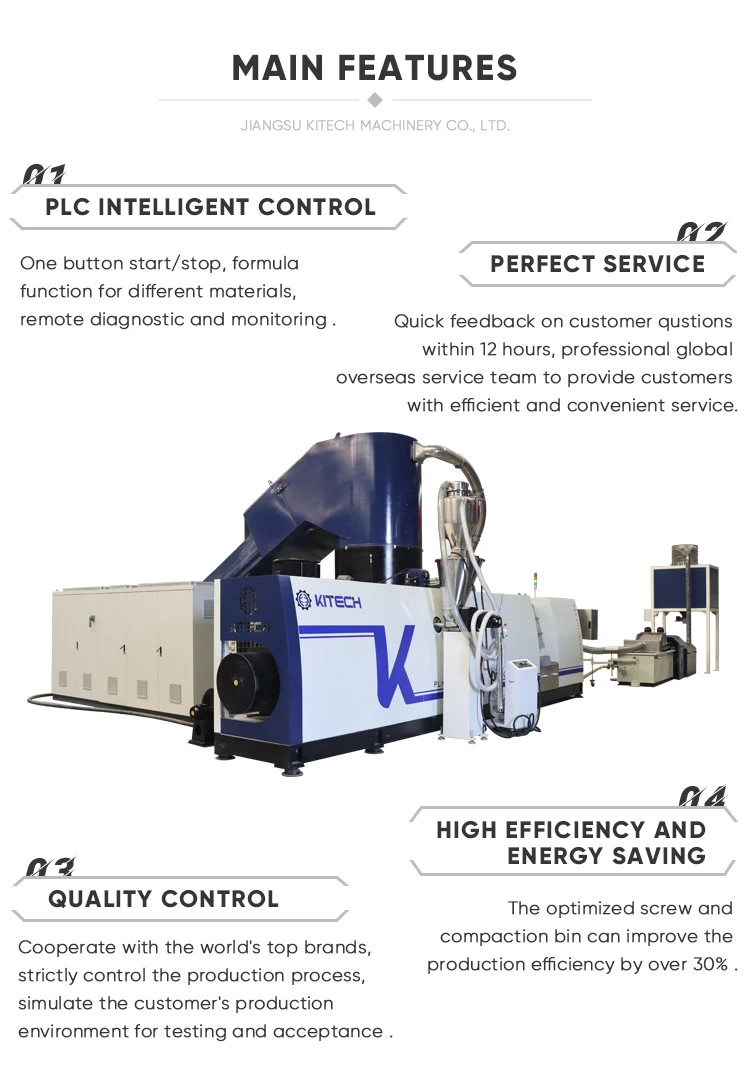

Main Features

●Ability:
KITECH pelletizing system with superior quality which have high productivity for PP/PE/PS/ABS/BOPP/CPP plastic could get high property output pellets.
●Stability:
The pelletizing system is available for 24 hours working non-stop operation.
●Efficiency:
The pelletizing system have very low consumption values for electricity, water and labor.

●Control:
Intelligent automatic control of pelletizing system reduces the labor operation, makes the whole system easier and more reliable to control.
●Service:
Consistently quick and careful service in pre-sales and after-sales process. Overseas installation, commissioning and training are available.

Successful Project

Our Factory

FAQ

HOW TO FIND KITECH MACHINERY?

● Search Alibaba, Made in China, Google, Youtube , Facebook and Link in
● Visit exhibition in different countries
● Send KITECH Machinery an request and tell your basic inquiry
● KITECH Machinery sales manager will reply you in short time and add instant chatting tool

YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.

● If we can fullfill your request and you interested in our products, you may pay a visit to KITECH Machine site
● The meaning of visiting supplier, because seeing is believing, KITECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.

HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?

● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.

SEE KITECH MACHINE HOW TO ENSURE THE QUALITY!

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory

THE AFTER-SALE SERVICE OF KITECH MACHINERY!

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.

Would like to know more about KITECH Machine equipments, feel free to send us an inquiry!
