Waste recycling machine for plastic bottles/pp pe recycling line for washing hdpe flakes

Supplier: Wedo Machinery (Zhangjiagang) Co., Ltd.
Region: Jiangsu, China
Contact: Mr Kingfy Lee
Price: $60000.00 / 1 - 1 sets
$59000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Material of recycling machine:	304 stainless steel	capacity:	500-3000kg/hour
Showroom location:	not any	motor:	Siemens
Voltage:	380v 50hz three-phase (customer standard)	Equipment List:	Dehydrators, Floating Sinks, Hot Air Dryers, Friction Washers, Label Separators, Label Removers, Metal Detectors
Supply capacity:	10 sets per year	Inverter:	ABB
Final Product Moisture:	1.5%	Core components:	PLC, engine, bearing, gearbox, motor, gear
Weight (tons):	20	PPM:	<200
payment terms:	L/C,Western Union,T/T,MoneyGram	Finished goods:	Cleaning HDPE Plastic Sheets
Marketing Type:	Hot Products of 2019	Function:	Plastic bottle recycling machine/hdpe flake cleaning recycling line
Maximum production capacity (kg/hour):	3000	Main selling point:	Stable and efficient
Warranty:	15 months	Bearings:	NSK
Power (kW):	250kw~450kw	port:	Shanghai
Health status:	new	Applicable industries:	Manufacturing plants, mechanical repair shops, food and beverage plants, construction works, energy and mining, recycling plants
Production capacity (kg/hour):	500 - 3000	place of origin; place of origin:	Jiangsu, China
application:	HDPE bottle flake machine	Auto grade:	semi-automatic
brand:	we are	Type of machine:	PP PE bottle washing line
Core Components Warranty:	1 year	Dimensions (LWH):	According to specification
Video external inspection:	if	Packaging Preview:
Packaging Details:	Wooden pallets, wooden boxes, film packaging, standard ocean packaging for plastic bottle recycling machine/hdpe flake washing recycling line	Plastic Type:	pet
Key words:	hdpe bottle flake recycling machine	Mechanical test report:	if

Product Description

Plastic bottle recycling machine/hdpe flake cleaning recycling line

Description of plastic bottle recycling machine/hdpe flake cleaning recycling line:

Waste plastic HDPE bottle washing line is a plastic bottle recycling equipment used to recycle waste HDPE plastic bottles, containers and brackets. Such as plastic milk bottles, shampoo bottles, medicine bottles, PE drinking bottles, plastic basins, plastic buckets, etc. This HDPE plastic bottle recycling can crush, wash and dry dirty HDPE plastic into clean plastic flakes.

After the plastic bottle flakes are cleaned, you can make them into pellets/granules and then go to the next process called plastic pelletizer. Also, you can use clean pills directly. HDPE recycled material can be used to produce plastic pipes, plastic sheets, plastic plates, plastic tanks, etc.

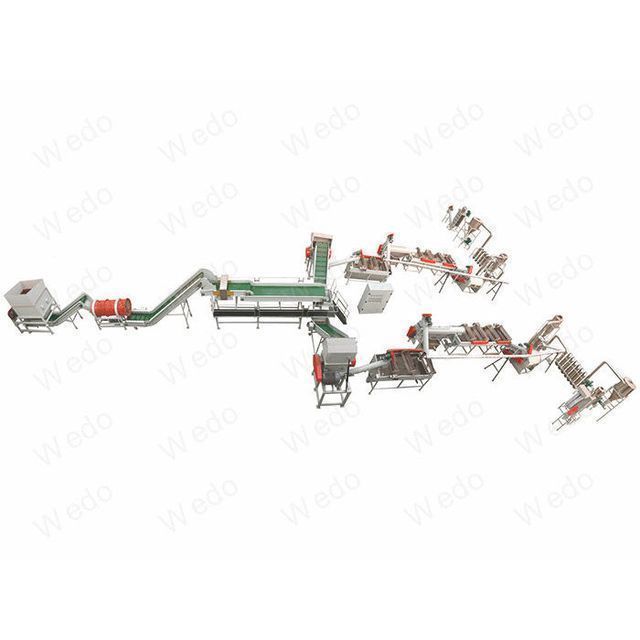

Overview of plastic bottle recycling machine / hdpe flake cleaning recycling line

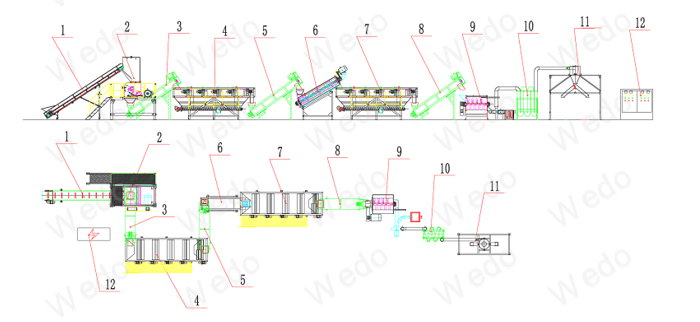

Process chat of plastic bottle recycling machine / hdpe flake cleaning recycling line

The whole plastic bottle recycling machine/hdpe flake cleaning recycling line includes (can be customized):

Belt Conveyor→Wet Crusher→High Speed Friction Washer→Hot Water Floating Washer→Screw Conveyor→Friction Washer→Cold Water Floating Washer→Screw Conveyor→Drying System→Storage Hopper→Control Cabinet

The role of the main components of the plastic bottle recycling machine / hdpe sheet cleaning and recycling line

Belt conveyor: The material enters the crusher from the crawler, and is driven by the inner roller.

Crusher/grinder: Shreds HDPE bottles to small size.

Screw Loader: Place flakes in a hot washer for cleaning.

Hot wash: If the bottle is very dirty, such as oil, sand, you must use hot wash.

Screw Loaders: Place flakes into high-speed friction washers for cleaning.

Friction washer: The material passes through the high speed on the shaft, and according to the blade flap and water spray, the material has a good cleaning effect.

Floating Washer 1: For cleaning pet flakes, making the flakes cleaner and whiter. It is also a must-have equipment for bottles and caps.

Dehydration: The moisture is removed from the flakes to a moisture content of less than 2%.

Silos: Store materials.

Electrical control cabinet

Photo of plastic bottle recycling machine / hdpe flake cleaning recycling line

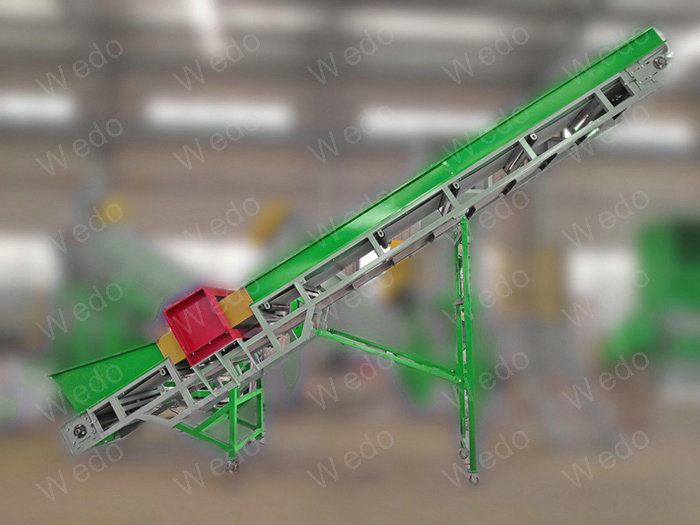

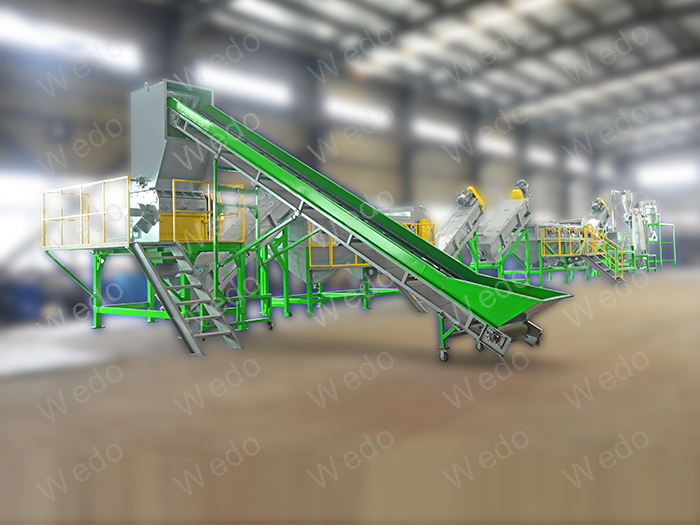

Belt conveyors

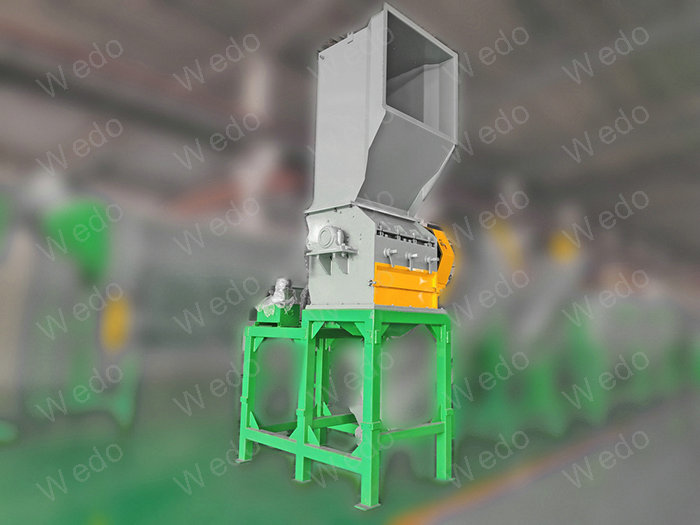

wet crusher

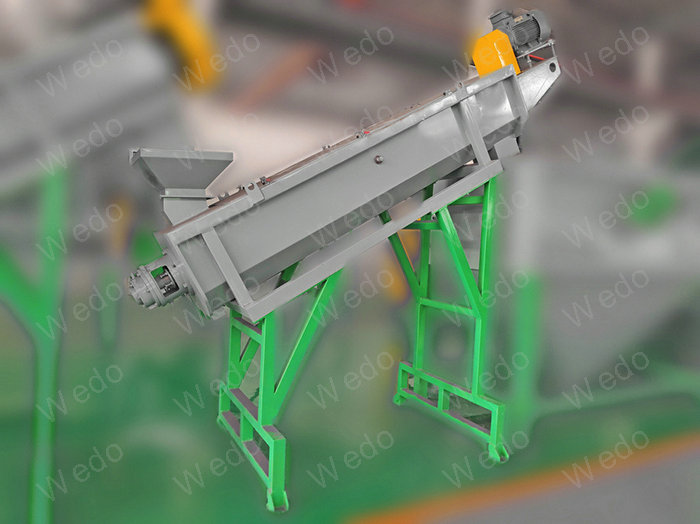

Friction Washing Machine / Friction Washing Machine

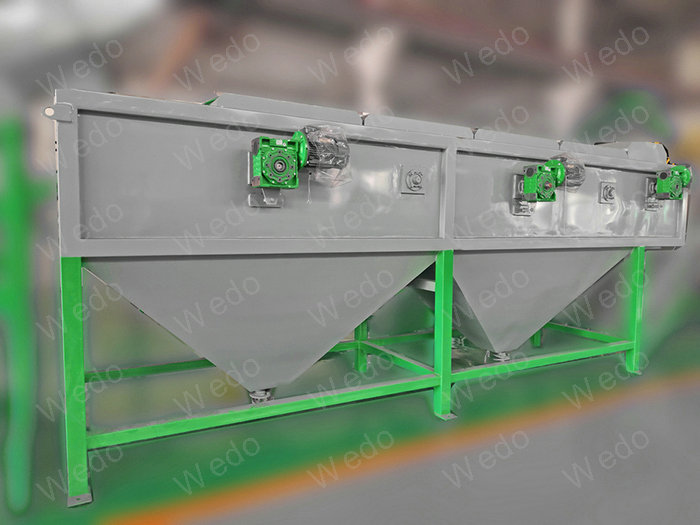

Floating sink (can be designed as a hot water sink)

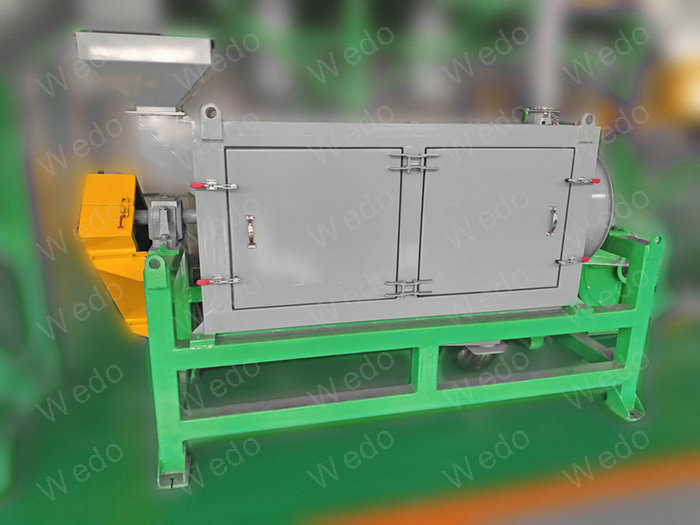

Dryer/Dehydrator

Parameters of plastic bottle recycling machine/hdpe flake cleaning recycling line:

capacity (kg/hour)	energy consumption (kilowatt)	Water Consumption (tons/hour)	labor	moisture content
1000	220	7-8	6-8	<3%
1500	300	10-15	8-10	<3%
2000	360	16-20	8-12	<3%

Advantages of plastic bottle recycling machine/hdpe flake cleaning recycling line:

Very low labor requirements.

Running smoothly.

CE certification, ISO9001 certification, SGS certification

Configure according to customer requirements and materials, and give reasonable suggestions.

After this plastic bottle recycling machine/hdpe flake washing recycling line, we also offer the following PP HDPE plastic granulator recycling line which can make washed HDPE flakes into HDPE granules/granules.

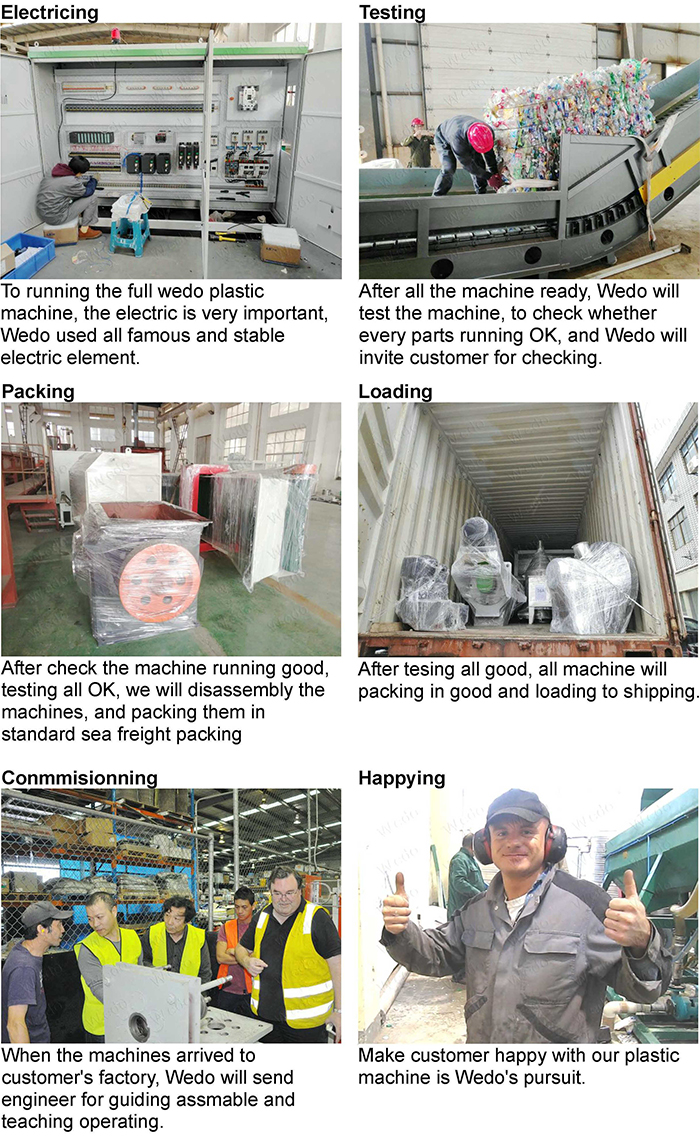

Packaging and Shipping

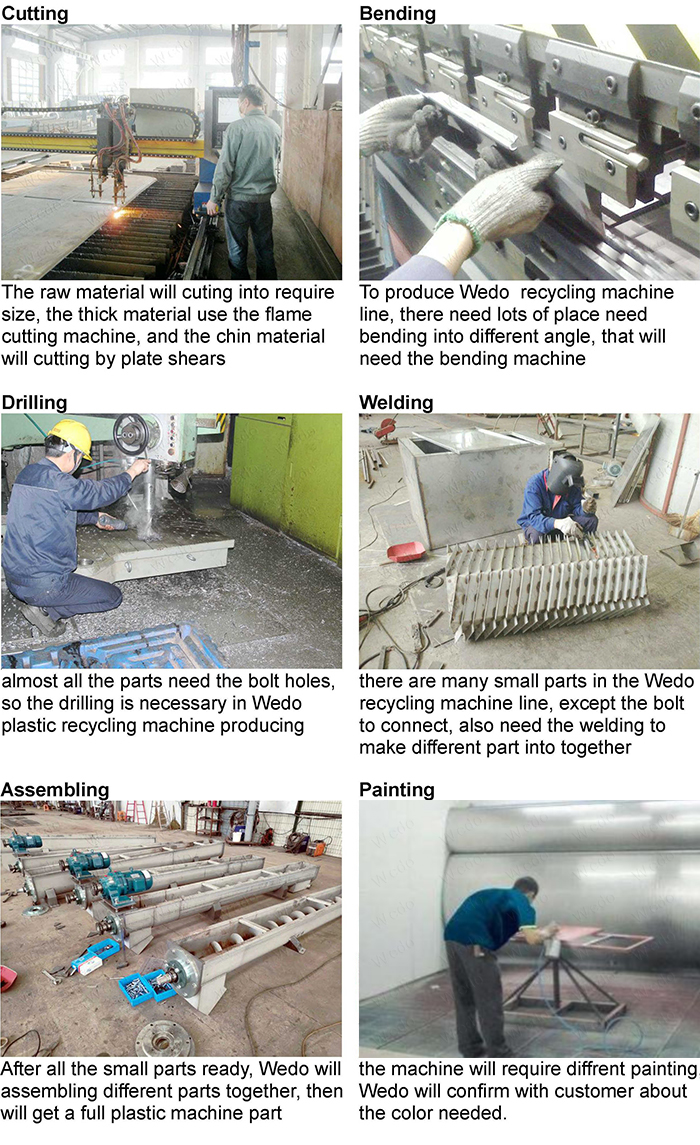

Wedo has a complete step for the plastic bottle recycling machine/hdpe sheet cleaning recycling line to pack and transport before production, which ensures the quality of the plastic recycling machine delivered, and the customer gets a good machine.

our service

We provide you the best service in plastic bottle recycling machine / hdpe flake cleaning recycling line
