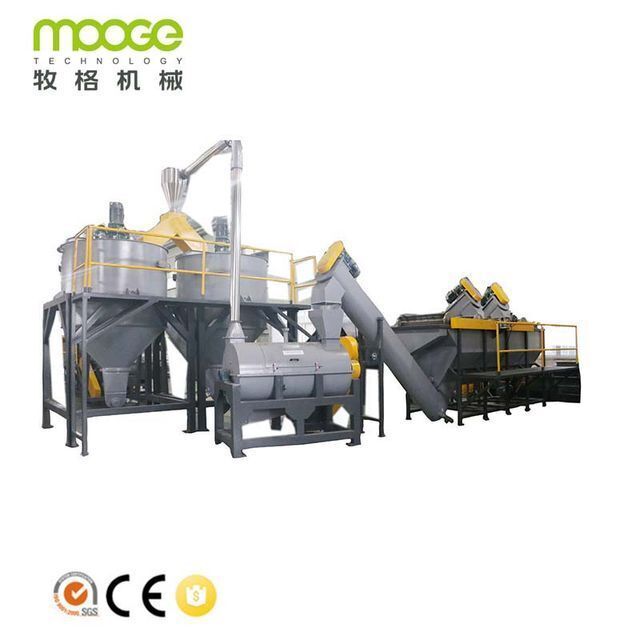

Waste PET plastic bottle flakes washing recycling line/machine/plant

Supplier: Jiangsu Mooge Machine Co., Ltd
Region: Jiangsu, China
Contact: Mr Michael Huang
Price: $90000.00 / 1 - 1 sets
$88000.00 / 2 - 2 sets
$85000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Ordinary Product;	Voltage:	Customized;
Machine Type:	PP PE Bottle Washing Line;	Max.Production Capacity (kg/h):	5000;
Package Preview:	;	Dimension(LWH):	depend on the model;
Weight (T):	20;	Warranty:	1 Year;
Automatic Grade:	Semi-automatic;	Showroom Location:	Thailand,South Korea,Sri Lanka;
Final flakes size:	10-12mm;	Port:	Shanghai;
Supply Ability:	6 Sets per Month;	Machinery Test Report:	Not Available;
Warranty of core components:	1 Year;	Power (kW):	400;
Condition:	New;	Crusher balde:	D2;
Packaging Detail:	Film;	Plastic Type:	PET bottle,PET;
Moisture Content:	<1.5%;	Applicable Industries:	Manufacturing Plant;
Core Components:	PLC,Gearbox,Motor;	Contactor:	SCHNEIDER;
Place of Origin:	Jiangsu, China;	Brand Name:	MOOGE;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T;	Production Capacity:	500-5000kg/hr;
Inverter:	ABB Brand;	Production Capacity (kg/h):	500 - 5000;
Application:	Waste plastic recycling;	Video outgoing-inspection:	Provided;
Equipment List:	Dewatering Machine,Floating Washing Tank,Hot Air Dryer,Label Separator,Label Remover,Hot Washing Tank;	PE/PP:	<50ppm;
Label:	<50ppm;	Key Selling Points:	High Productivity;
The line washing part:	made by stainless steel;

Product Overview

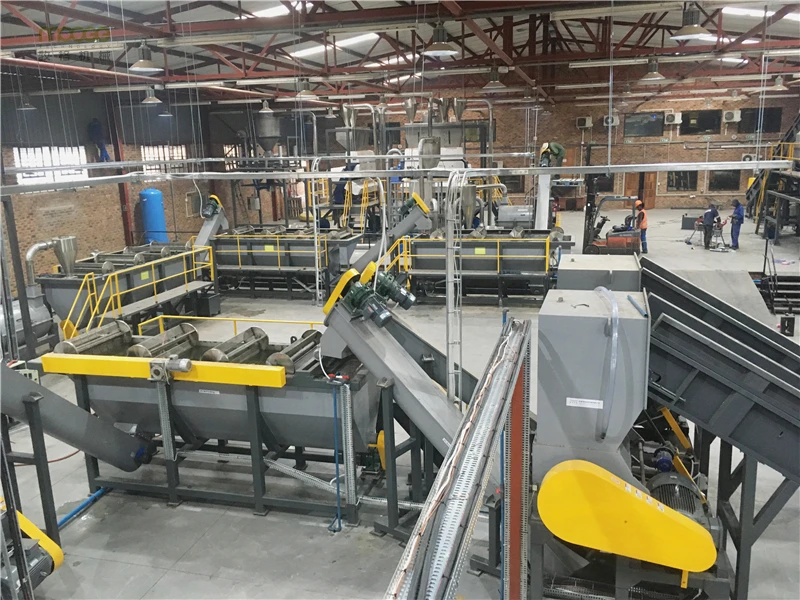

This waste plastic pet bottle recycling washing machine is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PET material, such as water bottles, pet sheet, pet containers, etc.
The waste dirty material go through delabelling, crushing, washing, drying, and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.

Product Specification

Model	Capacity	Installed Power	Steam Use	Water Supply	Area Requied
MT-500	500 kg/hr	185 KW	Optional Choose	4-5 m³/hr	553.54.5 m
MT-1000	1000 kg/hr	315 KW	Optional Choose	5-6 m³/hr	6254.5 m
MT-2000	2000 kg/hr	450 KW	Suggest Use	10-15 m³/hr	8065 m
MT-3000	3000 kg/hr	600 KW	80000 Kcal	20-30 m³/hr	10085.5 m
MT-4000	4000 kg/hr	800 KW	100000 Kcal	30-40 m³/hr	13586.5 m
MT-5000	5000 kg/hr	1000 KW	120000 Kcal	40-50 m³/hr	13586.5 m

Machine Details

Bale Opener

Function: Opening the plastic bottle bales and scatter the bottles

Trommel Machine

Function: Loosen the bottles, remove the sand or stone from bottles, feeding out bottles constantly

Label Remover Machine

Function:Remove the labels from the waste PET bottles

Pre-washer Machine (Optional Choice)

Function: With steam to pre-wash the bottles and remove out the dirty

Manual Sorting Belt (with high platform)

Function: Sorting out the remain labels manually, selecting out different color and Non-PET bottles

Plastic Crusher Machine

Function: Crushing the bottles into small flakes, wet working with water

Floating Washing Tank

Function: Washing out the floating caps, rings and dirty from the bottle flakes

Hot Washer Tank

Function: With hot water and chemical reagent to washing off the oil, glue and dirty

Horizontal Dewatering Machine

Function: Remove the water from the flakes

Pipe Drying System

Function: With hot air drying the flakes

Zig-zag Air Classifier

Function: Remove residual fines/dust/labels

Color Sorter (Optional Choice)

Function: Sorting out the different color of flakes

Related Product

We also supply plastic strap production line which is mainly used to make different sizes of pet straps with virgin or recycled pet flakes.
PET packing strap is widely used to replace the steel strap for packing carton, wooden case, etc. It is popular with its good tensile strength, non-rustiness, and low use-cost.

With this plastic strap production line, we can achieve the purpose of protecting our environment by reusing the waste plastic.

Packing & Delivery

• For the loose cargo we will packing by wooden box.
• For the full container loading we are packing the machine by film and some on pallet accordingly.
• We can also ship the goods by air or by sea as buyer request.
• We will send pictures of cargo loading to our client to check and keep recording.
• We can send cargo to client's warehouse to loading.

Company Profile

We attend the Chinaplas Exhibition every year (In Shanghai and Guangzhou) and take with our machine for test run at the booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend, Sincerely welcome to our booth for visit and discuss about detailed issues.

Our Service

• Pre-sale: we provide our client the detailed technical offer, the sales contract etc.
• In-sales: we supply the machine layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.

In order to match your requirement and provide you a proper offer, please advise:
• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle? PET bottles? or other plastic?
• What capacity(kg/h) do you want? such as 500kg/hr or 1000kg/hr?
• What is the final size(mm) of flakes you want?
• Other special requirements about the pet bottle washing machine if you have?
