Products Status: | New; | Transparency: | More than 93%; |
Certification: | RoHS,ce,FCC; | Selling Units: | Single item; |
Transfer method: | USB2.0; | Thickness: | ≤200um; |
Package: | Yes; | Series: | For Business; |
Product Name: | 43 inch transparent capacitive touch film for display; | Packaging Detail: | Cylinder+Carton box; included 1pcs touch foil ,1pcs touch foil controller, 1pcs touch foil USB cable(1.5M); |
Place of Origin: | Guangdong China; | Lifespan: | 7-9years; |
Interface Type: | usb; | After-sales Service: | Call Center and on-line Technical Support,Onsite Training and Inspection,Free spare parts,Return and Replacement,Repair,Others; |
Touch points: | 12 Points; | Single package size: | 90X19X19 cm; |
Operation system: | Windows 7/8/8.1/10,Linux, Android; | Color: | Multi; |
Certificates: | CE,ilac-MRA,CNAS,CAL,CMA,FCC,ROHS,ISO; | Warranty(Year): | 1-Year; |
Aspect Ratio: | 16:9; | Warranty: | 1 Year; |
Brand Name: | WiViTouch; | Type: | Capacitive; |
Single gross weight: | 3.0 KG; | Customization: | Support; |
Product Description
What is WiViTouch touch foil? WiVi uses a unique transparent touch foil that can be controlled through the glass.
Everything is installed on the inside of the shop window.
WiVi Touch Foil can be combined with projection or LCD screens to create an interactive shop window, outdoor/indoor kiosks, digital signage, touch screen table and LCD monitor etc.
WiVi Touch Foil acts as an eye-catcher, it creates instant interactivity.
Paramete Name | WiViTouch XT series Capacitive touch foil specification | | | |
Product Series | WVT-XTM | WVT-XTA | WVT-XTB | WVT-XTC |
Touch points | 12 points | 20 points (Can be upgraded to 40 points)
| 30 points (Can be upgraded to 40 points) | 40 points |
Regular size | 15-43 inches | 30-65 inches | 55-98 inches | 43-180 inches |
Touch deviation | ≤0.5mm | ≤0.5mm | ≤0.5mm | ≤0.5mm |
Touch sensors | TX28 RX48 | TX56 RX96 | TX80 RX142 | TX136 RX240 |
FPC | 130 | 120 | 120 | |
Scanning speed | 8 ms / fram | 8 ms / fram | 8 ms / fram | 8 ms / fram |
Driver | Drive-free | | | |
Windows | Win7/8/8.1/10 | | | |
Andriod | Kernel version 3.10+ or higher | | | |
Linux | Kernel version liunx3.10+ or higher | | | |
Customization | Support | | | |
Waterproof | Yes | | | |
Deviation calibration | Software calibration | | | |
Certificates | CE、ilac-MRA、CNAS、CAL、CMA、FCC、ROHS、ISO | | | |
Package list | Touch foil*1, controller*1,1.5m USB cable *1 | | | |
Thickness | ≤200um | | | |
Transparency | More than 93% | | | |
Supply voltage | 5V | | | |
Transfer method | USB2.0 | | | |
Safe distance | 2-5mm(distance between LED and touch foil) | | | |
Transmission distance | ≤50m(add USB signal amplifier, etc) | | | |
Support gesture | Click, drag, zoom, rotate | | | |
Ambient light | The whole point of the anti-glare | | | |
Sensing distance | ≤10mm | | | |
Why the touch foil becomes more and more popular?
1. Lightweight foil simple to apply to a window, glass, acrylic, and rear projection screens.
2. No requirement to have any external wires or devices as all of the touch screen components are situated safely behind the glass.
3.High quality transparent multi-touch foils (up to 40 touch points),multi touch function – glass up to 12mm thick.
4. Works with all existing multimedia applications PowerPoint, Macromedia Flash, Web sites, etc.
5. Not sensitive to outer light, the change of light would not affect.
6. Wide range of screen regular sizes available up to 100" 4: 3 or 16: 9 format.
7.Includes full installation kit – touch foil, controller board & USB line.
8.No mechanical or pressure-sensitive elements, durable and stable.
9. Easy to install software .
10.Accurate positioning.
11.High-resolution controller.
>>>Back to the Category
>>> Contact us now
Please note : WVT-XTM-43B is for tail out from bottom;
WVT-XTM-43S is for tail out from short side.
What application the touch foil works for?
Integrated nano-touch film, can realize interactive projection system, touch one machine, touch coffee table/table, touch wall,
touch TV etc. These system integration products or solutions can be applied in the exhibition/hotels/airports/government/home/
teaching /store windowdisplays/Indoor / outdoor kiosks Glass partitions/Corporate offices/Training / meeting
rooms/Exhibitions/conferences Museums / visitor attractions
How does the touch foil work?
Only a few microns thick our thin-film display screens can turn any surface into a high definition multimedia display surface.
Rear projected images, videos, and dynamic media content can be displayed in any format, anywhere.Installation: Attached to the
glass, LCD or other media

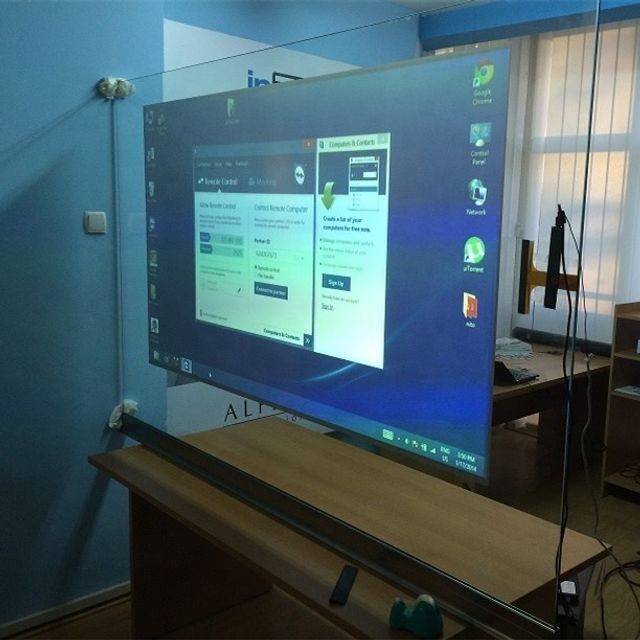

Mode A type
Touch foil + rear projection film + projector + PC This type of installation solution can be used for glass windows, store windowdisplays, Indoor, outdoor kiosks Glass partitions, Training, meeting rooms
Mode B type
Touch foil + LCD monitor + PC
This type of installation solution can be used for touch kiosks, LCD monitors, LCD advertising display, ATM, vending machines, etc.
>>>Back to the Category
>>> Contact us now
WiViTouch Touch foil Advantages
1. You’re buying from a factory! Price, Quality and Lead time is guaranteed! China's first manufacturer of touch foils for R&D, production and sales, with more than 10 years experience in touch foil
FPC double laser soldering
Foil QC inspection
Controller board QC inspection
Workshop
Inventory
QC passed
2. Touch foil certificates:CE, ilac-MRA, CNAS, CAL, CMA, FCC, ROHS, ISO3. Strong R&D department, world leading touch foil technology!
* Simple operation of the software and easy maintenance. Even a green hand can do the calibration in 1 minute.
* High signal to noise ratios makes it's strong to resist interference.
* Able to work under glass max 12mm( if glass thickness over 8mm please inform in advance).
* Support manually adjust the threshold value to adjust its sensitivity.
* FPGA algorithm realize object recognition.
* Automatically amplifier the neighboring cable's signal if there is cable got damaged, so the foil works fine as long as the damaged wires are separated by other good wires.
* No dead corner for touch.
4. Professional devices, custom service is available.
* Accept customization:10''-240'' ,Format ratio(optional):16:9, 16:10,4:3 ,Touch points:12-40points
* Max size can do is 5850*1400mm.
* Till now, the max size we made is 4100*1200mm.
5.Our team has more than 2 -10 years of sales experience, professional and efficient .6.1 year comprehensive free warranty.
7.Fast delivery.
XTA Series/Size | 1 Pieces | 50 Pieces | 200 Pieces | 500 Pieces &above |
32 inch | 10workdays | 11 workdays | 14 workdays | 10-15 workdays |
43inch | 10workdays | 11workdays | 14 workdays |
10-15 workdays
|
47 inch | 10workdays | 11 workdays | 14 workdays |
10-15 workdays
|
50 inch | 10workdays | 11 workdays | 14 workdays |
10-15 workdays
|
55 inch | 10workdays | 11 workdays | 14 workdays |
10-15 workdays
|
60 inch | 10workdays | 11 workdays | 14 workdays |
10-15 workdays
|
65 inch | 10 workdays | 11 workdays | 14 workdays |
10-15 workdays
|
>>>Back to the Category
>>> Contact us now
Customer Feedback
>>> Click Here To Get More Information From Us Now
Certifications
Package content
Touch foil *1
USB cable *1
Controller*1
