Suitable for scrap copper metal recycling copper plastic sorting machine mini cable granulator copper wire separator machine

Supplier: Xi'an Grand Harvest Equipment Co., Ltd.
Region: Shaanxi, China
Contact: Ms NA WANG
Price: $6999.00 / 1 - 1 sets
$6899.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Machinery Repair Shops,Home Use;	Package Preview:	;
Final product:	Copper Granule;	Voltage:	220V/380V/415V/440V/customized;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Place of Origin:	Zhejiang China;
Brand Name:	BSGH;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Raw material:	Scrap Copper Wire;	Single gross weight:	39.0 KG;
Packaging Detail:	Suitable for scrap copper metal recycling copper plastic sorting machine mini cable granulator copper wire separator machine Packaged with plywood case;	Power (kW):	12.24;
Product name:	Cable Granulator Recycling Machine;	Capacity:	50-100 kg /h cable shredder;
Marketing Type:	New Product 2020;	Showroom Location:	UAE,Romania,Kyrgyzstan,Uzbekistan,Tajikistan,Egypt,Canada,Turkey,Saudi Arabia;
Range:	Below 25mm cable range;	Video outgoing-inspection:	Provided;
Warranty of core components:	1 Year;	Machinery Test Report:	Provided;
Condition:	New;	Single package size:	50X35X60 cm;
Local Service Location:	Argentina,Colombia,Kyrgyzstan,Egypt,Turkey,United Kingdom,Italy,Mexico;	Advantage:	High Recycling Ratio;
Selling Units:	Single item;	Type:	Fully Automatic;
Material / Metal Processed:	Brass / Copper,Aluminum;	Core Components:	PLC,Motor;
Weight (KG):	1220;	Color:	Customizable copper scrap machine;
Name:	Copper Wire Recycling Machine;	Warranty:	1 Year;
Key Selling Points:	Competitive Price;

Suitable for scrap copper metal recycling copper plastic sorting machine mini cable granulator copper wire separator machine

Product Description

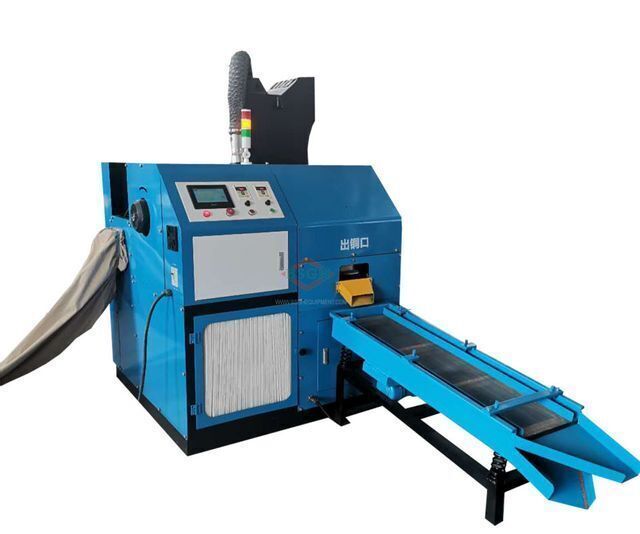

2020 BSGH new design small copper wire granulator machine BS-100

The copper metal recycling markets appear a new small capacity copper wire recycling machine BS-100,Mainly used for recycling your wasted copper wires.

How to recycling the easted scrap wires?The BS-100 cable granulator machine will first crush then separate the copper wires.You will get the pure copper and pure plastic .The copper crusher machine pictures:

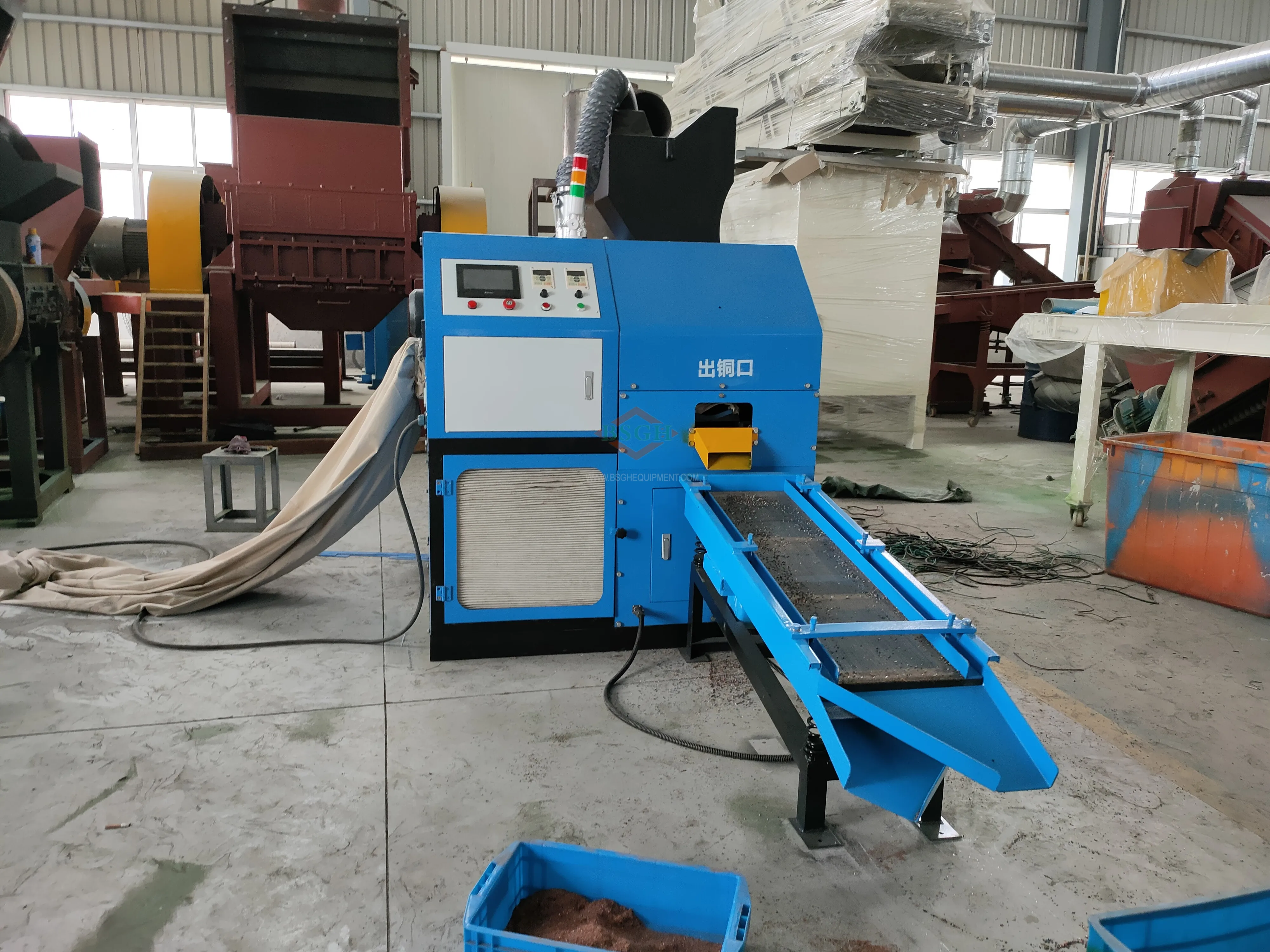

BSGH copper wire separator machine BS-100 more details picture:

The smallest copper granulator machine consist of crusher ,air gravity separator,vibrating table,dust collection parts.

The crusher :Crush the wasted wires

The air gravity separator:separate the copper and plastic

The vibrating table:sort the copper and plastic

The dust collection parts:Reduce the pollution during the whole process.

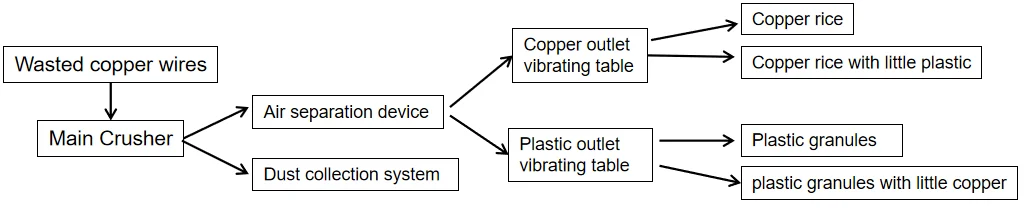

The cable granulator machine BS-100 process step:

Step 1: Feeding scrap cable into feeding holes and crush the copper wires to small pieces by crusher.
Step 2: Crushed cables drop into Air separation device and vibration separator.
Step 3: Mixed cables is separated by vibration separator to pure pvc and copper granules through air blowing and separator vibrating.

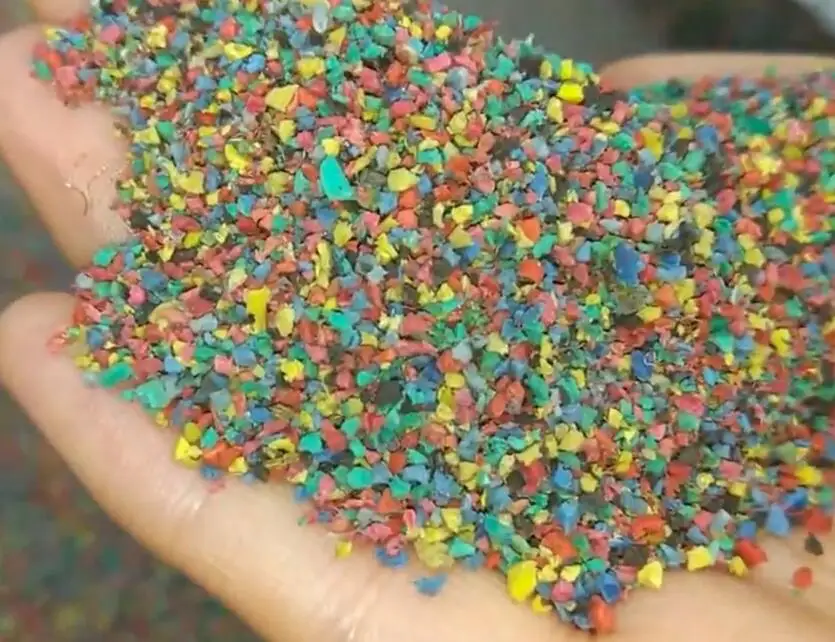

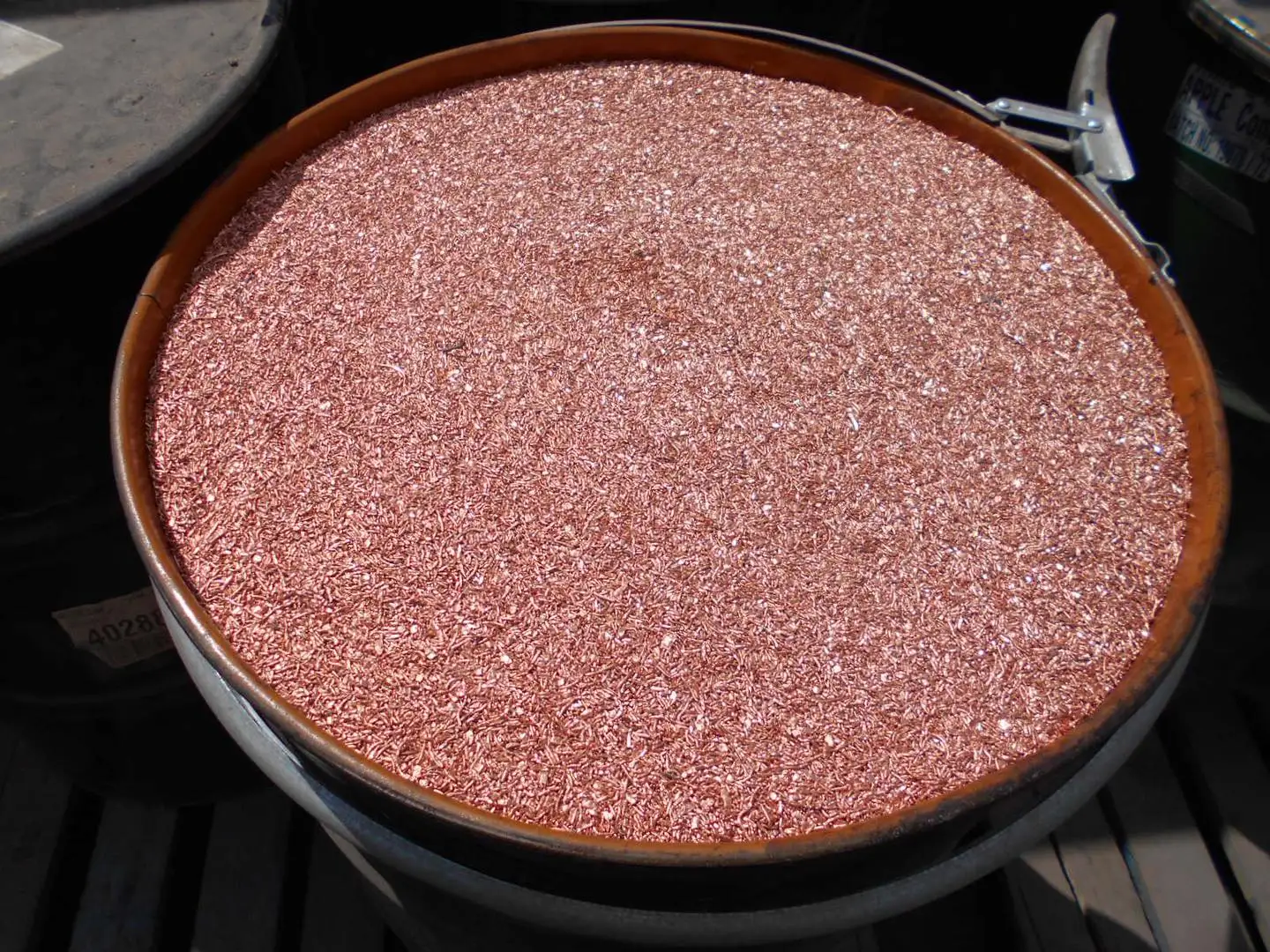

After the copper wire separator machine process,the final products:Pure copper granules and pure plastic granules

Are you happy to see the pure copper granules ?Do you also want get the Pure copper granules ?Call BSGH Hannah:+86 18066799003 ,I will provide you professional copper recycling solutions.

Now ,I will introduce you the machine technicial data:

Product Name	BS-100 mini cable granulator
Capacity	60-100 kg per hour copper separator
Can process copper wire range	Below 25mm wire granulator
Machine weight	1220 KGS cable wire shredder machine
Machine size	136013001915mm recovery copper machine
Machine power	12.24 kw copper recycling machine

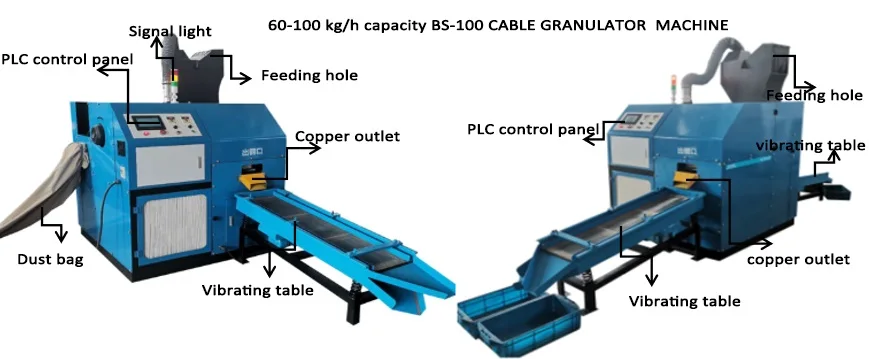

May you also want learn more about the machine details parts ?the below picture will show you :

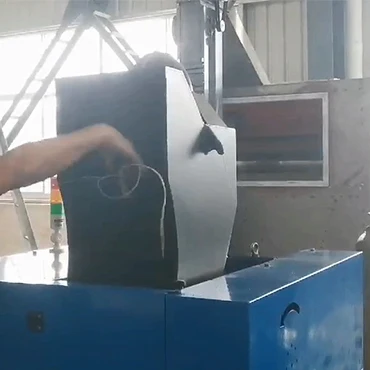

Feeding hole

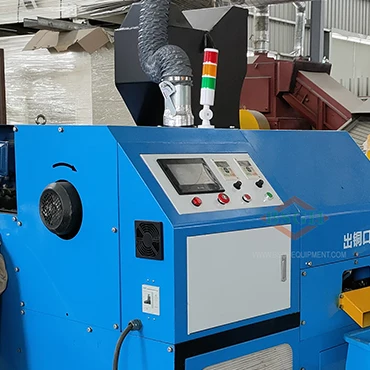

Control panel

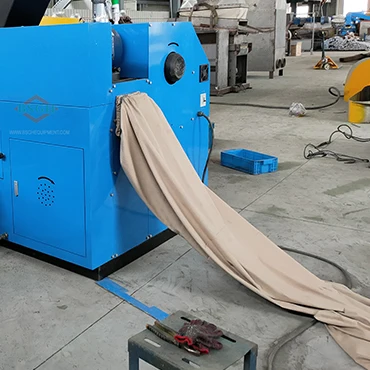

Dust bag

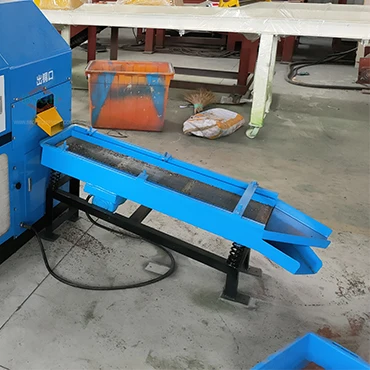

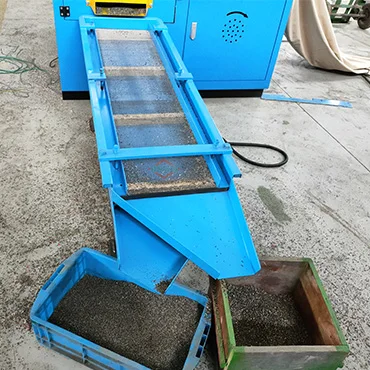

Plastic outlet vibrating table

Copper outlet vibrating table

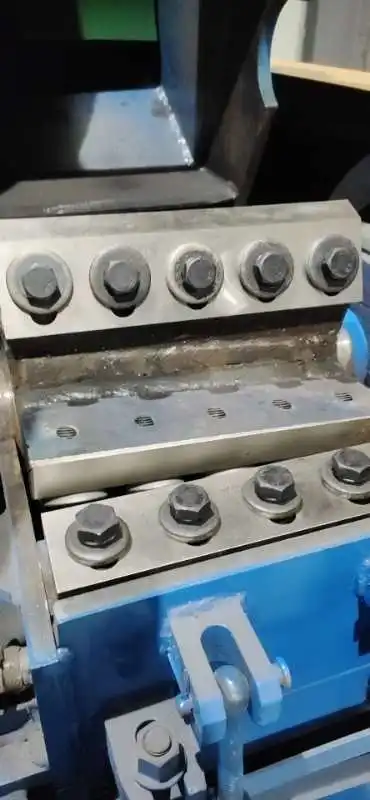

Crusher blades

Now,I will introduce the import Wearable accessories for the cable wire granulator machine :

Crusher blades

One machine equipped with total 7 pieces blades (5 moving blades and 2 fixed blades ),blades raw materials 9Crsi.

Usually we suggest you consider 3-4 sets crusher blades as spare parts .

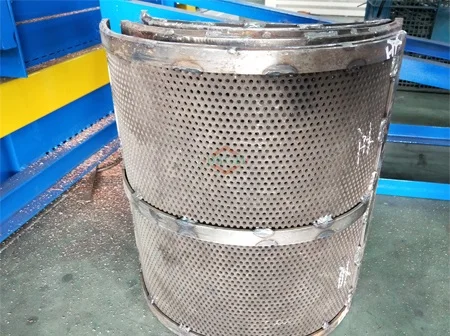

Crusher sieves

The crusher sieves have 3mm,4mm,5mm. According to you process the different wires,Use the different crusher sieves.

We also suggest you consider 2-3 pieces crusher sieves as spare parts.

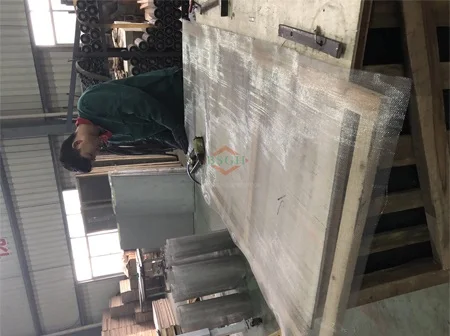

Air separation net

The Air separation net is import for the air gravity separator device.In order to let you get more pure copper,you need let the net keep clean.Visit the below video link for how to clean the air separation net :https://youtu.be/kyPGFPBl3Ck

Whether all the copper wire recycling machine BS-100 details clearly for you ?Please whatsapp Hannah:+86 18066799003 for more details.

Certification

CE certificate with the scrap copper wire recovery machine,quality guarantee.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1.)Plastic film and plywood case packaging for our copper wire recycling machine.

2.)LCL shipping by sea for the cable separator machine BS-100.

Company Profile

Xi'an Grand Harvest Equipment Co., Ltd. is specializing in various recycling equipment, including cable recycling machines (such as cable stripper machines and cable granulator machines) and other recycling machinery (like radiator recycling plants and motor recycling machines and so on).

We have many years' experience in the recycling field, and also have more than 4 years' Aliaba sales experience. We have many superior-quality customers from overseas. We pursue to supply our customers with excellent quality and outstanding services.

We welcome any customer from abroad to build long-term business relationships with us. We Young, We Fight, We Can!

Professional technician team

The Technician team have more than 20 years professional experience.Update the copper metal recycling machine's tech and design everyday for more perfect performance.

60 PRODUCTION LINE

Professional design, production, research and development, raw material control, testing, the best quality products, the best prices.

Best after sales service provide

1.24 hours Online and offline services 2.Technical installation (Scheduled installation) and Machine maintenance. 3.1 year Warranty

Feedback from customers

Good feedback from our client .BSGH copper wire separator machine have best performance in the copper wires recycling,suitable the scrap yard.If you want your copper granules sell a more higher price,Our BSGH MINI copper wire granulating machine is more suitable.

FAQ

Q1: Does the machine need to be installed?
A1: Does not need to be installed,directly connected to the electricity.
Q2: What size can be handled?
A2: The minimum and maximum wire diameter that the cable granulator machine can handle: Below 25mm
Q3: What is the separation rate and pure copper rate?
A3: The separation rate is generally 99.8%, and the pure copper rate is generally between 40% and 50% depending on the type of wire.
Q4: How to operate in different situations?
A4: Plastic at the copper outlet: you need to increase the air volume or reduce the vibration frequency. Copper particles in the plastic port: you need to reduce the air volume or increase the vibration frequency.
