2015 hot sale china KING VIEAL KV-03 waste oil burner/industrial burners china/waste oil burner system

Supplier: Qingdao Kingwei Energy Saving Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Andy Zhang
Price: $670.00 / 1 - 1 units
$660.00 / 2 - 2 units
$650.00 / 3 - 4 units
$620.00 / >=5 units
Min. Order: 1 unit

Click here to contact

Product details

Max.output heat:	30,000Kcal/H (120,000Btu/H);	Tube Diameter:	90mm;
Product name:	waste oil burner;	Video outgoing-inspection:	Provided;
Machinery Test Report:	Provided;	Package Preview:	;
working pressure:	0.5bar (7psi);	Brand Name:	KING VITAL;
Oil consumption:	2-4L/H;	Type:	Oil Burner;
Single package size:	58X53X42 cm;	Marketing Type:	Hot Product 2020;
Packaging Detail:	1 unit: double carton box with foam for express to door package size:58x53x42cm G.W:25kg;	Output Power:	14-50KW;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Place of Origin:	Shandong China;
Showroom Location:	Argentina;	Local Service Location:	Argentina;
Single gross weight:	25.0 KG;	Application:	0.1T boiler, furnace, oven, grain dryer, etc;
Selling Units:	Single item;	After Warranty Service:	Video technical support,Online support,Spare parts;
Condition:	New;	business type:	original manufactuer;
fuels:	all kinds of waste oil ,dirty oil, used oil, etc;	Nozzle:	Siphon Brass 1*1.0mm;

Available Fuel List

Our burner can utilize all kinds of liquid oil/waste oil with or without Impurities, can be divided to six types, 1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc 2) #2-#5 fuel oil 3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc 4) Mix oil 5) Diesel oil 6) KV-Artesian Oil Burner for Corrosive fuel, strongly acidic, strongly alkaline, such as pyrolysis oil, waste oil from tire&plastic, methanol, etc (Link)

Waste Engine Oil

Vegetable Oil

Diesel Oil

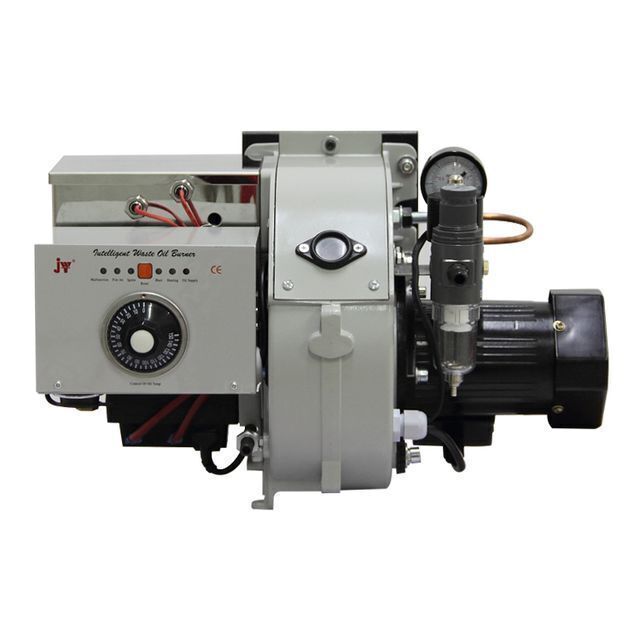

KV03 Oil Burner Description

KV03 Oil Burner Feature

1) PC Board control, works fully automatically

2) Work stage & malfunction readable, suit for different kinds of fuel

3) Customized siphon brass nozzle, original flame ring, reach the best combustion

4) Multi safety protection

Oil pump protection

Stop the burner when oil pumps more than 2 minutes

Photocell protection

Stop the burner when there is light

Oil level protection

Stop the burner when oil level reachs the high oil float

External Air Compressor Selection Guide

Burner Catalogue

Kingwei Waste Oil Burner Catalogue
Model	Oil Consumption	Output Power	Max.output Heat
Kv03	3 L/H	40 Kw	30, 000 Kcal/H
Kv05	5 L/H	60 Kw	50, 000 Kcal/H
Kv10	8-10 L/H	120 Kw	100, 000 Kcal/H
Kv20	12-20 L/H	230 Kw	200, 000 Kcal/H
Kv30	21-30 L/H	340 Kw	300, 000 Kcal/H
Kv40	30-40 L/H	460 Kw	400, 000 Kcal/H
Kv50	40-50 L/H	570 Kw	500, 000 Kcal/H
Kv60	50-60 L/H	700 Kw	600, 000 Kcal/H
Kv90	70-90 L/H	1100 Kw	900 000 Kcal/H
Kv120	100-120 L/H	1400 Kw	12, 00, 000 Kcal/H
Kv180	150-200 L/H	2000 Kw	18, 00, 000 Kcal/H
Kv240	200-240 L/H	2700 Kw	24, 00, 000 Kcal/H
Kv360	300-360 L/H	4100 Kw	36, 00, 000 Kcal/H

Installation Example

Our waste oil burner has various applications, can use for both individual and industrial area

Small power burners are very popular for individual heating, for home, swimming pool, grain dryer, chicken house, fryer, etc

Big power burners are suitable for industrial area, such as boiler, furnace, grain dryer, mold casting, reactor, incinerator, etc
