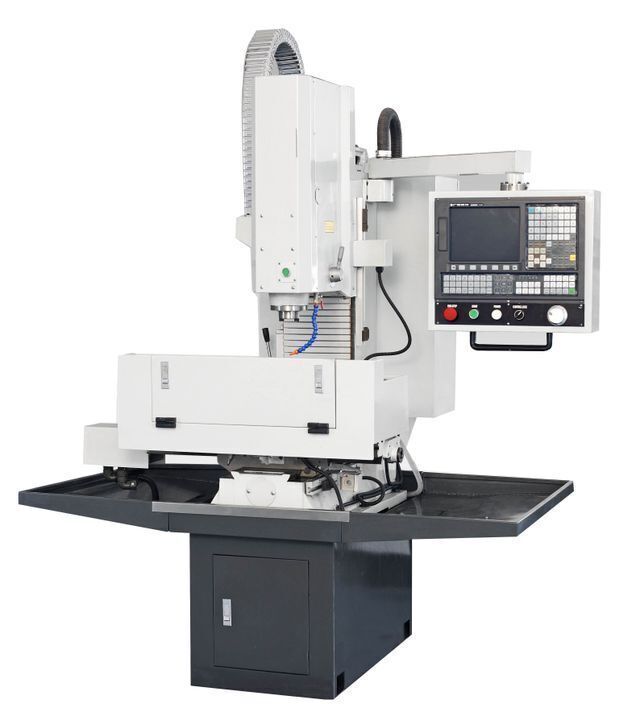

XK7124B VMC Machine center 3 axis CNC vertical metal milling machining GSK SIEMENS 802D mach centres FANUC CNC Controller

Supplier: Shenzhen Integrity Industry Co., Ltd.
Region: Guangdong, China
Contact: Ms Wong Lynda
Price: $9228.00 /set
Min. Order: 1 set

Click here to contact

Product details

Video outgoing-inspection:	Provided;	Core Components:	others;
Application:	Machining box parts, shell parts, disc-shaped parts;	Number of Axes:	3;
Weight:	1000kg;	Port:	Shenzhen, Shanghai, Qingdao;
Local Service Location:	Indonesia,Mexico,Argentina,South Africa;	Weight (KG):	1000;
Model:	XK7124B;	Table Travel (X) (mm):	430 mm;
Certification:	CE;	Marketing Type:	Ordinary Product;
Showroom Location:	Indonesia,Mexico,Argentina,South Africa;	Dimension(LWH):	1900x1620x2480mm;
Type:	VERTICAL;	Machinery Test Report:	Provided;
Warranty:	2 years;	Range of Spindle Speed(r.p.m):	100 - 6000;
Condition:	New;	Machining Capacity:	Heavy Duty;
Warranty of core components:	1 Year;	Packaging Detail:	EXPORT PACKING;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Year:	2019;
Key Selling Points:	Competitive Price;	Table Travel (Z) (mm):	400 mm;
Payment Terms:	L/C,Western Union,T/T;	X/Y/Z-Axis travel(mm):	530/280/400;
Model Number:	XK7124B;	Table Travel (mm):	530/280/400;
Package Preview:	;	Place of Origin:	Guangdong China;
Max load of worktable:	60KG;	After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Supply Ability:	10 Set/Sets per Month;	CNC or Not:	CNC;
Positioning Accuracy (mm):	0.04;	Brand Name:	INTEGRITY;
Table Travel (Y) (mm):	280 mm;	T slot(mm):	16360;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Spindle Taper:	BT30,BT30;
Repeatability (X/Y/Z) (mm):	0.02mm;	Max. Table Load(kg):	60;

Products Description

<<<Click Here Learn More>>>

Click here for a free quote

Model	XK7124B
WORKTABLE	Size of worktable(L×W)(mm)	800×240
	Size of worktable(L×W)(mm)			900×240 Optional
		T slot(width ×qty×spaces)(mm)	16×3×60
		Max loading weight on worktable(kg)	60
TRAVEL	X/Y/Z-Axis travel(mm)	430×280×400
	X/Y/Z-Axis travel(mm)			530×280×400
		Distance between spindle nose and table(mm)	50-450
		Distance between spindle nose and table(mm)		50-550
		Distance between spindle center and column(mm)	297
SPINDLE	Spindle speed(r/min)	100-6000
		Spindle taper	BT30
		Tool clamping way	Pneumatic
		ATC capacity(optional)	4pcs Simple ATC
FEEDING	Feeding speed(mm/min)	0-2000
FEEDING		Rapid feeding speed:X,Y,Z axis(m/min)	6
ACCURACY	Positioning accuracy(mm)	0.04
		Repeatability accuracy(mm)	0.02
		Min.set unit(mm)	0.001
MOTOR	Main motor power (kw)	2.2/3.7
MOTOR		Feeding motor power:X/Y/Z Axis(kw)	1/1/1.5
TOOLS	Max.size of tool(mm)	Φ60×175
TOOLS		Max.loading weight of Tool(kg)	3.5
OTHERS	N.W(include machine stand)(kg)	1000
		Overall size(L×W×H)(mm)	1640×1205×1950(2050)
		Packing size(L×W×H)(mm)	1900×1620×2480(2580)
		Loading amount(20")	3sets

click here >>> contact us to get more informations

Features:
4 pcs simple tool magazine on worktable with high efficiency. It can realize all the processing as facing, drilling and tapping in one clamping.High and low two steps spindle speeds available and stronger torque for lower step speed.
3 axis transmission by precision ball leadscrew with servo motor.
