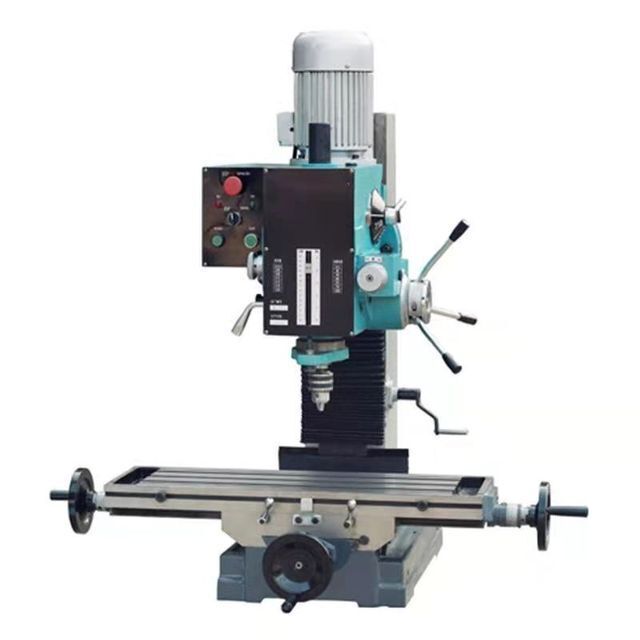

Hot Sale DM40 Variable Speed Bench Drilling Machine

Supplier: SJR Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Owen S
Price: $199.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

type:	Drilling & Milling Machine;	Brand Name:	FALCO;
Key Selling Points:	Competitive Price;	CNC or Not:	CNC;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Port:	FOB Shanghai;
Supply Ability:	20 Piece/Pieces per Month;	Application:	Metal Working Milling Machine;
Local Service Location:	Egypt,Canada,Algeria;	Weight (KG):	300;
Color:	Custom-made;	Machinery Test Report:	Provided;
Use:	Hobby Mill Drill;	Packaging Detail:	Wooden case, Iron or Wooden Pallet with waterproof film;
Showroom Location:	Egypt,Canada,Algeria;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ;	Model Number:	DM40;
Machine Type:	Veritcal;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Core Components:	Motor,Gearbox,PLC;	Dimension(LWH):	820x760x1150mm;
Marketing Type:	New Product 2020;	Processing:	Vertical Milling machine;
Max. Drilling Dia. (mm):	40;	Place of Origin:	Jiangsu China;
Warranty of core components:	1 Year;	Condition:	New;
Voltage:	380v;	Range of Spindle Speed(r.p.m):	75 - 1600 r.p.m;
Function:	Metal Milling;	Keyword:	Milling Machine Manual;
Usage:	General;	Certification:	ce iso;
Precision:	High Precision;	Warranty:	1 Year;
Product name:	Metal Milling Machine;	Video outgoing-inspection:	Provided;
Power (kW):	1.1;

Recommend Products

Products Description

This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used, it is safe and reliable the reliability of the machine could be ensured, Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.

Drilling and milling machine is a kind of small and medium-sized general metal cutting machine tool, which can mill both horizontally and vertically. It is suitable for drilling, reaming, reaming, boring and hole processing; for example, with disc milling machine, angle milling cutter, forming milling cutter and end milling cutter, it can mill plane, inclined plane, vertical plane and groove, etc. After installing the accessory end milling head, it can be used as multi-directional milling work.

The bed is installed on the base, and the main motor is installed in the lower abdomen of the bed. Through a pair of V-belt pulley, it is transmitted to the I-Axis to enter the gear box of the machine bed, and through six pairs of gears, it is transmitted to the main shaft. The front end of the main shaft is Morse's No.4 taper hole. The other end of the long tool bar is supported in the bearing hole of the hanger, and the tool bar bracket is installed on the dovetail guide rail of the sliding arm.

Product parameter

Item	Parameter
Max. Drilling dia (Steel/Iron)	31.5/40mm
Max.mill capacity(face/end)	80/32mm
Spindle taper	MT3/MT4/R8/ISO30
Worktable size	730×210mm
Worktable travelX/Y	500/230mm
Head tilt left right	90°
Spindle box swivel degree	360°
Spindle travel	130mm
Spindle nose to worktable	470mm
Spindle speeds(option)	6steps:60Hz 90~1970rmp 50Hz 75~1600rmp
Motor	1.1kw
N.W/G.W	270/300KG
Packing size(L×W×H,enclude foot)	820×760×1150mm
20'Container	30 sets
