2021 LXSHOW 1000W 2000W 3000W 4kw CNC Fiber Laser Cutter for steel aluminum Sheet Metal wuhan Raycus Fiber laser cutting machine

Supplier: Jinan Lingxiu Laser Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda pang
Price: $15000.00 / 1 - 4 sets
$10000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Weight (KG):	4000;	CNC or Not:	Yes;
X.Y axis location accuracy:	±0.01mm;	Payment Terms:	L/C,Western Union,T/T,MoneyGram;
Condition:	New;	Cutting Thickness:	depend on the power and your material;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Net weight:	3800KG;
Control System Brand:	Cypcut;	Laser Head Brand:	Raytools;
Cooling Mode:	WATER COOLING;	Key Selling Points:	High-accuracy;
Gross weight:	4000KG;	Servo Motor Brand:	Yaskawa;
Laser Type:	Fiber Laser;	Application Material:	Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal;
Control Software:	cypcut;	Applicable Industries:	Metal processing industry;
Warranty of core components:	3 years;	Machine size:	480026001860mm;
Model:	LX3015FT;	Warranty:	3 years;
Video outgoing-inspection:	Provided;	Guiderail Brand:	HIWIN;
X.Y axis repeat location accuracy:	±0.01mm;	Showroom Location:	South Korea;
Local Service Location:	South Korea;	Cutting Speed:	1--30m/min;
Port:	Qingdao port;	Marketing Type:	New Product 2020;
Supply Ability:	300 Set/Sets per Month;	Machinery Test Report:	Provided;
Laser wave length:	1064nm;	Application:	LASER CUTTING;
Optical Lens Brand:	II-VI;	Laser Source Brand:	RAYCUS;
Core Components:	fiber source;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Applicable Material:	Metal;	Graphic Format Supported:	AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP,IGES;
Brand Name:	LXSHOW;	Packaging Detail:	standard plywood case;
Certification:	ce,ISO,Sgs;	Cutting Area:	1500mm*3000mm;
Package Preview:	;	Machine Name:	cnc laser machine;
X.Y axis max moving speed:	30m/min;	Place of Origin:	Shandong China;

High Quality Fiber Laser Cutting Machine for Metal Cut

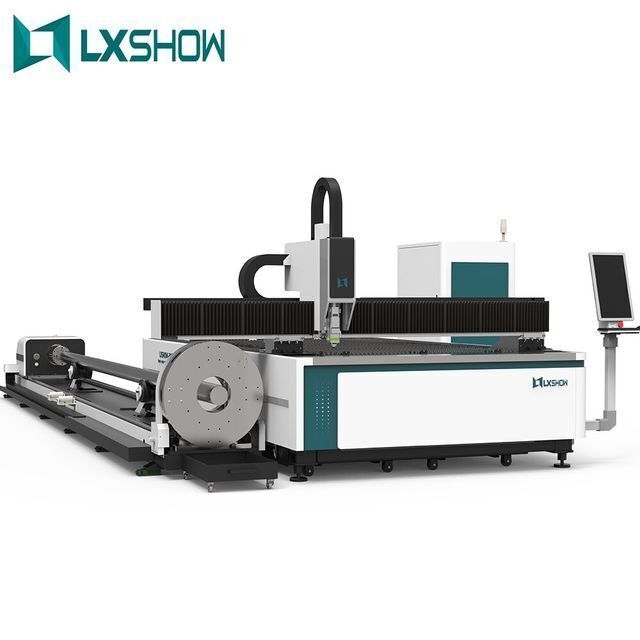

LX3015FT is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Our advantage

(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.

(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.

(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.

(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.

(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.

(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.

(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.

(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys

Model	LX3015Ft（LX3020FT LX4020Ft LX6020FT）
Working area	3000*1500mm
Miximum length of pipe(Options)	3000mm(or)6000mm
Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type	Fiber laser generator
Laser power(optional)	500~4000W
Transmission system	Double serve motor &gantry&rack&pinion
Maximum speed	±0.03mm/1000mm
Pipe cutting system(optional)	yes
Maximum speed	60m/min
Maximum accelerated speed	1.2G
Position accuracy	±0.03mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD,DXF(etc)
Power supply	380V/50Hz/60Hz

* We offer free samples to our customers

If you have any questions, please contact us for the first time, we will provide you with the most perfect solution

* About Jinan Lingxiu Laser Equipment Co., Ltd.

is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.

LX3015FT Fiber Laser Cutting Machine Configurations advantage

1. Moved crossbeam with imported high precision racks and linear guide rail, transmission stable, working with high precision.

2.Machine tool, crossbeam and worktable adopt integral welding structure, machine tool, crossbeam and worktable adopt integral welding structure, in accordance with the standard large machine, to stress annealing after precision finishing and then for vibration aging treatment, it can completely eliminate the welding stress and processing stress, keep high-strength, high precision, and also keep the 20 years of normal use don't deformation.
3. X, Y and Z axis use imported Japan servo motor, high precision, high speed, large torque and large inertia, performance is stable and durable, ensure the high speed operation of the whole machine.
4. Based on Windows operating system, use professional Cypcut numerical control system for fiber laser cutting machine, integrated with laser cutting control special function module which is powerful with a good man-machine interface and easy to operate.

Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.

Q: I don’t know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.

Q: If we need Lingxiu technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ？ A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
