Emission Standard: | Euro 2; | Max.lifting weight: | 50000kg; |
Fuel Type: | Diesel; | Place of Origin: | Shandong China; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Engine model: | WD615.96,375hp; |
Transmission Type: | Manual; | Max.Driving Speed: | 90km/h; |
Supply Ability: | 300 Set/Sets per Month wrecker towing truck; | Condition: | New; |
Dimensions (L x W x H) (mm): | 11210x2496x3820mm; | Port: | China main port; |
Packaging Detail: | nude packing or according to the customers; | Brand Name: | SINOTRUK HOWO; |
Wheel base: | 1800+4600+1350mm; |

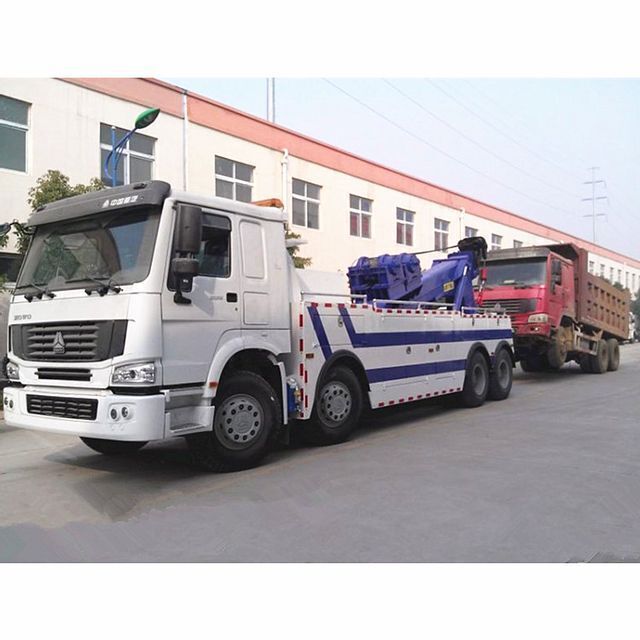

1.SINOTRUK HOWO 8x4 tow truck wrecker
2.Vehicle Model: ST5381TQZCZ
3.GVW(kg):20750,EURO II Emission standard
4.High quality and competitive price
5.Best after-sales
Chassis Model | ZZ1317N4667C | ||
Wheel type | 8x4 | ||
Driving type | Left hand driving | ||
Engine Model | WD615.96 | ||
Engine Power(kw/HP) | 276 | ||
Outline Dimension(L×W×H) mm | 11210×2496×3820 | ||
Wheel Base( mm) | 1800+4600+1350 | ||
Track(front/rear)(mm) | 2022/1830 | ||
No. of Tire | 12 | ||
Tire Specification | 12.00-20 | ||
Approach Angle/Departure Angle | 16°/16° | ||
Front Overhang/Rear Overhang (mm) | 1500/1960 | ||
Free loading | Reorganize and outfit quality Kg | 27870 | |
Boom | Max. lifting mass (Kg) | 50000 | |
Extension Stroke (mm) | 6000 | ||
Max. Lifting Height (mm) | 12500 | ||
Max. Inclination Angle | 60° | ||
Rotating Angle | 360° | ||
Range of Inclination Angle | 0~60° | ||
Underlift | Original Lifting Mass (Kg) | 25000 | |
Rating Lifting Mass (Kg) | 12500 | ||
Rating Lifting Mass Fully Extended (Kg) | 7800 | ||
Max. Effective Length (mm) | 3390 | ||
Extension Stroke (mm) | 1850 | ||
Range of Inclination Angle | -9°~93° | ||
Folding Angle | 102° | ||
Outriggers | Longitudinal Span between Front Outrigger and Rear Outrigger (mm) | 7765 | |
Transverse Span of Front Outriggers (mm) | 6300 | ||
Transverse Span of Rear Outriggers | 4320 | ||
Rating Towing Mass (Kg) | 55000 | ||
Rating Pulling Power of Winch (KN) | 2×250 | ||
Length of Cable Wire (m) | 50 |
2. Specification of Lifting
Range(m) | Towing Mass(Kg) | |
3.5 | 12500 |
|
4 | 11775 |
|
4.5 | 10234 |
|
5 | 8750 |
|
5.35 | 7800 |
|
Attention:
1.Range means the distance between the point of lifting and the center of rear axis
2. Lifting mass means the mass on the lifting point
3. The specifications are measured with outriggers retracted.
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Delivery Details: 15-35 days after receiving 30% deposit
Shiping Pictures:
About Chinatruck.cc
1,We Will Check Again Before Sending.
2,Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
To see more, kindly click our spare parts website:
FAQ
Q:I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A: It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q:I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
