Butterfly valve parts body disc shaft seat actuator

Supplier: Tianjin Tanggu Water-Seal Valve Co., Ltd.
Region: Tianjin, China
Contact: Ms Cathy Li
Price: $7.50 / >=5000 pieces
Min. Order: 5000 pieces

Click here to contact

Product details

Medium:	Water Oil Gas;	Paint:	epoxy coating;
Port:	Tianjin, China;	Pressure:	PN10/16;
Packaging Detail:	poly bag and wooden case;	Connection:	Wafer;
Actuator:	lever/gearbox;	Brand Name:	TWS;
Supply Ability:	20000 Piece/Pieces per Month;	Package Preview:	;
valve disc:	stainless steel;	valve shaft:	stainless steel;
Name:	valve parts;	valve seat:	EPDM/NBR;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Body material:	CI/DI/WCB;

Product description

Butterfly valve parts body disc shaft seat actuator

=================================================

Description of wafer and lug type butterfly valve:

Samll size, light weight and easy maintenance, the above series of valves and be used as a device to cut-off or regulate the flow in various medium pipes.

Trough selecting different materials of disc and seal seat, as well as the pinless connection between disc and stem, the valve can be applied to worse conditionss, such as desulphurization vacuum, sea water desalinization.

Lug butterfly valve allows downstream pipelined and equipemnts online repair, and it can be installed on pipe ends as exhaust valve.

Materials for each parts:

Parts Name	Description
Valve type	Wafer type butterfly valve
Connection flange	EN1092 PN10/PN16 ANSI 150LB
Face to Face	EN558-1 Series 20
Body material	Ductile Iron
Disc material	ASTM A351 CF8M
Stem material	SS420
Seat material	EPDM
Actuator	Worm Gear

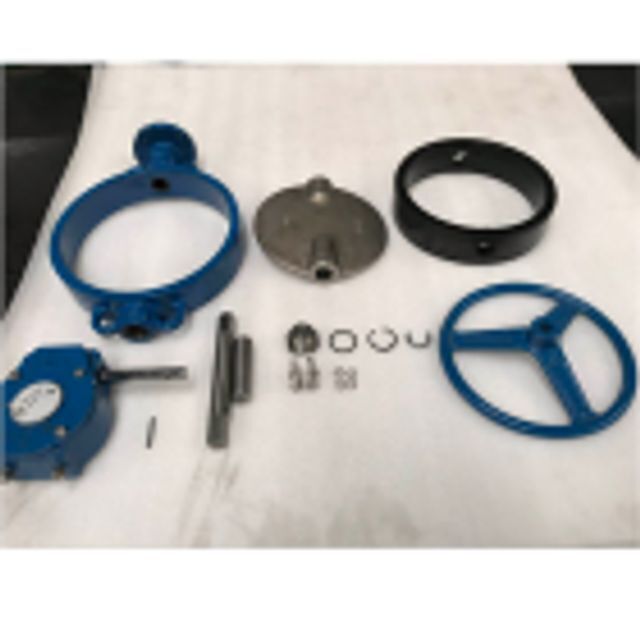

Exploded view of wafer/lug butterfly valve:

Technical drawings of butterfly valve:

Packaging & Shipping

Genearl packing of Butterfly Valve/Gate Valve/Check Valve;

Standard Export Package: plywood wooden box.
Box Size: 1.1*1.1.0.6m, 1.1*1.1*0.7m, 1.1*1.1*0.9m, or other customerized size.
Packing: 1 set valve in a poly bag, then some pieces in a wooden box.
