BSP Thread Forged Brass Ball Valve with Handle

Product details
Port:Tianjin, China;Power:Manual;
Supply Ability:20000 Piece/Pieces per Month Brass ball valve;Working Temperature:from -20 to 150;
Delivery Detail:Shipped in 7 days after payment;Pressure:Low Pressure;
Size:DN15 To100;Place of Origin:Tianjin China;
Port Size:DN15-DN100;Brand Name:TWS;
Material:Brass;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Sealing:PTFE;Application:Water, Oil, Gas;
Temperature of Media:Medium Temperature;Standard or Nonstandard:Standard;
Connection:BSP thread;Nominal Pressure:1.6Mpa;
Medium:cool/hot water, gas, oil etc.;Media:Water;
Screw Standard:BSp;Model Number:Q11F-16T;
Structure:Ball;Certificate:ISO9001, CE, WRAS;
Body material:Brass;Packaging Detail:Packing of BSP Thread Forged Brass Ball Valve with Handle 1.One piece wafer butterfly valve in one poly bag; 2.Some pieces butterfly valves in one wooden carton; Ways of shipping: by air, by sea, by express.;
Product name:Brass ball valve;

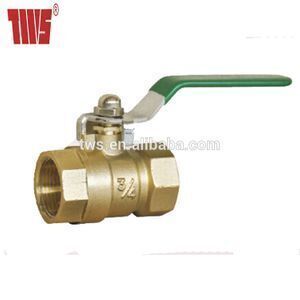

BSP Thread Forged Brass Ball Valve with Handle

Product Description
  • Material of body : Brass
  • Pressure: PN16
  • Acutator: handle lever

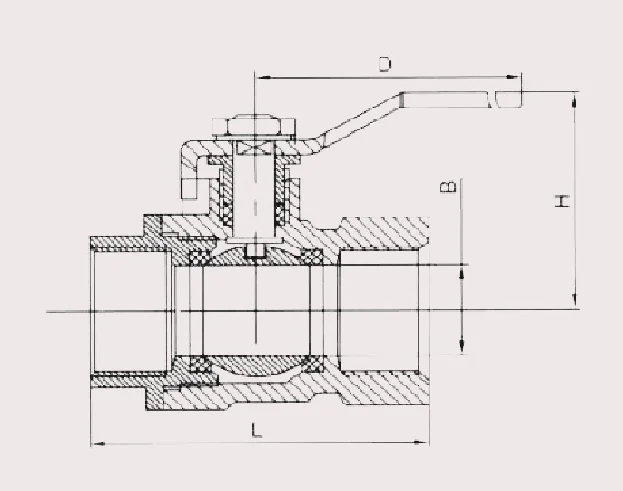

  • Size of different parts of forged brass ball valve
    CODEDNSIZELBHDWEIGHT(KG)
    1301151/2"56.51445930.14
    1302203/4"591548930.20
    1303251"69.520541100.32
    1304321 1/4"7525621100.56
    1305401 1/2"8130681360.70
    1306502"9137781461.06
Product Photos

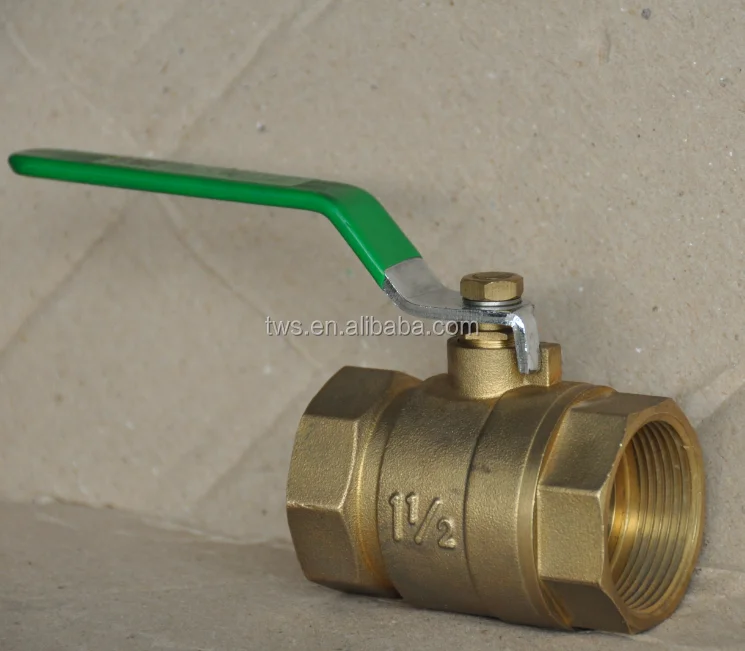

 Photos of brass ball valve



Technical Data

Followed are technical data of Brass Ball Valve

Packaging & Shipping

Packing of BSP Thread Forged Brass Ball Valve with Handle
1.One piece wafer butterfly valve in one poly bag;
2.Some pieces butterfly valves in one wooden carton;

Ways of shipping: by air, by sea, by express.



Company Information



  • Tianjin Tanggu Water-Seal Valve Co., Ltd. was established in 1997 and specialized in manufacturer valves from that time.

  • Our main products include center line wafer butterfly valves, lug butterfly valve, flanged butterfly valves, u type butterfly valve, grooved end butterfly valve, eccentric butterfly valve, metal butterfly valves, check valves, resilient seat gate valves, backflow preventer, y-strainer, balancing valve, and related series products.

  • Our annual production output is more than 10,000 metric tons. Our company is very near from TIANJIN port, and our products have covered domestic big and medium cities, and have been exported to South America, Africa, Europe and Southeast Asia.
  • Our products are widely used in water supply and drainage, electric power, petrol chemical industry, metallurgy and other fields.





 Clients from worldwide in TWS factory



Valve performance test station in TWS factory

This test station is 500 square meters, can detect valve technical parameters from size DN15 to DN300.

Main measurement parameters: valve flow coefficient, flow resistance coefficient. This technical indicator is an important parameter to measure the valve flow capacity, but also the main basis for the selection of valve product application; the actual test process for the valve flow and pressure, pressure relationship.



Certifications

Certificates for brass ball valve







Our Services

1.We promise that we will ship the goods on time;

2. We can customize your company logo on valve boy;

3.We can do different colors according to your requirements;

4.We can produce different standards valves to different markts.

5.We provide 12 months warranty time for our valves.





FAQ

Q1. What's the delivery time genearally?

       In general, delivery time is 15-25 days

Q2. What's your payment terms?

       We can accept T/T, L/C, D/P, D/A, Western Union, MoneyGram, etc.



Q3. What's the nearest shipping port?

       The nearest port is Tianjin, but we also can export from Beijing, Shanghai, Ningbo or Guangzhou.



Q4. What trade terms you can accept?

       EXW, FOB, CIF, etc.



Q5. How long is the time of warranty time?

       12 months from shipping day.
