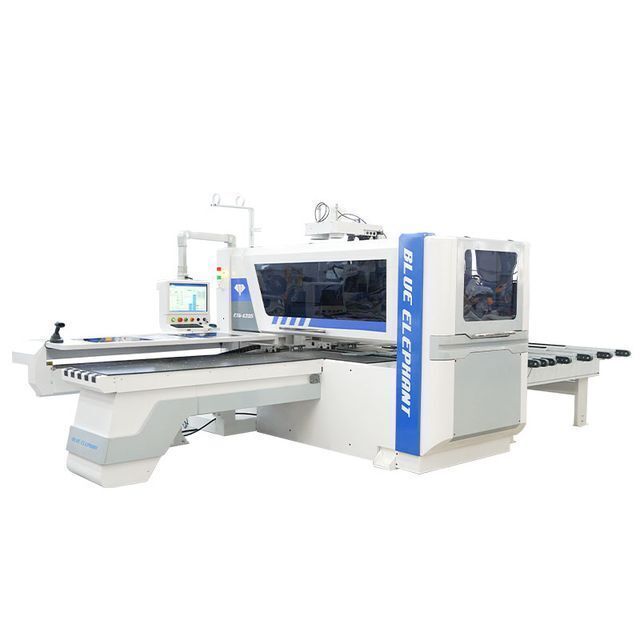

Wood working multi boring 6 sides cnc drilling machine

Supplier: Jinan Blue Elephant CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Jack Zhang
Price: $35200.00 / 1 - 1 sets
$33785.00 / 2 - 4 sets
$28562.00 / 5 - 19 sets
$12750.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Voltage:	according to customer local voltage;	boring head:	12pcs vertical drilling+8 pcs horizontal drilling, 9pcs vertical drill;
Core Components:	Motor;	After-sales Service Provided:	Field installation, commissioning and training;
Supply Ability:	30 Set/Sets per Month;	Machinery Test Report:	Provided;
Certification:	CE;	CNC or Not:	CNC;
Warranty of core components:	2 years;	Dimension(LWH):	485027031850mm;
workpiece transport:	air-floating countertop;	spindle:	3.5kw*2;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	workpiece hold:	clamp;
Reducer:	Shimpo;	Machine Type:	6 Surfaces;
Condition:	New;	Port:	qingdao port;
Height of workpiece:	12-50mm;	Weight (KG):	3800;
Local Service Location:	Canada,United Kingdom,United States,Italy,France,Germany,Philippines,Brazil,Saudi Arabia,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,South Korea,Chile,UAE,Colombia,Sri Lanka,Romania,South Africa;	traveling speed:	120/80/30m/min;
Place of Origin:	Shandong China;	Brand Name:	BLUE ELEPHANT;
Max.Working Width(mm):	1200;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company,Modular furniturecabinet factory;
Showroom Location:	Canada,United Kingdom,United States,Italy,France,Germany,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Mexico,Russia,Spain,Thailand,Morocco,Kenya,South Korea,Chile,UAE,Colombia,Sri Lanka,Romania,South Africa;	Video outgoing-inspection:	Provided;
Motor Type:	yaskawa;	Packaging Detail:	1. Outside package: Standard marine export plywood case. 2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film. Improved package, much more strong and environmental protection.;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T;	Key Selling Points:	Easy to Operate;
Width of workpiece:	50-1220mm;	overall dimension:	485027031850mm;
Length of workpiece:	250-2800mm;	Marketing Type:	New Product 2020;
Warranty:	1 Year;

Related Video

Product Features

1. This CNC drilling machine has an original skin breaking function, which can make the punching smoother and maximize the yield rate of the plate.

2. The use of dual drives greatly improves the speed of slotting and punching, and correspondingly improves production efficiency.

3. The use of high-end air floating table, so that the processing accuracy is more accurate.

4. Automatically optimize the direction of the board to achieve front and back discharge.

Technical Parameters

overall dimension	485027031850mm
weight	3800kg
length of workpiece	250-2800mm
width of workpiece	50-1220mm
height of workpiece	12-50mm
traveling speed	120/80/30m/min
drilling unit	vertical drilling and horizontal drilling
spindle	3.5kw*2
workpiece transport	air-floating countertop
workpiece hold	air flotation pressure plate
function	finish six-side different types hole drilling and slotting on wood

Applied Industries

1. Wood furniture industry Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on. 2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard，Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making. 3. Die industry A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
