4x4 4x8 5x10 feet 3 4 axis 5 axis atc cnc wood router machine woodworking milling machine plywood aluminum foam stone eps

Product details
Sales unit:single productInverter:11kw Fuling inverter
brand:blue elephantWork area:1500x3000x400mm
Main selling point:multifunctionalSpindle:Rotation +-90 degrees, 9kw HQD ATC air-cooled spindle
Core Components Warranty:1 yearWarranty:2 years
software:Ucancam/ArtCam/TYPE3/UGMotors and drives:Japan YASKAW 850w servo system and 1000w servo driver
Stroke (X-axis) (mm):1500 mmControl System:Taiwan SYNTEC 4-axis with handle control system
Dimensions (L*W*H):3700*2140*1950mmVacuum pump:7.5kw (optional)
Control system brand:Syntec, RichAutoHealth status:new
Spindle speed range (rpm):1 - 24000 rpmVoltage:AC380V/50HZ or optional
Number of axes:1Video external inspection:if
Spindle motor power (kW):9kWPackaging Details:1. Outer packing: Standard sea export plywood box 2. Inner packing: stretch film and moisture-proof plastic film. We can make packaging according to your requirements.
Positioning accuracy (mm):0.05mmGross weight per piece:68.000 kg
spread:Helical rack, PMI linear guide, Taiwan TBI ball screwplace of origin; place of origin:Shandong China
Type of machine:CNC routerSingle package size:150X300X20 cm
Core components:Bearings, Motors, Pumps, Gears, PLCs, Pressure Vessels, Engines, GearboxesTool magazine:8 tool magazine linear automatic tool changer
Repeatability (X/Y/Z) (mm):0.05mmTable size (mm):1530*3000
Travel (Y-axis) (mm):3000 mmWeight (kg):1700
Number of spindles:air traffic controlMechanical test report:if
CNC or not:CNCApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
dust collector:3kw (optional)
Product Description

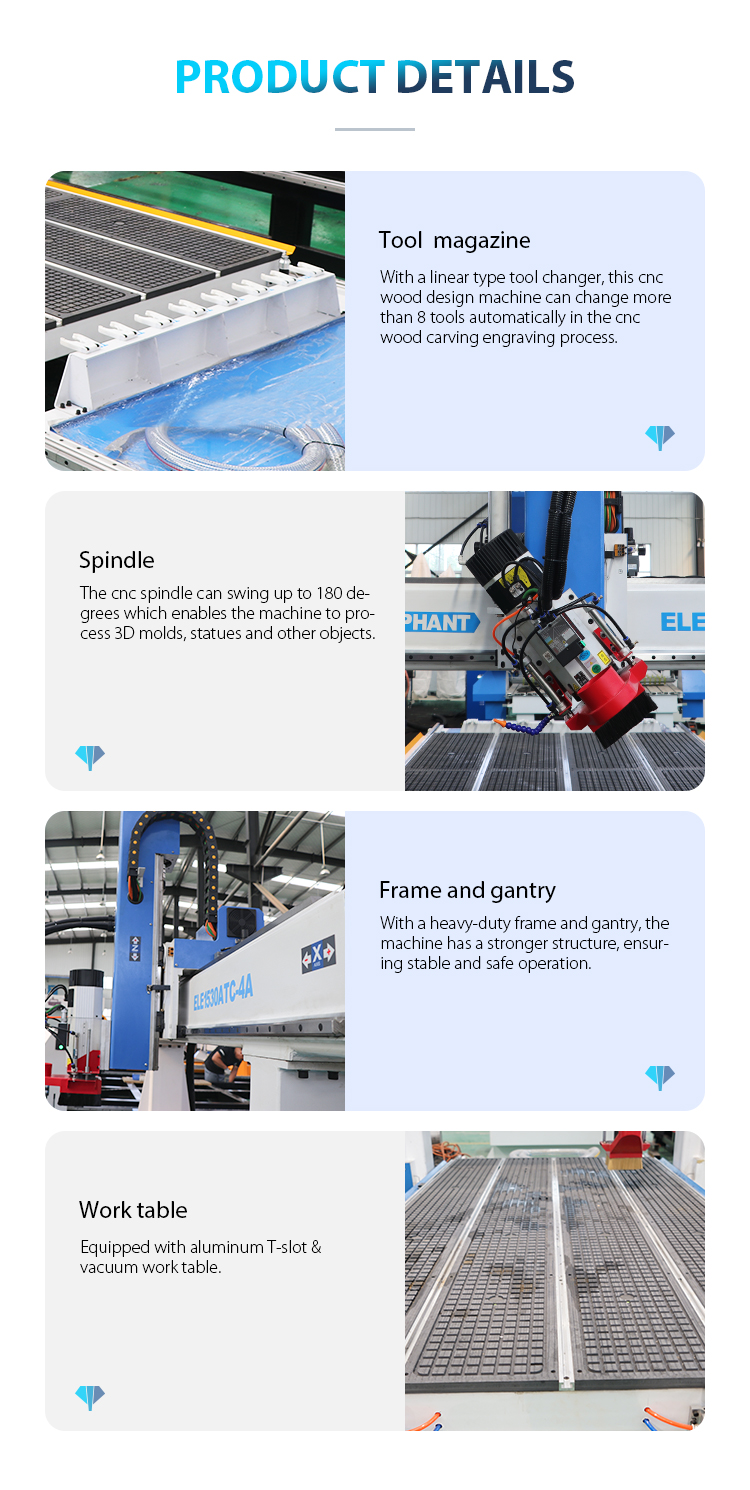

1. With a linear tool changer, this CNC wood carving design machine can automatically replace more than 8 kinds of tools in the process of CNC wood carving.
2. The CNC spindle can swing up to 180 degrees, enabling the machine to process 3D molds, statues and other objects.
3. The heavy-duty frame and gantry are used, the structure is stronger, and the operation is stable and safe.
4. All specifications can be customized according to your own actual processing needs.
technical parameter
X,Y axis travel
1500x3000mm, optional: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc.
Z-axis travel
200mm, optional: 300mm, 400mm, 500mm, 600mm, etc.
Control System
Weihong PM95A-3L
Spindle
9kw ATC air-cooled spindle, ISO30, ER32
Drilling Bank
optional
Tool magazine
Linear Automatic Tool Changer Option: Rotary Automatic Tool Changer
Tool holder with collet
ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control System
Taiwan SYNTEC /LNC controller
Drive System
1kw Japan Yaskawa AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec Servo
reducer
Japan SHIMPO reducer
machine structure
Hardened heavy duty fuselage
worksheet
Aluminum T-slot vacuum table
positioning cylinder
Optional: 5pcs(X2,Y3)
Linear Guides
Taiwan linear guide dustproof
spread
X, Y axis: Taiwan/Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system
1.5L automatic lubrication system
Tool calibration
Automatic tool sensor calibration
Driving speed
80m/min
Speed ​​of work
0-25m/min
Repositioning Accuracy
±0.03mm
working pressure
0.6MPa
Operating Voltage
220V 1PH/3PH 50HZ/60HZ
380V three-phase 50HZ/ 60HZ
