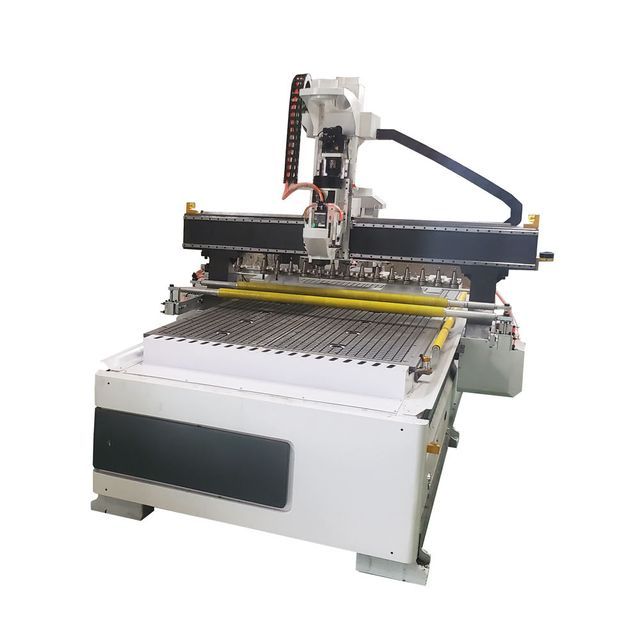

China CNC milling machine woodworking 1325 atc CNC milling machine
-
Supplier: Jinan Dosing Machinery Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Ms Anne Zhao -
Price: $9000.00 /set -
Min. Order: 1 set
| Type of machine: | CNC milling machine | Spindle speed range (rpm): | 1 - 24000 rpm |
| port: | Qingdao | Applicable industries: | household, advertising agency, furniture |
| Travel (X-axis) (mm): | 1300 mm | Number of spindles: | single |
| Origin: | Shandong Province, China | Spindle motor power (kW): | 9 kW |
| Drive System: | Leisai 1.5kw servo motor | Machine color: | customizable |
| Supply capacity: | 100 sets of Chinese CNC milling machine Woodworking 1325 CNC milling machine per quarter | operating system: | Taiwan LNC control system |
| Travel (Y-axis) (mm): | 2500 mm | Warranty: | 3 years |
| application: | wood acrylic pvc engraving and cutting | command language: | G code |
| Voltage: | AC 380V/50HZ | Repeatability (X/Y/Z) (mm): | 0.01 mm |
| Speed of work: | 50000m/min | Number of axes: | 3 |
| Weight (kg): | 1200 | Name: | China CNC milling machine woodworking 1325 atc CNC milling machine |
| brand: | dose | Dimensions (L*W*H): | 3200*2200*1750 mm |
| Positioning accuracy (mm): | 0.01 mm | Whether CNC: | CNC system |
| Table size (mm): | 1300×2500 | Spindle power: | 9kw automatic tool change spindle |
| Main selling points: | easy to operate | Health status: | new |
| Power (kW): | 10 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Packaging Details: | Wooden box for China CNC milling machine woodworking 1325 CNC milling machine | Control system brand: | NC Studio, Siemens, New Generation, Mach3, DSP, Reiz Auto |
| guide: | Taiwan silver square guide rail | Key words: | CNC milling machine |
3 Year Warranty! China CNC Milling Machine Woodworking 1325 CNC Milling Machine
introduce
This machine is mainly used in the furniture industry, such as wooden doors, kitchen cabinets, etc. It can also be equipped with a loading and unloading system to improve work efficiency.
machine advantage
1. The bed is welded by 6-10mm steel pipe, processed by lathe and end face machining to ensure the stability of processing.
2. The machine is well-made, using high-precision guide rails, ball screws, and Japanese Shimpoo reducer transmission.
3. Equipped with drill bit and alphacam software, complete all production steps at one time.
4. Using Leisai 1.5kw servo motor, the working speed is higher.
| No. | Function | scope | |
| 1 | boring head | options | |
| 2 | Work area | 1300*2500*200 mm | |
| 3 | spread | XY rack and pinion, Z ball screw | |
| 4 | structure | Table Structure | Movable gantry, suction cup |
| 5 | Spindle | Spindle power | China JST 9kw ATC air cooled spindle |
| 6 | engine | Leisai 1.5kw servo motor | |
| 7 | Operating Voltage | AC 380V/50Hz | |
| 8 | Control System | Taiwan LNC system |
1. Furniture: wooden doors, cabinets, panels, office and wooden furniture, tables and chairs, doors and windows.
2. Wooden products: speakers, game cabinets, computer desks, sewing machine desks, instruments and meters.
3. Decoration industry: engraving and milling of acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metals.
-
