1015 Lead CNC Full Kit Lead CNC Router Machine Full Kit engraving and engraving machine 1000mmx1500mm

Supplier: YUYONG INDUSTRY(SHENZHEN) LIMITED
Region: Guangdong, China
Contact: Mr Marvin Cao
Price: $1389.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	silver or black	After Warranty Service:	Online support
Weight (kg):	52	strength:	24V 350W output
Warranty:	unavailable	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other	Marketing Type:	New Products 2020
brand:	Yuyong Industry, Yuyong Industry	place of origin; place of origin:	Guangdong, China
Certification:	Chief Executive	Core Components Warranty:	Not available
Type of machine:	CNC router	Positioning accuracy (mm):	0.05mm
Stroke (X-axis) (mm):	800 mm	Table size (mm):	1000x1500
CNC or not:	CNC	Local service location:	not any
Repeatability (X/Y/Z) (mm):	0.05mm	Spindle motor power (kW):	1.5/2.2
Core components:	Bearings, motors, engines	Drive System:	TR8x8(P2) ACME lead screw
Spindle speed range (rpm):	8000 - 24000 rpm	Control system brand:	Mach 3
Number of spindles:	single	Health status:	new
Video external inspection:	Not available	Z-axis travel:	about 100 mm
Main selling point:	high accuracy	Voltage:	110V/220V
Travel (Y-axis) (mm):	1270 mm	Mechanical test report:	Not available
Showroom location:	not any	motor:	Stepper Motor - High Torque 2.45Nm
Dimensions (LWH):	1000mm x 1500mm

Product Description

1515Lead CNC Full Kit Lead CNC Router Machine Full kit engraving and engraving machine 1500mmx1500mm

The Lead CNC machine was originally designed by Mark Carew, which is licensed under CC – Attribution – CC BY. It is a super powerful, accurate and easy to assemble CNC machine.

Based on C-beams, V-grooves, Xtreme solid V-wheels and TR8x8(P2) lead screws, it is strong, accurate and reliable.
It is designed to precisely cut foam, wood, plastic and aluminum to an accuracy of 0.05-0.10mm or better.
Functional engineered parts, toys, signs, or anything imaginable, can be manufactured on Lead CNC machines.
The kit has some slight differences from the design posted by Mark Carew. Most notable is the use of black corner connectors instead of cast brackets for added rigidity.

The Cable Chain Bundle contains all the hardware to install the Cable Chain on WorkBee, Ox CNC or other CNC machines to assist with cable management.

Mach3 (NVUM) and GRBL USB Controller Bundle are perfect for engraving machines.

Materials suitable for cutting/milling/engraving:
Aluminum / Hardwood / Softwood / Oak / Plexiglass / Delrin / HDPE / Foam

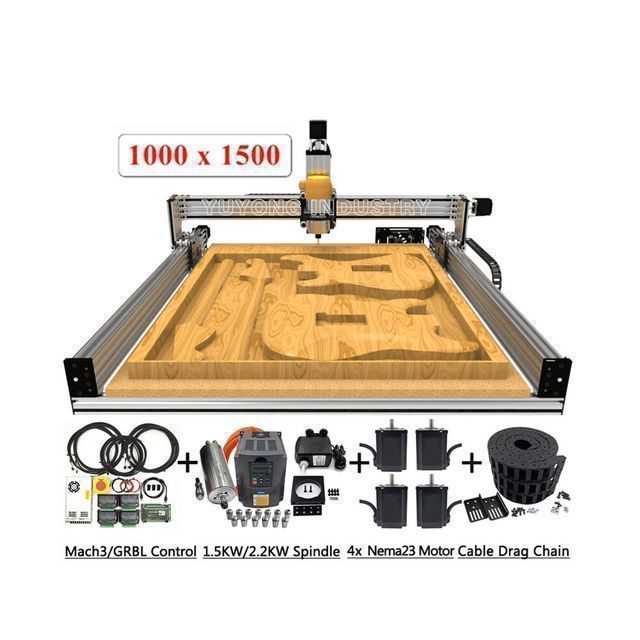

This complete kit includes:
* Lead CNC Machine Kit
* 4 x Nema23 (1.26Nm) stepper motors for GRBL option
* 4 x Nema23 (2.45Nm) stepper motors for Mach3 option
* Cable drag chain bundle
* Wiring cable kit
* GRBL or Mach 3 Controller Bundle
* 1.5kW/2.2kW air-cooled or water-cooled spindle group
* All extrusions have M5 threads where necessary
* PDF assembly manual available via email

Specifications of the Nema 23 stepper motor:
* NEMA 23
*Shaft size: 1/4"
* Step angle: 1.8
* Holding torque: 1.26 Nm / 2.45Nm
* Rated voltage: 3.36 V
* Rated current: 2.8 A / 3A

1.5 kW air-cooled/water-cooled spindle specifications:
* 1.5kW air-cooled spindle net weight: 2.6kg
* 1.5kW air-cooled spindle size: φ65 x 205 mm
* 1.5kW water-cooled spindle net weight: 4.2kg
* 1.5kW water-cooled spindle size: φ80 x 205 mm
* Power: 1.5 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 8000-24000 rpm
* air/water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Collet: ER11 (15 pieces, size from 1mm to 7mm)
Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm

2.2 kW water-cooled spindle specifications:
* Net weight: 5.3kg
* Spindle size: φ 80 x 215 mm
* Power: 2.2 kW
* Voltage: 220 ~250 V or 110 V
* Frequency: 400 Hz
* Speed: 0-24000 rpm
* water cooling
* Runout: less than 0.005 mm
* Grease lubrication
* VFD inverter 1.5 kW 220 V or 110 V
* Collet: ER20 (28pcs, size from 1 mm to 13 mm)

Size: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/ 9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/12.5mm/12.7mm/13mm

caution:
*This kit does not include MDF table and drill.
