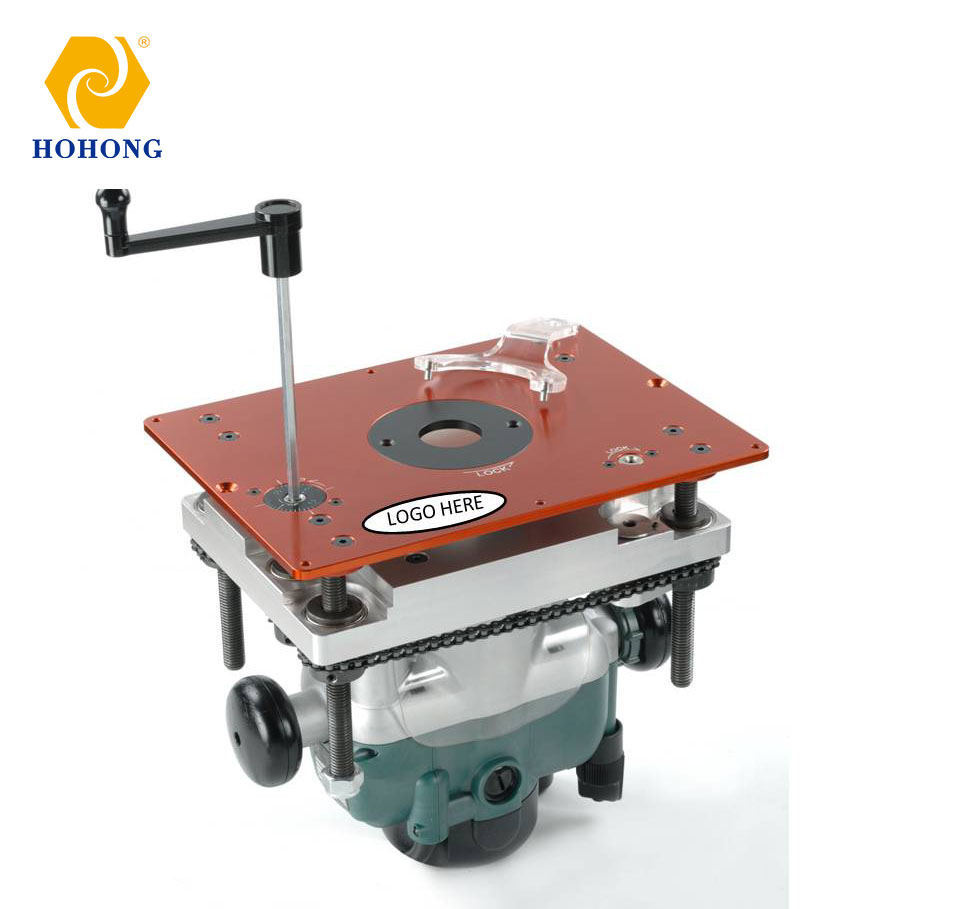

router lift woodworking router table european style

  • Supplier: HOHONG Hardware CO., LTD
  • Region: Taiwan, China
  • Contact: Ms Sophia Lin
  • Price: $1.00 / >=20 sets
  • Min. Order: 20 sets
Product details
Dimensions (L*W*H):34.5*27.5*28cmplace of origin; place of origin:Taiwan, China
CNC or not:CNCPackaging Details:carton
Weight (kg):7.85Main selling point:easy to operate
After-sales service provided:Online supportpayment terms:wire transfer
product name:router lift woodworking router tableSupply capacity:1000 boxes per month
color:client needsApplicable industries:carpentry
Health status:newWarranty:1 year
port:Taiwan FOB
Product Description

* Quick and accurate height adjustment from above the table
* Scale for precise setting
* The required aperture size is approximately 305 x 229 x 6mm
* 90mm height adjustment
* Provide detailed installation instructions
* Install height lock for added security


Taiwan & China & US Patents



Raising and lowering the router in a table setup can be a chore if you have to reach under the table every time you need a replacement
depth of cut. Being able to do this from above the table makes life a lot easier, allowing for quick and accurate height adjustments. Hohong router lifts are the logical solution for fast and accurate production on many router table installations. This compact design was developed by us to fit directly into our own router table, and most table setups can accommodate inserts of this size (305 x 229 x 6mm). The unit can be made flush with the table top flat
By providing leveling screws at each corner of the bench insert. Height adjustment by inserting the handle
By setting the measuring dial in the machine table. The knife is raised or lowered by 2 mm each time the handle is turned, and
The integral scale is graded in increments, allowing for very precise adjustments. router elevator is
Sturdy threaded rods are supported on all four corners, meaning the router remains very stable in use. A locking mechanism is installed so that the height of the router can be securely locked in any desired position. The raising and lowering mechanism is chain driven, an infinite loop connecting the sprockets, which is simple and positive to operate. Connect the router to the router directly or use the included adapter plate to lift the router. Note that machine screws are required to attach the router to this product, the thread size will vary depending on the router type.
