plastic pet eva granules pulverize machine

Supplier: Zhangjiagang Sevenstars Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Mabo He
Price: $7500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	2 Sets per Month;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Brand Name:	BDX;	Video outgoing-inspection:	Provided;
Weight (KG):	1000 KG;	Packaging Detail:	SEAWORTHY PACKING;
Applicable Industries:	Building Material Shops,Manufacturing Plant;	Showroom Location:	Egypt,Philippines,India,Russia;
Warranty of core components:	1 Year;	Suitable size:	8-12mm;
Output Size (mesh):	20 - 60 mesh;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Material of Grinding Tool:	Fixed Knifes;	Key Selling Points:	Competitive Price;
Port:	shanghai;	Range of Spindle Speed(r.p.m):	640 - 1440 r.p.m;
Power (kW):	45;	Warranty:	1 Year;
Package Preview:	;	Color:	Customer's Requirement;
Local Service Location:	Egypt,Philippines,India,Russia,Malaysia;	Condition:	New;
Application:	Plastics Processing;	Control system:	PLC(imported Brand);
Certification:	ISO CE;	Voltage:	380V OR CUSTOMIZED;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;	Dimension(LWH):	TO BE DETERMINE;
Grinding size:	10~120mesh(0.125-1.7mm);	Marketing Type:	New Product 2020;
Feeding Size (mm):	1 - 12 mm;	Machinery Test Report:	Provided;
Type:	Pulverizer;	Output (kg/h):	100 - 1000 kg/h;
Material:	pp/pe/pvc/eva;	Product Type:	Detergent Powder;
Place of Origin:	Zhangjiagang,Jiangsu province;	Core Components:	Bearing,Pump,Gear,Motor,Gearbox,PLC,Engine;

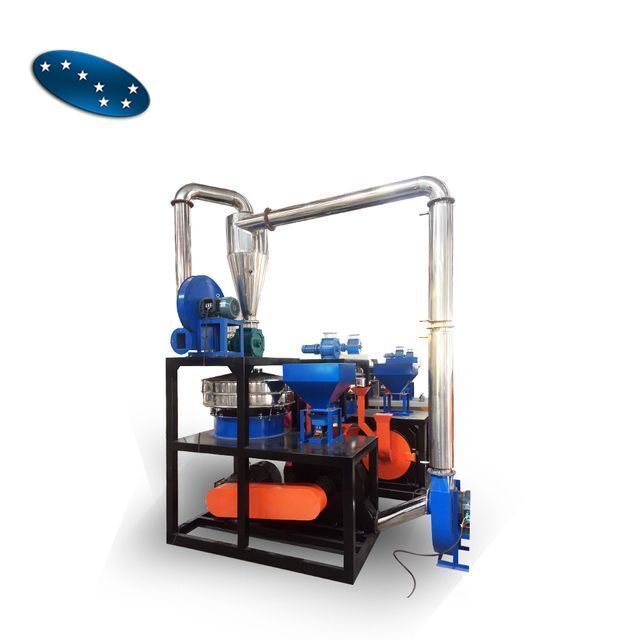

PLastic Pulverize Machine

Our adopt material is PP PE PVC EVA PET and other plastics that the size not surpass than 12mm.
The final size of powder is 30-60 mesh, also it is adjustable and can be customized, we also can give you suggest mesh according to your material and final application.

Products Description

Product Overview

Our pulverizer is mainly used in plastic grinding process, and can be widely used in various soft and hard plastic materials, such as pvc, pp, pe, eva, etc.

Our mill equipment is simple in structure and easy to operate and maintain.

It is equipped with an independent control cabinet and water cooling system to effectively ensure the safe operation of the equipment.

MATERIAL APPLICATION

APPLICATION MATERIAL

This pulverizer is high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.

For example PE、PVC、 PP 、ABS、 PA、EVA、PET、 PS、PPS、EPS、 PC、Foam、 Cow leather and so on.

Disc type

Type 1:Disc type for PE PET material
Disc type grinder can better process the raw materials, the powder obtained is more uniform and the particle size is finer, we use
the disc type pulverizer to process those materials that are easy to grind.
Type 2:Disc type for PP EVA, soft PVC When milling the material ,the temperature of cavity is very high, for PP,EVA and soft PVC, it is easy to melt when progress, so we increase the centrifugal fan to reduce the residence time of the material in the cavity.

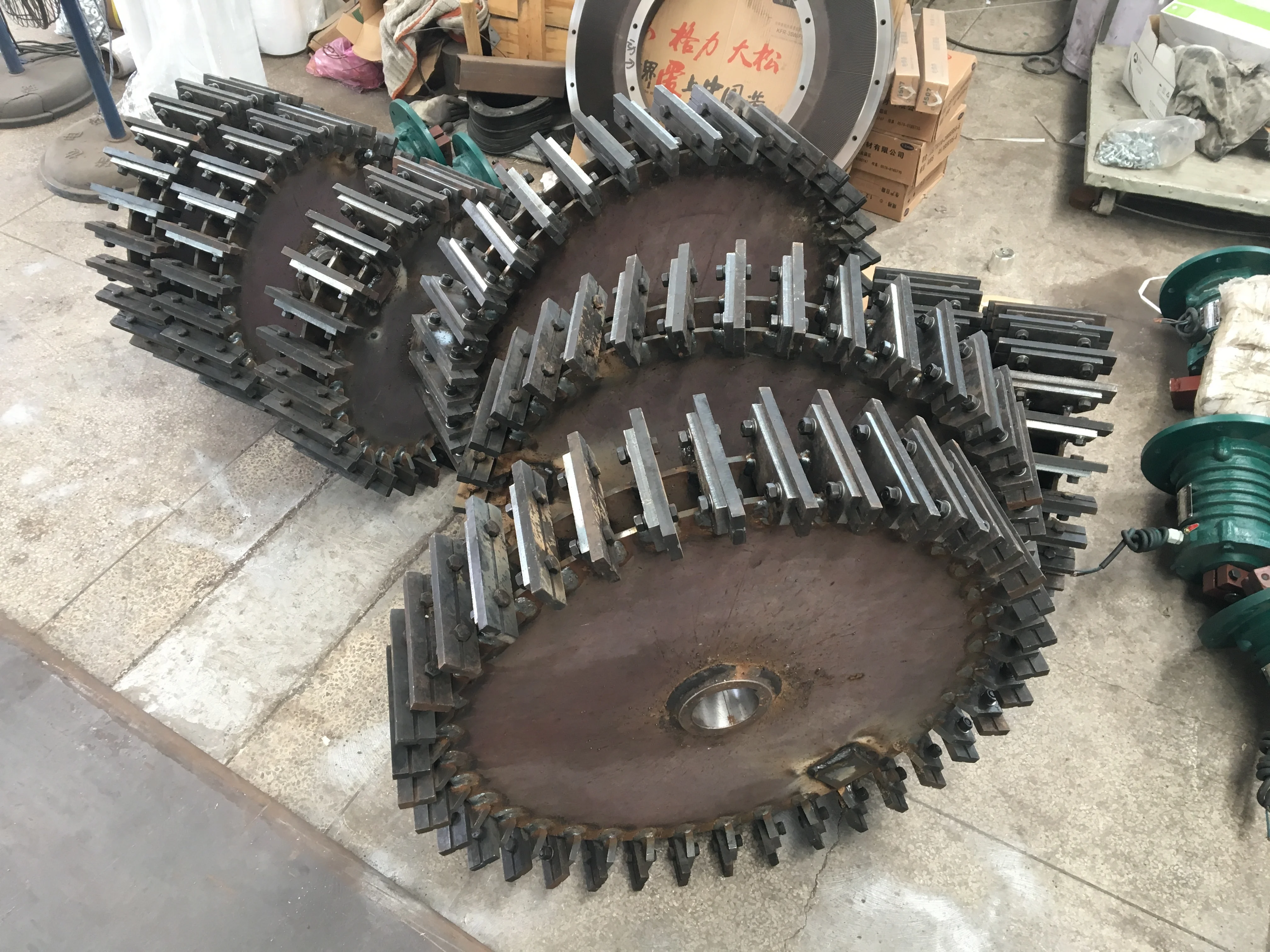

Rotary type for rigid PVC

Rotary blade can progress rigid better, also because most pvc material contains CaCo3,it will damage the blade, the price of disc blade is more expensive.

Technical Parameters

Model	Grind diameter	Motor power	Blade material	Output capacity
SMF-400	400mm	37kw	SKD-11/D2	100-150kg/h
SMF-500	500mm	55kw	SKD-11/D2	200-250kg/h
SMF-600	600mm	75kw	SKD-11/D2	300-350kg/h
SMF-800	800mm	90kw	SKD-11/D2	400-450kg/h

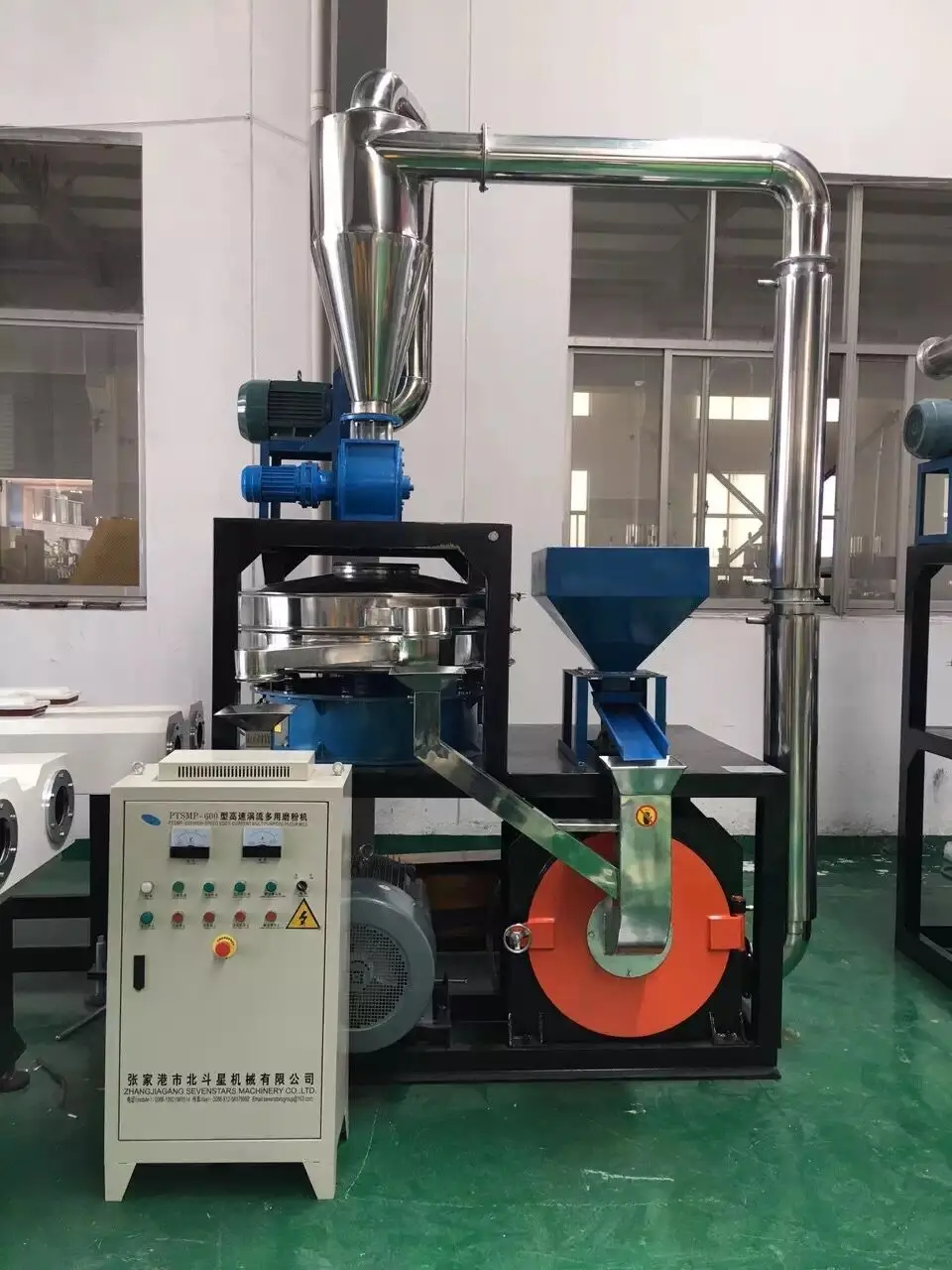

Machine parts

Main Parts

To pulverize the material,The final size of finished products depend on the gap space between rotary milling blade and stable milling blade.
Main shaft bearing adopts import trademark: NSK. Oil seal adopts import trademark: HSH. Cooling and lubrication system are matched in the place of shaft to ensure the temperature of shaft in normal working ≤85℃.The main shaft has the treatment of dynamic balancing to make sure that main frame runs smoothly and less vibrating.

The contact of material is stainless steel. the rest are carbon steel
To control the speed of feeding by adjusting the valve of discharge in the base of hopper port and shaking frequency of shaking feeder.

Put the filtrate material into the grinding room again, 30-80 mesh.

High pressure blower in the material to cyclone separator, and then fall into Rotundity vibrating sieve.

Test the temperature by the main machine，if the temperature is to high it will spray the water by itself to cooling the cutter,“RKC” temperature controller French Schneider AC contactor
