Warranty: | 3 years; | Model Number: | BDX600; |
Port: | Shanghai port; | Supply Ability: | 30 Set/Sets per Month; |
Type: | electrical; | Alarm: | Sound+light; |
Application: | Detect metal from waste plastic; | Brand Name: | sevenstars; |
Place of Origin: | Jiangsu China; | Color: | Customized; |
Detection depth: | 0-400m; | Weight: | 80kg; |
Payment Terms: | L/C,Western Union,D/P,T/T; | Packaging Detail: | wooden pallet and plastic film; |
Product name: | Metal Detector; | Certificates: | CE. ISO; |
metal detector and conveyor
Metal detector is installed on conveyor and it is are specially design for PET bottle and PE PP film recycling production line
Type |
4012 |
4015 |
4020 |
4023 |
4028 |
5020 |
5025 |
sensitivity Fe¢ mm |
0.8 |
1.0 |
1.3 |
1.5 |
2.0 |
1.5 |
2.0 |
Sensitivity SUS¢ mm |
1.5 |
2.0 |
2.5 |
2.5 |
3.5 |
3.0 |
3.5 |
Detect height (mm) |
120 |
150 |
200 |
230 |
280 |
200 |
250 |
Detect width(mm) |
400 |
400 |
400 |
400 |
400 |
500 |
500 |
Power(W) |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
Convey speed (m/min) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
alarm method |
Alarm stop/reject setting (optional) |

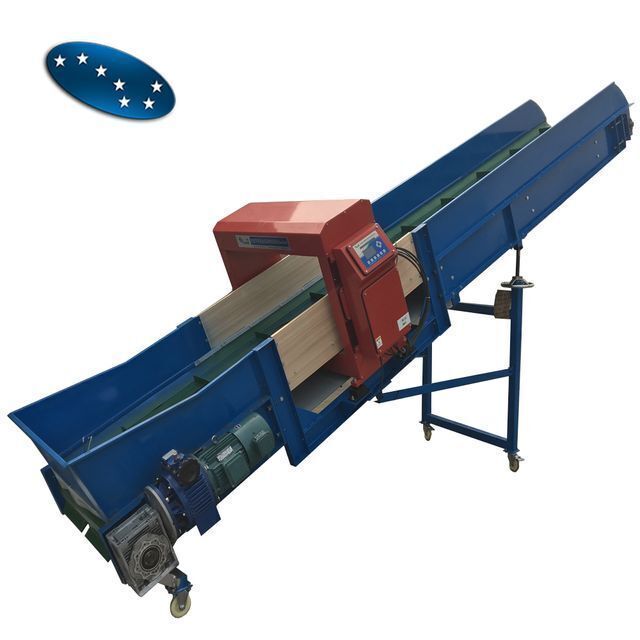

Machine photos
