2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on
-
Supplier: Wuhan Guide Sensmart Tech Co., Ltd. -
Region: Hubei, China -
Contact: Ms Daisy Li -
Price: $2799.00 / 1 - 9 sets
$2379.00 / 10 - 99 sets
$2139.00 / >=100 sets -
Min. Order: 1 set
Product details
| Model Number: | TA425/TA435/TA450; | Photo: | YES; |
| Package Preview: | ; | Type: | Riflescope; |
| WIFI: | YES; | Certification: | CE,ROHS,FCC; |
| Operating Voltage: | <5mV; | Port: | WUHAN; |
| Packaging Detail: | Standard Export Package; | Brand Name: | Guide; |
| Effective Visual Distance: | 2400M; | Focal Length: | 25mm/35mm/50mm; |
| Encapsulation: | IP66,1-meter drop test; | IR Resolution: | 400*300; |
| Size: | 15*5.2*5.7; | Payment Terms: | L/C,Western Union,T/T,MoneyGram,Trade Assurance; |
| Warranty: | 2 years; | Place of Origin: | Hubei, China; |
| Magnification: | 4X; | Function: | Thermal Monocular & Thermal Riflescope; |
| Dosplay: | 1024*768; | Weight: | 400g; |
| Customized support: | OEM,ODM; | Frame Rate: | 50Hz; |
| Product name: | Thermal Scope Attachment; | Supply Ability: | 10000 Sets per Month; |
| Video: | YES; |
Products Description
2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on

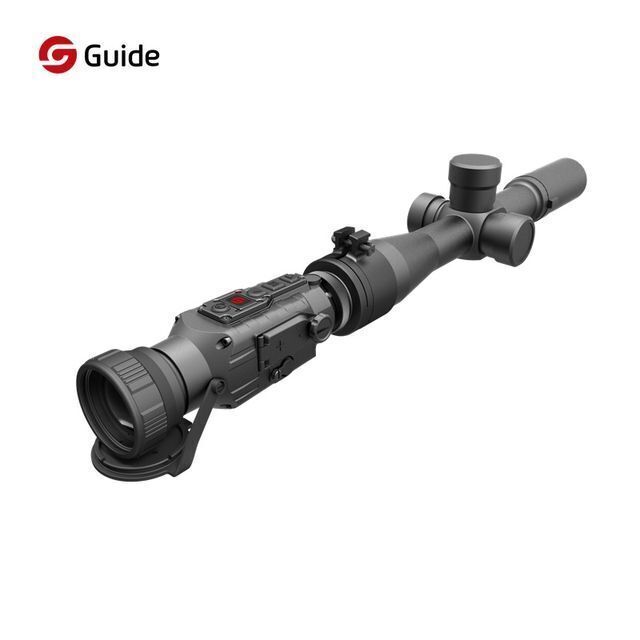

Guide TA435 TA450 Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager.It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.
Main Features of 2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on
* Simple & Adaptable: Switchover among five scene modes by one button, truly realizing all-weather environment self-adaptation
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)
2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on
Product Paramenters
Model | TA435 | TA450 | ||
Detector | ||||
Detector Type | 400×300 @17μm, VOx | |||
Spectral | 8μm～14μm | |||
NETD | ≤50mk | |||
Focus lens | ||||
Focal Length | 35mm F1.2 | 50mm F1.2 | ||
Focusing | Manual focus | |||
FOV | 10.66°×8.0° | 7.5°×5.6° | ||
Display system | ||||
OLED | Colorful 0.39 inch OLED screen 1024×768 | |||
Eyepiece | Monocular, Pupil Distance 10mm, Pupil Caliber 20mm | |||
Digital Zoom | 1 | |||
Image Processing | ||||
Frame Rate | 50Hz（PAL） | |||
Digital Zoom | 2×,4× | |||
Auto Tracking | Hotspot track | |||
Calibration | Automatic calibration/ Manual calibration (shutter) /Manual scene compensation | |||
Scenes Modes | Enhanced, Highlight, Natural | |||
Color Palettes | Black hot, white hot, red hot, green hot | |||
Contrast/Brightness | Adjustable | |||
Power Systems | ||||
Battery | CR123A×2/ICR16340×2 | |||
Power Supply | can be powered by 5V2A external power supply | |||
Interface | ||||
7-Pin LEMO Interface | Support video output and external power supply | |||
Environment parameter | ||||
Operating Temperature | -30°C-50°C | |||
IP level | IP67 | |||
Certificate | RoHS Certificate/CE Certificate/FCC Certificate | |||
Physical Characteristics | ||||
Weight | ≤400g | ≤450g | ||
Size | 150mm×52mm×57mm | 178mm×58mm×62mm | ||
Package | ||||
Standard | Blinder, Carrying bag, Charger, User manual, 7-Pin Lemo to USB cable, Warranty | |||
Optional | External eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery, Bluetooth remote controller, Picatinny rail, Charger, Video cable (two in one, power supply & video output | |||
Detection Range | ||||
Human：1.8m×0.5m | 1000m | 1400m | ||
Vehicle：2.3m×2.3m | 2400m | 3000m | ||
Recognition Range | ||||
Human：1.8m×0.5m | 500m | 700m | ||
Vehicle：2.3m×2.3m | 1000m | 1400m | ||
Company Profile
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal imaging industry.
Market Share
NO. 2 market share in the global commercial infrared thermal imaging products markets according to Yole report.
Reliable
Guide's self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.
Transport
FAQ
1. Are you the manufacturer or trading company?
A: We, Guide Sensmart, design, develop, manufacture, and distribute the infrared-related products around the world.We are NO.1 manufacturer of commercial thermal imaging devices in China with an annual production capacity of over 500,000 units.
2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification and more.
Furthermore, we have over 216 patents so far.
3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.
4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
5. What is the shipping method?
A: Usually shipped by express(DHL, FEDEX UPS and etc).
6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.
7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.
8. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.
For other questions about 2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on we will reply you as soon as possible while receiving your inquiry.
A: We, Guide Sensmart, design, develop, manufacture, and distribute the infrared-related products around the world.We are NO.1 manufacturer of commercial thermal imaging devices in China with an annual production capacity of over 500,000 units.
2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification and more.
Furthermore, we have over 216 patents so far.
3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.
4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.
5. What is the shipping method?
A: Usually shipped by express(DHL, FEDEX UPS and etc).
6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.
7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.
8. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.
For other questions about 2-In-1 Guide Thermal Scope Attachment Thermal Image Viewer Thermal Clip On In Night Vision Thermal Clip On Riflescope Clip-on we will reply you as soon as possible while receiving your inquiry.
