Guide TrackIR 25mm Handheld thermal imaging scope with IP66 waterproof

  • Supplier: Wuhan Guide Sensmart Tech Co., Ltd.
  • Region: Hubei, China
  • Contact: Ms Daisy Li
  • Price: $1599.00 / 1 - 9 sets
    $1279.00 / 10 - 99 sets
    $950.00 / >=100 sets
  • Min. Order: 1 set
Click here to contact
Product details
Built-in Photo/Vidwo:YES;Battery Working Time:>5 Hours;
Operating Voltage:5v;Display:1280*960;
Encapsulation:IP66,1-meter drop test;Port:WUHAN;
Place of Origin:Hubei, China;Payment Terms:L/C,Western Union,T/T,MoneyGram,ali trade assurance;
Model Number:TrackIR TK25;Customized support:OEM,ODM;
Supply Ability:10000 Sets per Month;Certification:CE,ROHS,FCC;
Digital Zoom:1X~4X (Smooth zoom);Package Preview:;
Packaging Detail:Standard Export Package;Brand Name:Guide;
Weight:470g;Focus:25mm;
Type:Monocular;Product Name:Handheld thermal imaging scope;
Detector Type:400*300@17μm;Warranty:2 years;
Wifi & Mobile App:YES;Magnification:1-4x;
Frame Rate:50HZ;Size:19.2*6.5*7.1;
Effective Visual Distance:2000 meters;
Products Description

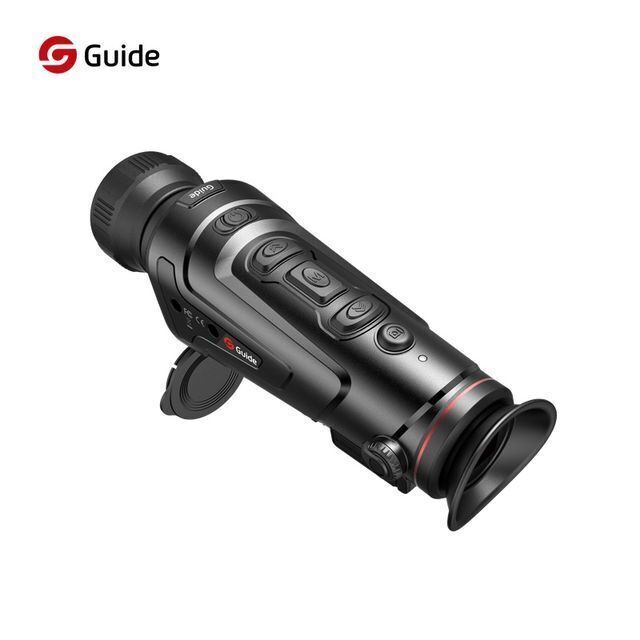

Guide TrackIR 25mm Handheld thermal imaging scope with IP66 waterproof
Guide TrackIR is Guide’s new launched handheld thermal imaging monocular designed for professional hunters.
With 1280*960 HD display, it provides adaptable and excellent thermal imaging in any conditions.
Support smooth zoom, built-in stadiametric rangefinder, image quality adjustment, picture-in-picture functions.
At a high frame rate of 50Hz, TrackIR captures sharp thermal imaging throughout dynamic and rapid motion in distance.
TrackIR also supports connecting accessories to realize more functions.
Main Features of Guide TrackIR 25mm Handheld thermal imaging scope with IP66 waterproof
* 1280×960 HD display for better comfort of viewing
* >5 hours battery working time * Mobile-friendly APP for Remote Control and Steaming
* User-friendly UI with quick menu, easy to operate
* Multiple Color Palettes for good vision in diverse conditions
* Support smooth zoom, built-in stadiametric rangefinder and more
* Can connect external mobile power supply and more

Guide TrackIR 25mm Handheld thermal imaging scope with IP66 waterproof
Product Paramenters
Model
TrackIR 25mm
TrackIR 35mm
TrackIR 50mm
Detector
Detector Type
400×300 @17μm, VOx
Spectral
8μm～14μm
NETD
≤50mk
Lens
Focal Length
25mm/F1.1
35mm/F1.2
50mm/F1.2
Focusing
Manual Focus
FOV
15.4°×11.6°
11.1°×8.3°
7.8°×5.8°
Display
Screen
1280×960 , 0.4 inch，Color LCOS Display
Eyepiece
Monocular, Exit pupil≥10mm, Adjustable diopter-4~＋2
Magnification
1.7~6.8
2.3~9.2
3.3~13.2
Imaging
Frame Rate
50Hz
Digital Zoom
1X~4X (Smooth zoom)
Color Palettes
White Hot, Black Hot, Iron Red, Blue Hot, Red Hot
Picture-in-picture
Picture-in-picture enlarged image is displayed on the upper left, upper middle or upper right
Functions
Yes
Yes
Yes
Video
Yes
Yes
Yes
Hotspot tracking
Yes
Yes
Yes
Stadiametric rangefinder
Yes
Yes
Yes
Wi-Fi/APP
Wi-Fi share photo and video, also can controlled by app（IOS & Android）
Power Supply
Battery Type
Internal Li-ion battery (2x18650, 6000mAh)
Working Time
≥5h
Interface
USB
TYPE C (USB 2.0 standard ) for charging, data tranmission
Video Output
Micro HDMI
External Connection
External Connection by a Picatinny rail
Memory Card
16 GB
Environmental Characteristics
Operating Temperature
-10°C～50°C
Storage Temperature
-30°C～60°C
Encapsulation
IP66，1-meter drop test
Certificate
UN38.3 (Battery certificate), RoHS, CE, FCC, EAC
Weight & Dimensions
Weight
470g
485g
535g
Dimensions
192mm×65mm×71mm
214mm×65mm×71mm
Package Contents
Standard
Power adapter,USB cable,Micro HDMI cable,Lens cover,Wrist strap,
Shoulder strap,Lining package,Quick Start Guide
Optional
External Picatinny rail, External screen and etc…

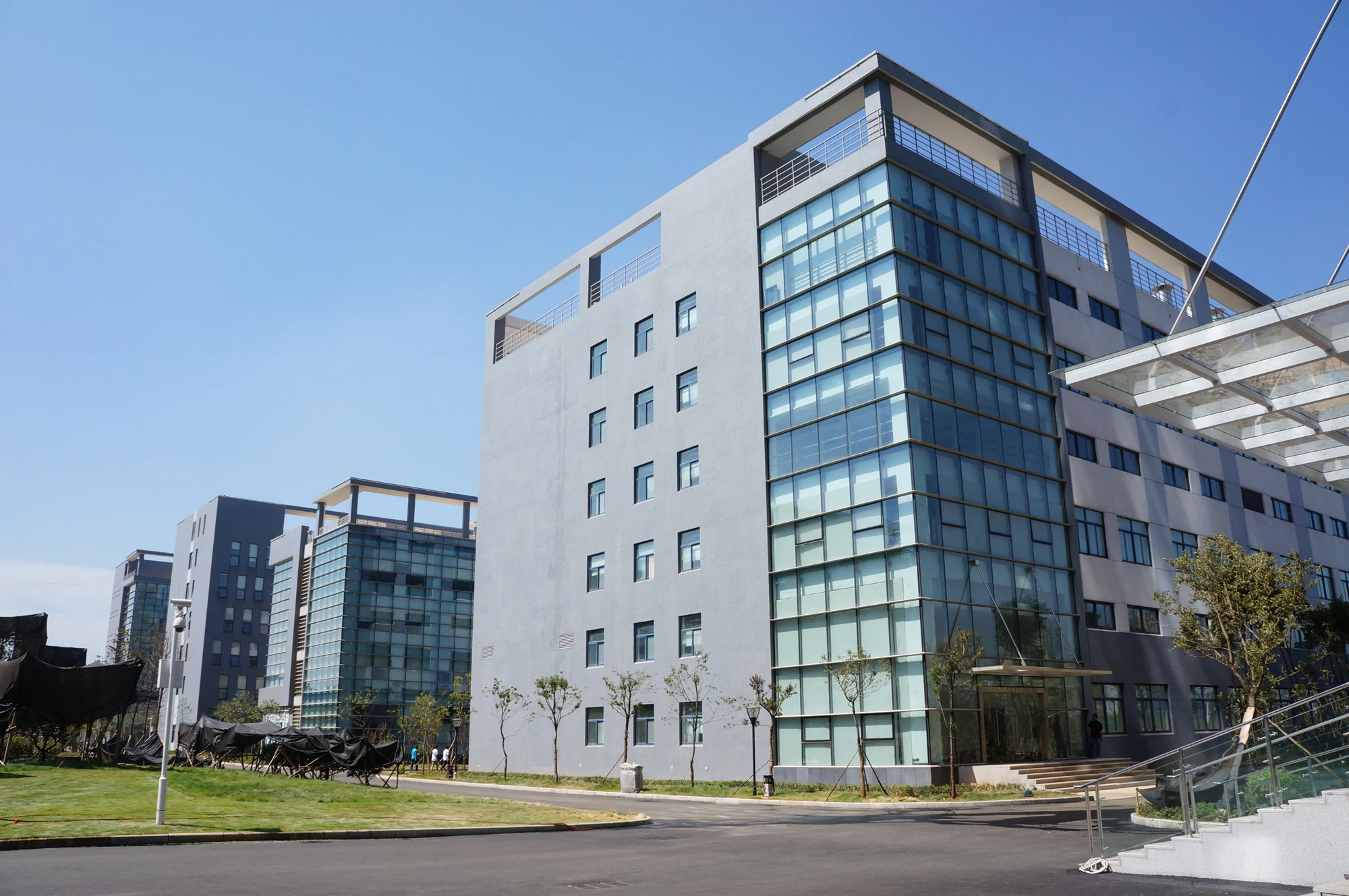

Company Profile
Wuhan Guide Sensmart Tech Co., Ltd.
Guide Sensmart is the subsidiary of Guide Infrared (SZ.002414), the world leading infrared thermal imaging systems manufacturer.Thanks to our group company’s 20 years experience in the infrared industry and mass production capacity, Guide Sensamrt designs and delivers high quality, affordable thermal imaging products across the globe at scale quantity, with the mission to make thermal imaging benefit everyone in the daily work and life.

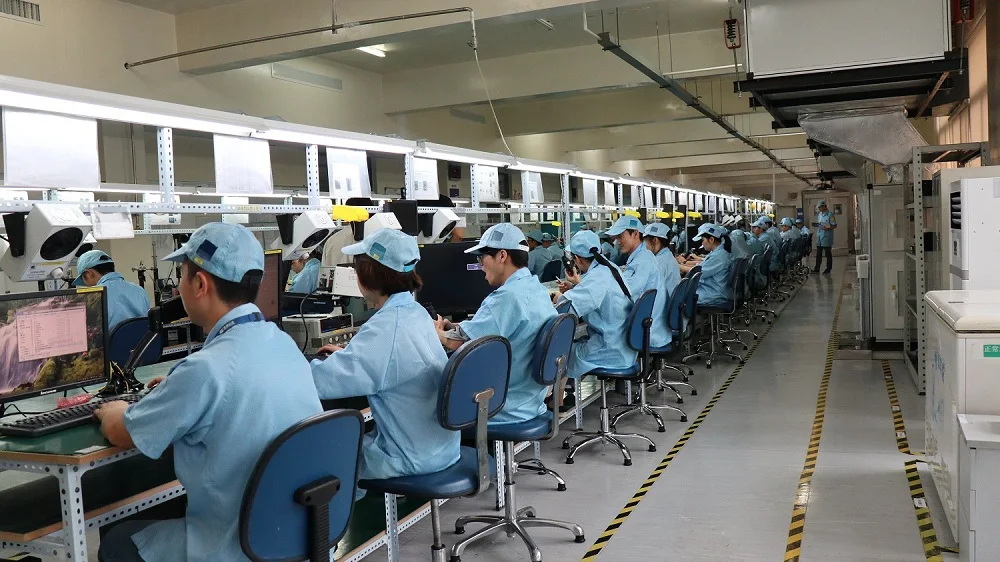

Thanks to the advantage of low cost and mass production brought by Guide’s self-developed IR detectors, Guide Sensmart developed a wide range of infrared thermal imaging products with an annual production capacity of 500,000 units, including industrial thermal cameras, IR fever warning systems, thermal imaging scopes, thermal binoculars and more.

Guide Sensamrt has always adhered to the innovation on thermal imaging technology. So far, the company has over 216 patents, and is honored to be the High-tech Enterprise supported by the state. In the overseas market, Guide Sensmart has developed over 300 long-term partners and established sales and service network in more than 70 countries and regions around the world.
Why Choose Us
Professional
We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years' experience in infrared thermal imaging industry.
Market Share
NO. 2 market share in the global commercial infrared thermal imaging products market by Yole report.
Reliable
Guide's self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.
Best Servie
We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.
Verified Supplier
Guide Sensmart is officially verified by alibaba.com
Trade Assurance
Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.

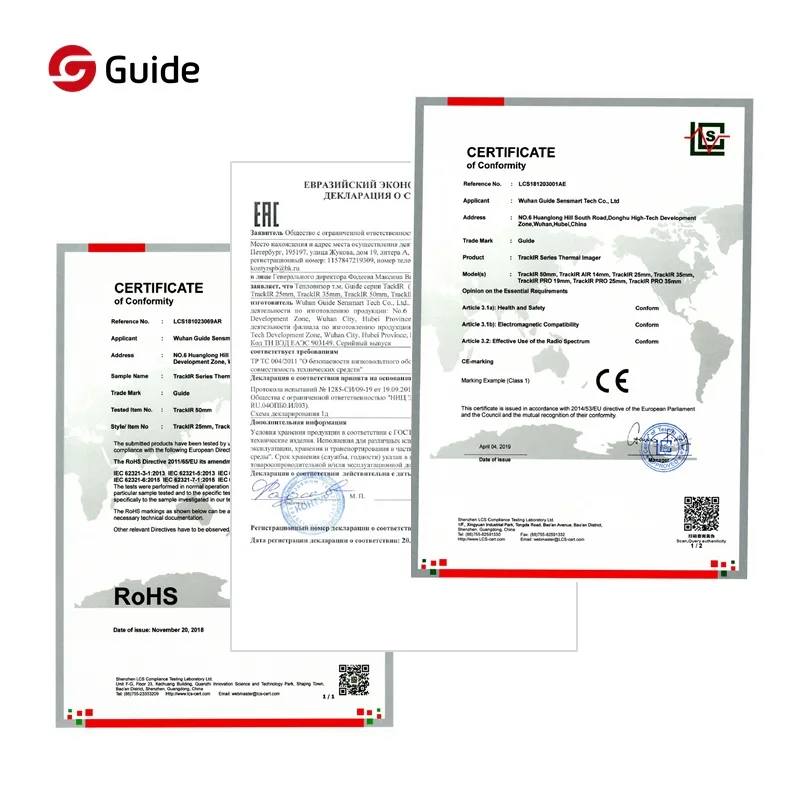

Certifications
Exhibition
FAQ
1. Are you the manufacturer or trading company?
A: We are the leading global manufacturer of consumer thermal imaging devices with an annual production capacity of 500,000 units.

2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification.
So far, we have over 216 patents.

3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.

4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.

5. What is the shipping method?
A: Usually shipped by express(EMS, UPS, DHL, FEDEX and ect). Please confirm with us before placing orders.

6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.

7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.

8. Do you accept OEM?
A: Yes, it depends on the quantity.

For other questions we will reply you as soon as possible while receiving your inquiry.
