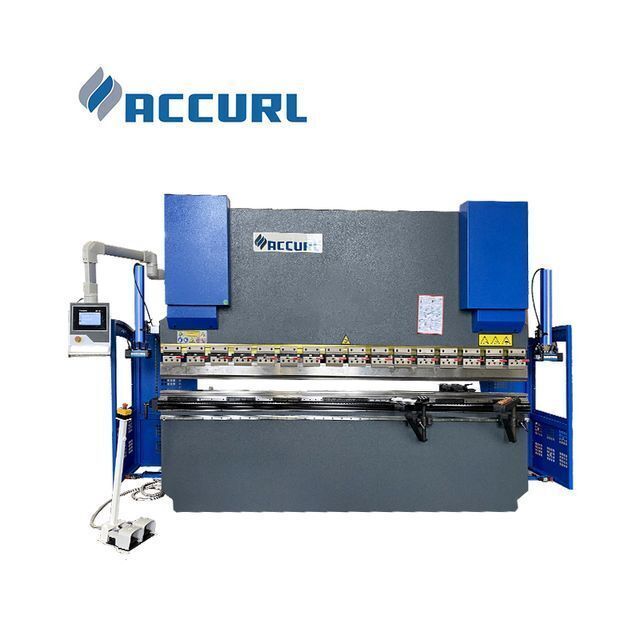

200Ton 3200mm Accurl NC Hydraulic Press Brake with fast bending speed and high accuracy

Click here to contact
Product details
CNC Control system:DELEM DA41T CNC System;Core Components:Bearing,Motor,Pump;
Length of Working Table (mm):3200;After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Online support;
Dimension:3580*2100*2950mm;After Warranty Service:Video technical support,Online support;
Brand Name:AccurL;Key Selling Points:Sustainable;
Marketing Type:New Product 2020;Material / Metal Processed:Brass / Copper,stainless steel,ALLOY,Carbon Steel,Aluminum;
Supply Ability:60 Sets per Month;Motor Power (kw):11 kw;
Place of Origin:Anhui, China;Throat Depth (mm):350 mm;
Application:Stainless Plate Bending;Package Preview:;
Certification:CE&ISO;Machine Type:Press Brake,Torsion Bar;
Weight (KG):7300;Automation:Automatic;
Extra Services:End Forming;Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;
CNC Control Axis:Y X axis Crowning(Electro-hydraulic servo);Motor Power:Siemens from Germany;
Hydraulic System:Bosch-Rexroth from Germany;Warranty of core components:3 years;
Local Service Location:Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Japan,Malaysia,Australia,Morocco,Argentina,South Korea,Chile,Colombia,Romania,South Africa;Packaging Detail:wooden package or can be adjust for the machine's safety;
Slider Stroke (mm):230 mm;Video outgoing-inspection:Provided;
Machinery Test Report:Provided;Warranty:1 Year;
Ball screw/ Polished rod:HIWIN from TaiWan Brand;Width of Working Table (mm):220 mm;
Automatic Level:Semi-automatic;Port:Shanghaiport;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Year:2020;
Showroom Location:Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Morocco,Argentina,South Korea,Chile,Colombia,Romania,South Africa,Japan,Malaysia,Australia;Raw Material:Sheet / Plate Rolling;
Condition:New;Electrical components:Schneider Electrical from French;
Products Description
ACCURL DA41S NC PRESS BRAKE
ACCURL® Easy Bend B Series Hydraulic NC Press Brake Machine is our most popular model by volume and a true workhorse. The studies made on the framework flections have allowed us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage.Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds.
Details Images
DELEM DA41s CNC CONTROL UNIT
ACCURL®has chosen the very powerful new generation DELEM DA41s offers an higher level of efficiency in programming and control of press brakes. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.
The DA-41s control provides a complete solution for conventional press brake applications for 2 axes.Offering a versatile solution for axes control for the press beam and back gauge as well as a flexible I/O configuration, based on the state of the art electronics.
DELEM DA41s NC System Features:
•Bright LCD display 320 x 240
•Angle & Tool programming
•CNC Back gauge control
•Developed length calculation
•Up to 25 bends per program
•Servo, frequency inverter and AC control
•The basic machine control functions are Y ,X-axis.
HYDRAULIC SYSTEM
Germany Bosch-Rexroth integrated hydreulic system block, hydraulic transmission with high reliablity, integrated hydreulic system
can effectively alleviate problems caused by leakag of hydraulic fluid.
BGA-1 CNC BACKGAUGE
ACCURL® press brake are provided are equipped with BGA-1 CNC backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
•X-Axis with HIWIN linear guide and Ball Screw.
•Manual Z1,Z2-axis with linear guide .
•Driven by DELTA Servo Motors and drives
•Less noise, greater durability and greater precision.
ACCURL QUICK CLAMP SYSTEM
• safe and fast tool change • substantial improvement in time consumption and related costs • Secure against tool falling down •
Available in manual, pneumatic and hydraulic models. • Mounting: Simply from the bottom into the housing, tighten-DONE! • Easy to
mount on your press brake.Modify cation of the press brake is not necessary.
DSP LASER SAFETY SYSTEM
ACCURL® Press Brake Standard with DSP visible laser protection compliant to EN12622 regulation. The beam protects the press brake
operator from the danger of being crushed between upper & lower tool.
•The most advanced laser systems
•Box-shaped part bending feature
•Innovative tooling grid guarding pattern
•Completely foot peddle controlled operation
•Auto-blanking for automatic box and side wall detection
•Type 4 patented process control
•"Safe Release" supports are unhooked without damages in case of collision

TECHNICAL SPECIFICATION
Name
Unit
PRESS BRAKE AC‐MB7-100Tx3200
Bending force
ton
100
Bending length
mm
3200
Distance between columns
mm
2550
Stroke((Y-axis) NC‐controlled stroke axes)
mm
120
Daylight
mm
380
Throat Depth
mm
320
Bed Height
mm
800
Bed Cap Width
mm
80
Y-axis advance speed
mm / sec
120
Y-axis working speed
mm / sec
10
Y-axis return speed
mm / sec
100
X-axis BackGauge Speed
mm / sec
150
X-axis BackGauge Travel
mm
600
X-axis BackGauge Precision
mm
0.01
Gaugeable with 3rd Position
mm
850
Workpiece straightness
mm
0.6 /m
Bending angle accuracy
(′)
<±50
Sliding Front Arms
pcs
2
Backgauge Finger Block
pcs
3
Motor Power
kw
7.5
Oil Tank Capacity
lt
260
Crowning System
‐
/
Length
mm
3500
Width
mm
1650
Height
mm
2350
Weight
kg
7350
  More types press brake, please contact us, will give you best solution
