Selling Units: | Single item; | With Modem Function: | NO; |
Wi-Fi Supported Frequency: | 2.4G & 5G; | SIM card slot: | 1 SIM Card Support; |
Intelligent WEBUI: | SMS, APN Mgmt, WIFI Mgmt, Router Mgmt, Safety Mgmt; | Standards And Protocols: | Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n; |
Brand Name: | Smilembb; | Supports WDS: | No; |
Wi-Fi Transmission Standard: | 802.11n; | WIFI: | IEEE 802.11 b/g/n/, 2.4GHZ 2T2R WLAN; |
Supports WPS: | No; | Interface: | 1*RJ45 or 2 * RJ45, 1*RJ11 ,1*2FF USIM/SIM;Type-C USB; Input Port; |
Product name: | LTE CAT4 CPE; | Package Preview: | ; |
Products Status: | New; | Encryption Type: | WPA2-PSK,WPA2,WPA-PSK; |
Max. LAN Data Rate: | 300Mbps; | Application: | Broadband; |
2.4G Wi-Fi Transmission Rate: | 1200 Mbps; | Place of Origin: | Guangdong China; |
LAN Ports: | 4; | Type: | Wireless; |
Single package size: | 53.5X33X31 cm; | Single gross weight: | 2.0 KG; |
Introduction
XRC5242, LTE CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in LTE CAT4, WIFI 4 Hotspot, Ethernet WAN/LAN and Web-UI management. It supports TR069 remote management and FOTA.
Highlights
Technical parameter |
|
chip platform |
ZX297520V3E+RTL8192ES |
Frequent band |
XRC5242CN: FDD-LTE B1/B3/B5/B8; TDD-LTE B38/B39/B40/B41; WCDMA B1/B5/B8 XRC5242EA1: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B38/B41; WCDMA B1/B5/B8 XRC5242EA2: FDD-LTE B1/B3/B5/B7/B8/B20; TDD-LTE B40; WCDMA B1/B5/B8 XRC5242SA1: FDD-LTE B2/B4/B5/B7,B28A/B, TDD-LTE B40; WCDMA B2/B5 XRC5242SA2: FDD-LTE B1/B3/B7/B8/B28A/B; TDD B40; WCDMA B1/B8 XRC5242SA3: FDD-LTE B2/B4/B5/B7/B28A/B,B66; TDD-LTE B40; WCDMA B2/B5 |
Protocol Version |
4G: 3GPP R9 Cat4 + 3G: 3GPP R7 |
LTE Speed |
LTE FDD: DL 150 Mbps, UL 50 Mbps |
Wi-Fi Standard |
802.11b:Up to 11 Mbps |
Size |
200*130*33mm |
Weight |
270g±5g |
Power supply |
12V/1A |
Physical interface |

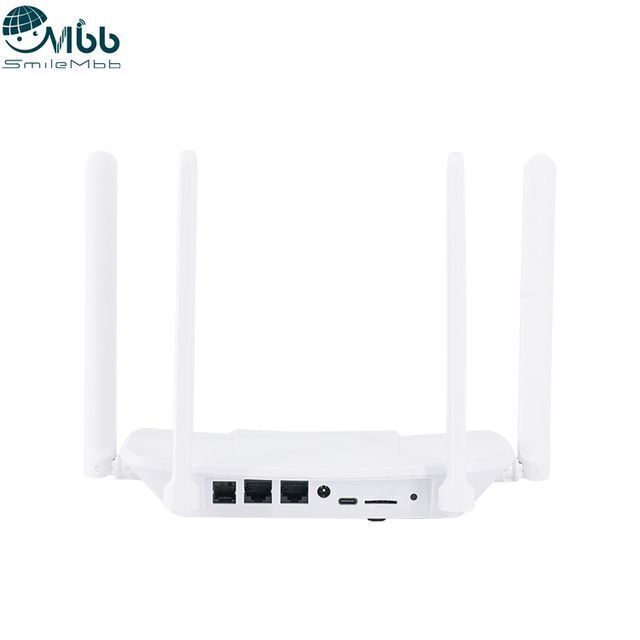

1*RJ45 or 2 * RJ45(10/100Mbps), 1*RJ11 , 1*2FF USIM/SIM; 1*Type-C USB; 1*DC Input Port |
LED |
POWER , WAN , LAN , WiFi , 4G, RJ11 |
Button |
WPS;Reset |
Characteristic |
VPN Pass-Through Support (PPTP, L2TP & IPSec), Firewall, Local & Remote management |
Product interface
1.Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2.Do you provide firmware customization?
Sure thing, we have our own strong firmware development team.
3.Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
